Giving bag automatic seaweed kimchi olives cat food mixed material pickles packing machine

Giving bag automatic seaweed kimchi olives cat food mixed material pickles packing machine

FOB Reference Price: Get Latest Price

≥1 Sets

US $13590

≥3 Sets

US $6500

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Weight (KG):: 350

Voltage:: 220/380

Place of Origin:: Guangdong, China

Brand Name:: TOP Y MACHINERY

Dimension(L*W*H):: 195*65*150cm

Series:: Multi-function packaging machines

Machine:: mini doypack machine

Pouch Width:: 70-330mm

Pouch Length:: 80-440mm

Weigher:: linear weigher, piston pump

Material:: Stainless Steel 304/316

Packing speed:: 6-16 Bags/Min

Bag type:: stand up pouch, zipper bag, box pouch

Control:: PLC

Quick Details

Function:: FILLING, Wrapping, Labeling, Sealing

Packaging Type:: Stand-up Pouch, Bags, Pouch

Packaging Material:: Plastic, Wood

Weight (KG):: 350

Voltage:: 220/380

Place of Origin:: Guangdong, China

Brand Name:: TOP Y MACHINERY

Dimension(L*W*H):: 195*65*150cm

Series:: Multi-function packaging machines

Machine:: mini doypack machine

Pouch Width:: 70-330mm

Pouch Length:: 80-440mm

Weigher:: linear weigher, piston pump

Material:: Stainless Steel 304/316

Packing speed:: 6-16 Bags/Min

Bag type:: stand up pouch, zipper bag, box pouch

Control:: PLC

Products Description

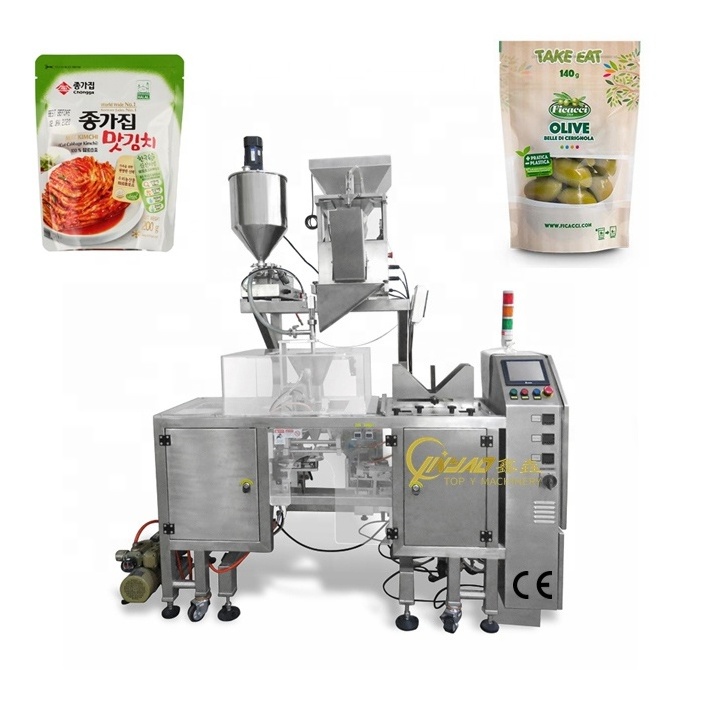

Mixed Material Weighing and Packing Solution

Combine with the linear weigher and piston pump, this system can handle mixed material, like olive and oil, olive and salt water, pickles and sauce, etc.
Weighing accuracy: 0.2-2g
Speed: 8-16bags/min
(also we have faster machine can reach up to 30bags/min)
Material: Full SS#304(food grade)
Bag dimension: adjustable

Automatic weighing and packing system for your current and future needs! The functions of the packing system mainly are conveying, weighing, filling and bag sealing. Realize automatization, save labor and increase the output.

Machine Series	Mini Doy-Pack Machine
Model No.	TOPY-MDP1	TOPY-MDP2	TOPY-MDP3
Bag Width	70-280mm	70-280mm	70-330mm
Bag Length	80-320mm	80-440mm	80-440mm
Bag Type	Doypack with zipper, ¾ side seal pouch, stand-up pouches,flat pouch, gusset bags,side spout bag,etc.
Power Supply	110V/220V/380V/415V, 50/60HZ
Air Consumption	7.0 CFM@80 PSI 0.14m3/m3
Pneumatic Parts	PIAB Vacuum Generator, Pneumatics component Airtac from Taiwan
Certification	CE, CSA, UL, ROHS, ISO9001

Function and characteristics:
1. Easy to operate,The packaging process is fully automated without manual operation.
2. Automatic checking: no pouch or pouch open error, no fill, no seal, avoid wasting.

3. Safety device: Machine stop at abnormal airpressure, heater disconnection alarm.
4. Adjustable bag width.
5. Glass safety door: It will stop working when you open the door, ensure the safety of operators.
6. Low loss of packing materials, high quality of the sealing part, to improved the product specification.
7. Different feeding hoppers: for solid, liquid, thick liquid ,powder and so on.
8. Bag materials: Suits in extensive range.

Optional Bag Types

Doypack machine is suitable for all kinds of the premade bags, such as stand up pouch, zipper bag, box pouch, kraft paper bags, corner spout bags and so on.
