Quick Details
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
PrimoPal
-
Model Number:
-
PBLH42BS
-
Torque:
-
0.1~0.3N.m
-
Product Name:
-
8v 31w small high brushless dc motor
-
Phase:
-
3
-
Rated Voltage:
-
48VDC
-
Rated power:
-
31~94w
-
Rated Speed:
-
3000rpm
-
Length:
-
60~100mm
-
Weight:
-
0.4~1.3kg
-
Frame size:
-
42x42mm
-
Ambient Temperature:
-
-20 °C ~ +50 °C
-
Winding Connection:
-
Star
Quick Details
-
Speed(RPM):
-
3000RPM
-
Continuous Current(A):
-
0.87~2.61A
-
Efficiency:
-
Ie 3
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
PrimoPal
-
Model Number:
-
PBLH42BS
-
Torque:
-
0.1~0.3N.m
-
Product Name:
-
8v 31w small high brushless dc motor
-
Phase:
-
3
-
Rated Voltage:
-
48VDC
-
Rated power:
-
31~94w
-
Rated Speed:
-
3000rpm
-
Length:
-
60~100mm
-
Weight:
-
0.4~1.3kg
-
Frame size:
-
42x42mm
-
Ambient Temperature:
-
-20 °C ~ +50 °C
-
Winding Connection:
-
Star
Product Features
Description

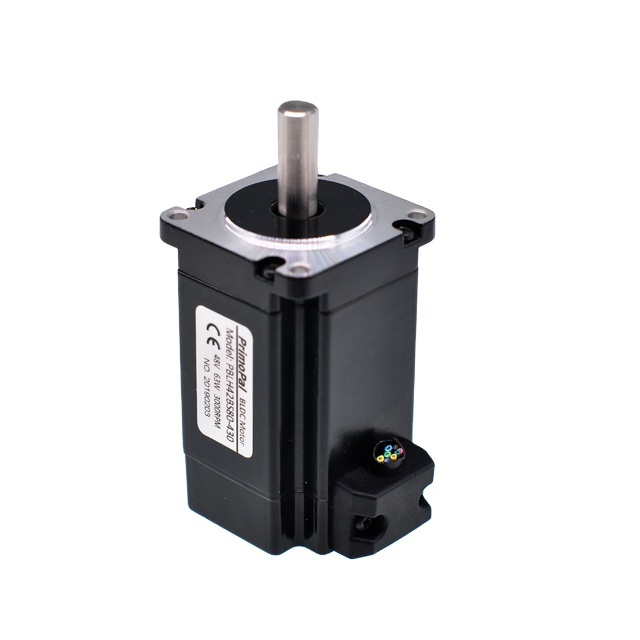

PrimoPal’s PBL series
brushless DC motors
offer high performance, long life and low maintenance for applications requiring stable velocity control over a wide speed range, with frame size ranging from 42mm (NEMA 17) to 110mm (NEMA 42).
These 3-phase and 8-pole brushless motors are provided with hall signals for commutation and velocity loop feedback. Three designs are available to optimize your application’s performance with best cost-effective solution, which are
transmission type, high torque type and high efficiency type
. In addition to our standard models, custom-design brushless DC motors with a comprehensive accessory line of encoders, brakes, planetary and right angle gear reduction to meet your specific application needs.
Motor Customized Specification, Please Contact Us.
|
Model
|
PBLT42BS58-230
|
PBLT42BS78-230
|
PBLT42BS98-230
|
|
No. of Phases
|
3
|
3
|
3
|
|
No. of Poles
|
8
|
8
|
8
|
|
Rated Voltage (VDC)
|
24
|
24
|
24
|
|
Rated Power (W)
|
31
|
63
|
94
|
|
Rated Current (A)
|
2.0
|
4.0
|
6.0
|
|
Peak Current (A)
|
6.0
|
12.0
|
18.0
|
|
Rated Torque (N.m)
|
0.1
|
0.2
|
0.3
|
|
Peak Torque (N.m)
|
0.3
|
0.6
|
0.9
|
|
Rated Speed (rpm)
|
3000
|
3000
|
3000
|
|
Rotor Inertia (g.cm2)
|
37
|
42
|
49
|
|
Torque Const. (N.m/A)
|
0.05
|
0.05
|
0.05
|
|
Back EMF Const. (V/Krpm)
|
5.235
|
5.235
|
5.235
|
|
Line-Line Resistance (Ω)
|
1.5
|
0.9
|
0.5
|
|
Line-Line Inductance (mH)
|
1.3
|
0.6
|
0.3
|
|
Length (mm)
|
58
|
78
|
98
|
|
Weight (kg)
|
0.4
|
0.9
|
1.3
|
