Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
LIHAN
-
Model Number:
-
lihan
-
Type:
-
new
-
Application:
-
Motor
-
Rated power:
-
5.5kw
-
Brand:
-
LIHAN
-
Voltage:
-
220V/380V
-
Inverter type:
-
High Frequency Intelligent Inverter
Quick Details
-
Rated Power:
-
1.5/2.2/3/4/5.5kw
-
Nominal Voltage:
-
220v/380v
-
power phase number:
-
3
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
LIHAN
-
Model Number:
-
lihan
-
Type:
-
new
-
Application:
-
Motor
-
Rated power:
-
5.5kw
-
Brand:
-
LIHAN
-
Voltage:
-
220V/380V
-
Inverter type:
-
High Frequency Intelligent Inverter

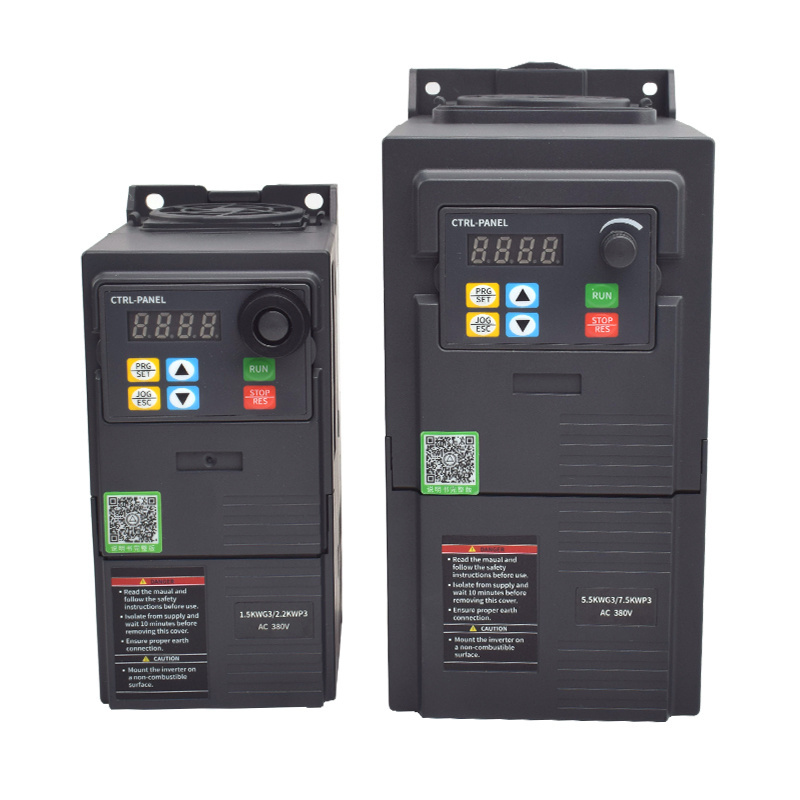

A Variety Models Complete 0.75kw-11kw VFD Frequency Inverter
Product Paramenters
|
Model
|
Power
|
Input
|
Output current
|
Overall dimension L*W*H(mm)
|
Installation dimensions L*W （mm）
|
|
LH320-0.75G3
|
0.75kw
|
3P AC 340-440V 50-60Hz
|
2.1A
|
170*79*127
|
160*60.5-M5
|
|
LH320-1.5G3
|
1.5kw
|
3P AC 340-440V 50-60Hz
|
3.8A
|
170*79*127
|
160*60.5-M5
|
|
LH320-2.2G3
|
2.2kw
|
3P AC 340-440V 50-60Hz
|
5.1A
|
187*86*144
|
173*68-M4
|
|
LH320-3.0G3
|
3.0kw
|
3P AC 340-440V 50-60Hz
|
7.1A
|
187*86*144
|
173*68-M4
|
|
LH320-4.0G3
|
4.0kw
|
3P AC 340-440V 50-60Hz
|
9A
|
216*101*151
|
204*83.5-M4
|
|
LH320-5.5G3
|
5.5kw
|
3P AC 340-440V 50-60Hz
|
12.6A
|
216*101*151
|
204*83.5-M4
|
|
LH320-7.5G3
|
7.5kw
|
3P AC 340-440V 50-60Hz
|
16.1A
|
237*111*168
|
221*93.5-M5
|
|
LH320-11G3
|
11kw
|
3P AC 340-440V 50-60Hz
|
24A
|
249*143*172
|
237*130-M5
|
Operation panel and operation methods：
Steps to return to the original interface after setting the parameters:
1. Power itoff and power it on again.
2. Select parameter d-00, and then press SET button.
3. Long press SET button. Display output frequency after power on
