Quick Details
-
Model Number:
-
pu spiral tube
-
Specification:
-
ID:5-11mm
-
Length:
-
2-15M, 2-15M
-
Thickness:
-
N/A
-
Standard:
-
ISO9001
-
Color:
-
Green
-
CAS NO.:
-
3926.90-8
-
Hardness shore A:
-
98A
-
PU TYPE:
-
POLYESTER & POLYETHER BASE
-
ID:
-
5-11mm
-
OD:
-
8-16mm
Quick Details
-
Processing Service:
-
Cutting
-
Place of Origin:
-
Taiwan, China
-
Brand Name:
-
TPUCO
-
Model Number:
-
pu spiral tube
-
Specification:
-
ID:5-11mm
-
Length:
-
2-15M, 2-15M
-
Thickness:
-
N/A
-
Standard:
-
ISO9001
-
Color:
-
Green
-
CAS NO.:
-
3926.90-8
-
Hardness shore A:
-
98A
-
PU TYPE:
-
POLYESTER & POLYETHER BASE
-
ID:
-
5-11mm
-
OD:
-
8-16mm
Product Description
Our Advantages

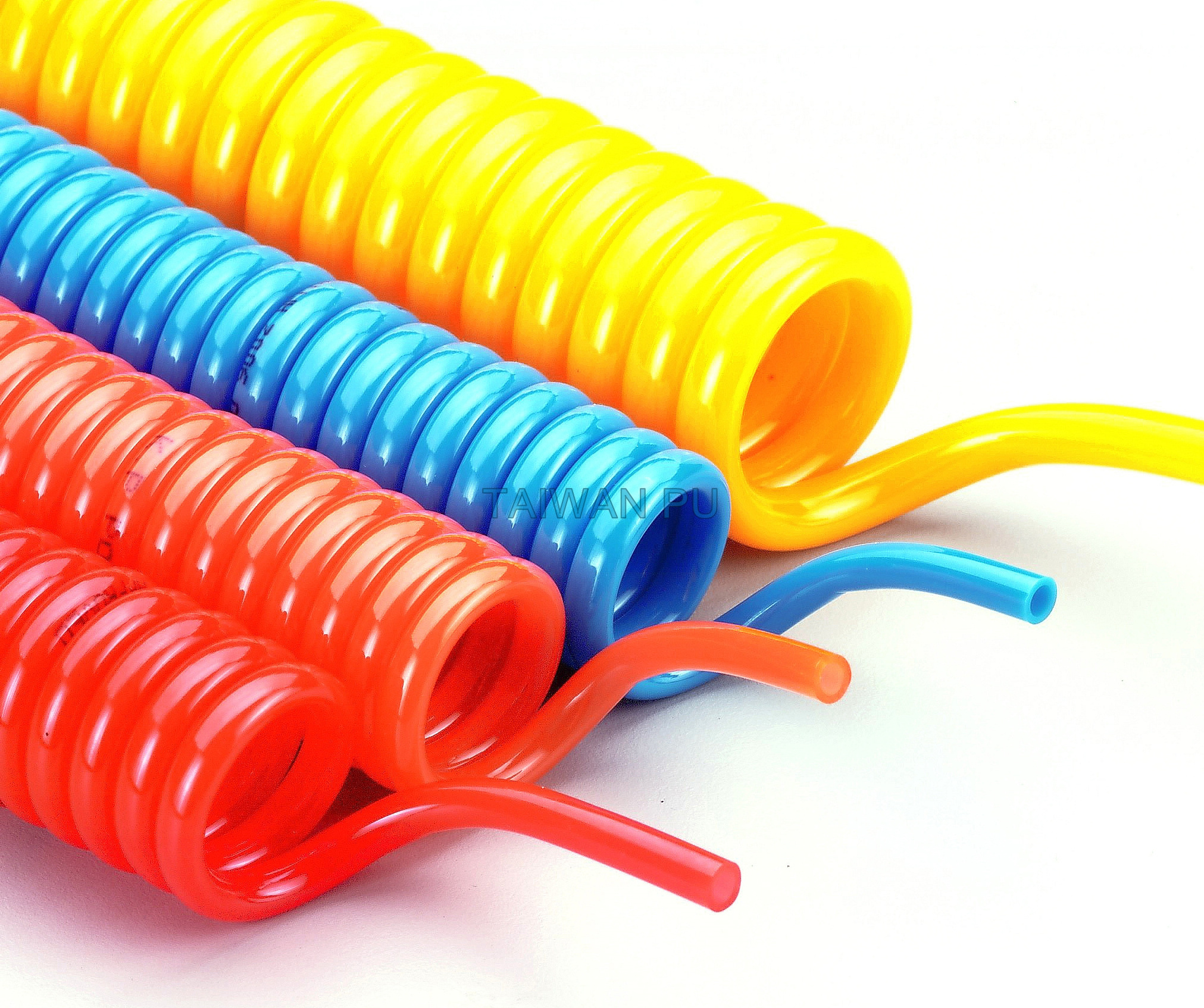

PU Coiled Hose (PU Spiral Hose)
- High flexibility
- Small bending radius
- Available in ether and ester types
- Optimum abrasion resistance
- High tensile strength
- Low temperature flexibility
- Small bending radius
- Available in ether and ester types
- Optimum abrasion resistance
- High tensile strength
- Low temperature flexibility
Application
PU Coil tube with coupler, 1/4"; air hose, PU Spiral Hose
PU Coiled Hose (PU Spiral Hose) can use in automated machinery, coating machinery, all kinds of pneumatic tools, pneumatic & hydraulic machinery, construction and various pneumatic tools. Polyether based PU Coiled Hose is hydrolysis-resistant, anti-bacterial & anti-fungous, and it can be used for gardening, cleaning, water hoses and other purposes. Ether type is resistance to hydrolysis, fungus and weather ability. Ester type give maximum abrasion resistance and good oil, solvent and great resistance.
Description
|
ITEM No.
|
ID x OD
(mm)
|
Total Tube Length
(M)
|
A
(mm)
|
B
(mm)
|
C
(mm)
|
D
(mm)
|
E
(mm)
|
Max working Pressure
(BAR/PSI)
|
|
TBC080502
|
5.0 x8.0
|
2.0
|
740
|
500
|
140
|
100
|
42
|
10/145
|
|
TBC080504
|
5.0 x8.0
|
4.0
|
930
|
500
|
330
|
100
|
42
|
10/145
|
|
TBC080506
|
5.0 x8.0
|
6.0
|
1120
|
500
|
520
|
100
|
42
|
10/145
|
|
TBC080508
|
5.0 x8.0
|
8.0
|
1300
|
500
|
700
|
100
|
42
|
10/145
|
|
TBC106502
|
6.5 x10.0
|
2.0
|
740
|
500
|
140
|
100
|
42
|
10/145
|
|
TBC106504
|
6.5 x10.0
|
4.0
|
930
|
500
|
330
|
100
|
42
|
10/145
|
|
TBC106506
|
6.5 x10.0
|
6.0
|
1120
|
500
|
520
|
100
|
10/145
|
|
|
TBC106508
|
6.5 x10.0
|
8.0
|
1310
|
500
|
710
|
100
|
42
|
10/145
|
|
TBC120802
|
8.0 x12.0
|
2.0
|
740
|
500
|
140
|
100
|
60
|
10/145
|
|
TBC120804
|
8.0 x12.0
|
4.0
|
920
|
500
|
320
|
100
|
60
|
10/145
|
|
TBC120806
|
8.0 x12.0
|
6.0
|
1100
|
500
|
500
|
100
|
60
|
10/145
|
|
TBC120808
|
8.0 x12.0
|
8.0
|
1280
|
500
|
680
|
100
|
60
|
10/145
|
|
TBC161102
|
11.0 x16.0
|
2.0
|
720
|
500
|
120
|
100
|
75
|
10/145
|
|
TBC161104
|
11.0 x16.0
|
4.0
|
880
|
500
|
280
|
100
|
75
|
10/145
|
|
TBC161106
|
11.0 x16.0
|
6.0
|
1040
|
500
|
440
|
100
|
75
|
10/145
|
|
TBC161108
|
11.0 x16.0
|
8.0
|
1210
|
500
|
610
|
100
|
75
|
10/145
|
Physical Properties
|
HARDNESS (SHORE A)
|
98A
|
ASTM D-2240
|
||
|
TENSILE STRENGTH (Kg/cm2)
|
600
|
ASTM D-638
|
||
|
ULTIMATE ELONGATION (%)
|
440-540
|
ASTM D-638
|
||
|
TABER ABRASION (mg)
|
30-40
|
ASTM D-1044
|
||
|
TEAR STRENGTH (Kg/cm2)
|
165
|
ASTM D-732
|
||
|
PU TYPE
|
POLYESTER & POLYETHER BASE
|
|
||
|
Notice: These values are based on the test of our present laboratory test specimens.
|
|
|
||
