suitable for wood, bamboo)
- Product Details
- {{item.text}}
Quick Details
-
Power:
-
37 kw
-
Dimension(L*W*H):
-
1.5*0.9*1.8 m
-
Color:
-
Client's Requirements
-
Raw material:
-
Straw Grass Wood Branches
-
Application:
-
Wood Processing
-
Usage:
-
Wood Chipper Shredder Cutting Wood Branch
-
Type:
-
Multifunctional Efficient Hammer Mill
-
Keywords:
-
Sawdust Machine Wood Crusher Machine
-
Final product:
-
1-10mm Sawdust/coconut powder /bamboo powder
-
Capacity:
-
1-2t/h
-
Spare parts:
-
Hammer Blades
-
Advantage:
-
Efficieny
-
Weight:
-
3500 kg
-
Certification:
-
CE, ISO
Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Sanjin
-
Voltage:
-
380v/50hz/3phase
-
Power:
-
37 kw
-
Dimension(L*W*H):
-
1.5*0.9*1.8 m
-
Color:
-
Client's Requirements
-
Raw material:
-
Straw Grass Wood Branches
-
Application:
-
Wood Processing
-
Usage:
-
Wood Chipper Shredder Cutting Wood Branch
-
Type:
-
Multifunctional Efficient Hammer Mill
-
Keywords:
-
Sawdust Machine Wood Crusher Machine
-
Final product:
-
1-10mm Sawdust/coconut powder /bamboo powder
-
Capacity:
-
1-2t/h
-
Spare parts:
-
Hammer Blades
-
Advantage:
-
Efficieny
-
Weight:
-
3500 kg
-
Certification:
-
CE, ISO
Product Description
Introduction:

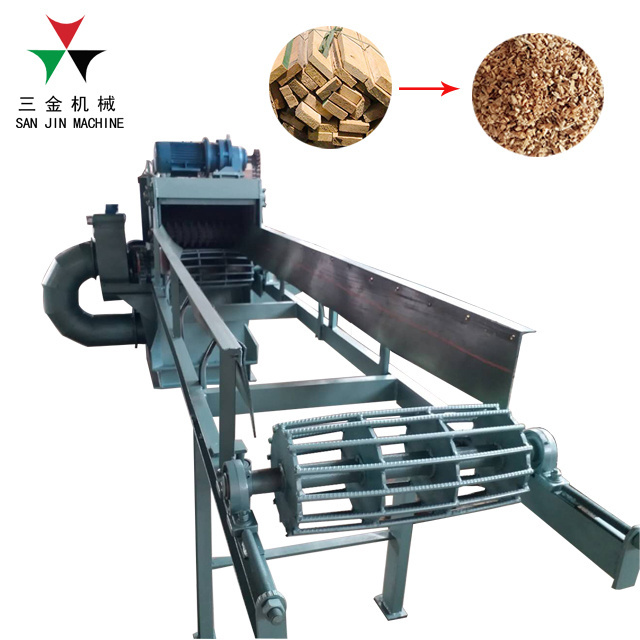

The machine is suitable for: waste packing boxes, formwork, boards, branches, wooden crates, pallets, corn stalks, logs and other waste wood materials and silage crushing.More powerful function, stable after use, wide material applicability, outstanding function, easy to repair, is a green and low-carbon efficient wood, silage crushing equipment
Biomass comprehensive crusher can process with nail wood, wooden pallet, site waste template, wood bracket, stump, waste furniture, branches, wood, template waste, house demolition waste, doors and Windows, etc.The materials after crushing are widely used in biomass power plants, as fuel, fire and other biomass fuels.Can also be used for biomass pellet, man-made board, mechanism charcoal, organic fertilizer, etc. The primary raw materials, and power plants, biomass pellet plant, man-made board factory and other industries need the raw material, it is also need landscaping work equipment, avoid ground operation, the equipment can work, landing, driven by single motor saving power at the same time also save electricity.
Comprehensive crusher is a new generation (wood, straw) crushing equipment developed by our company, using (hammer or cutting) two kinds of rotors, the output is also the old wood crushing equipment 1-2 times.Among them, the hammer type can effectively prevent the impact of the template and the nails on the pallet on the equipment. The cutting type has a good crushing effect on the wood with a large material diameter, and is also a good choice for the production of silage.
Grab machine feeding on composite crusher equipment, which can play a template, straw, branches and other kinds of biological power plant fuel, this equipment has the advantage of high feed port, can grasp the machine feeding (manual), can also according to require the use of remote control, or add feed automatic start-stop function, is when the main motor load big, feed can be automatic start-stop, so that it can greatly save the human.
Specification
|
Model
|
Feeding conveyor
|
Hydraulic pump motor
|
First stage crushing motor
|
Second stage crushing motor
|
discharge conveyor
|
Dust removal fan
|
output(kg/h)
(3mm)
|
output(kg/h)
(6mm)
|
|
600
|
3kw
|
3kw
|
30kw
|
37kw
|
3kw
|
7.5kw
|
2000
|
4000
|
|
800
|
|
|
45kw
|
55kw
|
|
11kw
|
3000-3500
|
6000
|
|
1000
|
|
|
55kw
|
75kw
|
|
15kw
|
4000-4500
|
8000
|
Details Images
Raw materials:
Final products:
Blade
Hobbing cutter
Suitable for wood, bamboo, branches.
Tooth cutter
suitable for
wood, board, building form work, packing board, waste wood from house demolition, hard material or nails
Inlet 1
applicable to bamboo, branches, and other soft materials
Inlet 2
Application to wood, board, building form work, packing board, scrap wood for house demolition
