Quick Details
-
Brand Name:
-
LONROY
-
Model Number:
-
LR-205 Plus
-
Product name:
-
XRF gold testing machine
Quick Details
-
Warranty:
-
1 Year
-
Power:
-
Electronic
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
LONROY
-
Model Number:
-
LR-205 Plus
-
Product name:
-
XRF gold testing machine

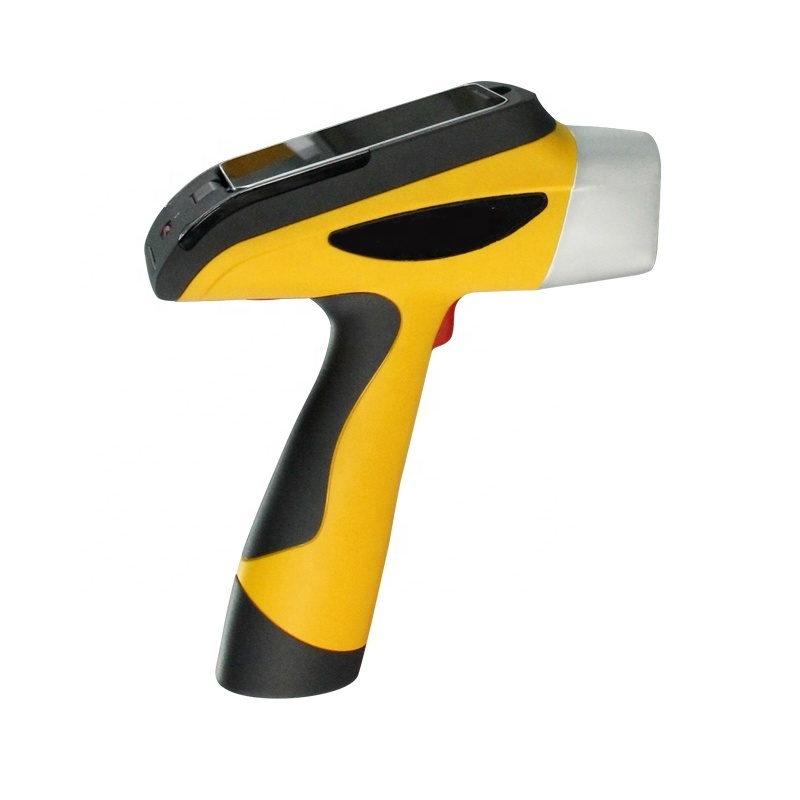

XRF Metal Alloy Analyzer/Portable Gold Tester machine/XRF gold testing machine
Rapid and accurate on-site analysis of alloy kinds and elements
Based on ten-year research and development experiences of portable instruments,handheld XRF adopt photoelectron, microelectronics, semiconductor, computer and many other technology and develop the new generation of handheld XRF with Independent Property Rights.LR-205 plus handheld alloy analyzer is the first to use large-screen, high-resolution LCD and the new digital signal processor. The minimum detection limits make its performance as great as the desktop. With small size and light weight, LR is portable for testing and suitable for analyzing different kinds of alloy.
2.Application Fields
Precious metal alloy
Iron and steel smelting
Waste metal recycling
Machinery manufacturing and processing
Boiler pressure vessel
Aerospace industry
Shipbuilding
.......
XRF Metal Alloy Analyzer/Portable Gold Tester machine/XRF gold testing machine
3.Six Advantages
Easier Operating
Better Performance
Stronger Battery
Higher Configuration
Safer Protection
More Intelligent Software
| XRF Metal Alloy Analyzer/Portable Gold Tester machine/XRF gold testing machine |
| Analytical Method | Energy dispersive X ray fluorescence analytical Method |
| Elements Measuring Range | Atomic number from 12 to 92 [elements from magnesium(Mg) to uranium (U)] can be measured |
| Simultaneous detector elements | Simultaneous analysis 40 elements |
| Microcomputer system | Customized system; CPU: 1G ; system memory: 1G ; extended stored maximum support 32G : standard 4G for mass storage data |
| The content range | PPM - 99.99% |
| The detection time | 1 - 60 seconds (a second report results) |
| A built-in system | GPS,WIFI Bluetooth |
| Power Supply | Rechargeable lithium battery, standard is 9000mAh, sustainable work up to 12 hours; optional is 27000mAh superbattery with wide voltage 110V - 220V universal adapter for recharging power supply |
| Detection Objective | Solid, liquid, powder |
| Detector | SDD detector or Fast-SDD detector (optional) |
| Detector resolution |
Minimum can reach 128ev
|
| The excitation source | 50KV/200uA- silver target end window integrated miniature ray tube and high voltage power supply |
| Collimator and filter | Collimator diameters are 4.0mm and 2.0mm, 6 kinds of filters with automatic switching functions |
| Video system | 500W pixel high resolution camera |
| Display screen | Brand new 5 inch transflective LCD touch screen, the resolution is 1080 x 720 |
| Detection limit | The minimum detection limits at 1 - 500 ppm |
| Safety | Multiple safety protection, no tests, no radiation, radiation levels at work are far below the international safety standards.and has no sample telemetry, automatic shut X light tube function. Standard radiation shields, thickened wall alloy test instrument |
| Specialty | Ore special edition analysis software, using intelligent one key test |
| Convenience of application | Key intelligent matching the best curve that no need to select curve |
| Data transmission | Digital multi-channel technology, SPl data transmission, quick analysis, the high count rate; waterproof mini USB, and can be connected with a desktop computer |
| Operating ambient humidity | ≤90% |
| Operating environmental temperature | -20℃~+50℃ |
| Instrument dimension | 244mm ( Length ) x 90mm ( Width ) x 330mm ( Height ) |
| Instrument weight | 1.7 Kg |
| Intelligent warning signals Indicator system | Green light means power on, red flushing means testing and yellow flushing means the problems |
| Accessories |
Three-military-protection-box is compression, waterproof and shock absorption. Universal charger and car charger,4GSD memory card and card reader Two lithium battery and charger, PDA accessories. radiation shield. Optional accessories: the large battery, seat type test support, Bluetooth printer, mil, manual pressure machine, and other options can to choosen... |
