- Product Details
- {{item.text}}
Quick Details
-
Bottle Volume(ml):
-
500 ml
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
HANYU
-
Year:
-
2024
-
Voltage:
-
380-240-110V/50-60HZ
-
Dimension(L*W*H):
-
1870*630*1450MM
-
Hollow part volume:
-
100ml-1500ml
-
Clamping Force (kN):
-
130
-
Power (kW):
-
18
-
Weight (KG):
-
1200 KG
-
Automatic:
-
no
-
Name:
-
pet bottle blowing machine
-
Product name:
-
Semi Automatic Plastic Bottle Blowing Machine
-
Machine type:
-
High Speed Plastic Bottle Making Machine
-
Type:
-
Stretch Pet Blow Moulding
-
Suitable bottle:
-
Drink Bottle
-
Key words:
-
PET Stretch Bottle Blowing Molding Machine
-
Use:
-
Making PET Bottle
-
Production Capacity (BPH):
-
1500
Quick Details
-
Neck Diameter(mm):
-
30 mm
-
Max.Bottle Diameter(mm):
-
90 mm
-
Max.Bottle Height(mm):
-
320 mm
-
Bottle Volume(ml):
-
500 ml
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
HANYU
-
Year:
-
2024
-
Voltage:
-
380-240-110V/50-60HZ
-
Dimension(L*W*H):
-
1870*630*1450MM
-
Hollow part volume:
-
100ml-1500ml
-
Clamping Force (kN):
-
130
-
Power (kW):
-
18
-
Weight (KG):
-
1200 KG
-
Automatic:
-
no
-
Name:
-
pet bottle blowing machine
-
Product name:
-
Semi Automatic Plastic Bottle Blowing Machine
-
Machine type:
-
High Speed Plastic Bottle Making Machine
-
Type:
-
Stretch Pet Blow Moulding
-
Suitable bottle:
-
Drink Bottle
-
Key words:
-
PET Stretch Bottle Blowing Molding Machine
-
Use:
-
Making PET Bottle
-
Production Capacity (BPH):
-
1500
Product Description
small plastic blow molding machine

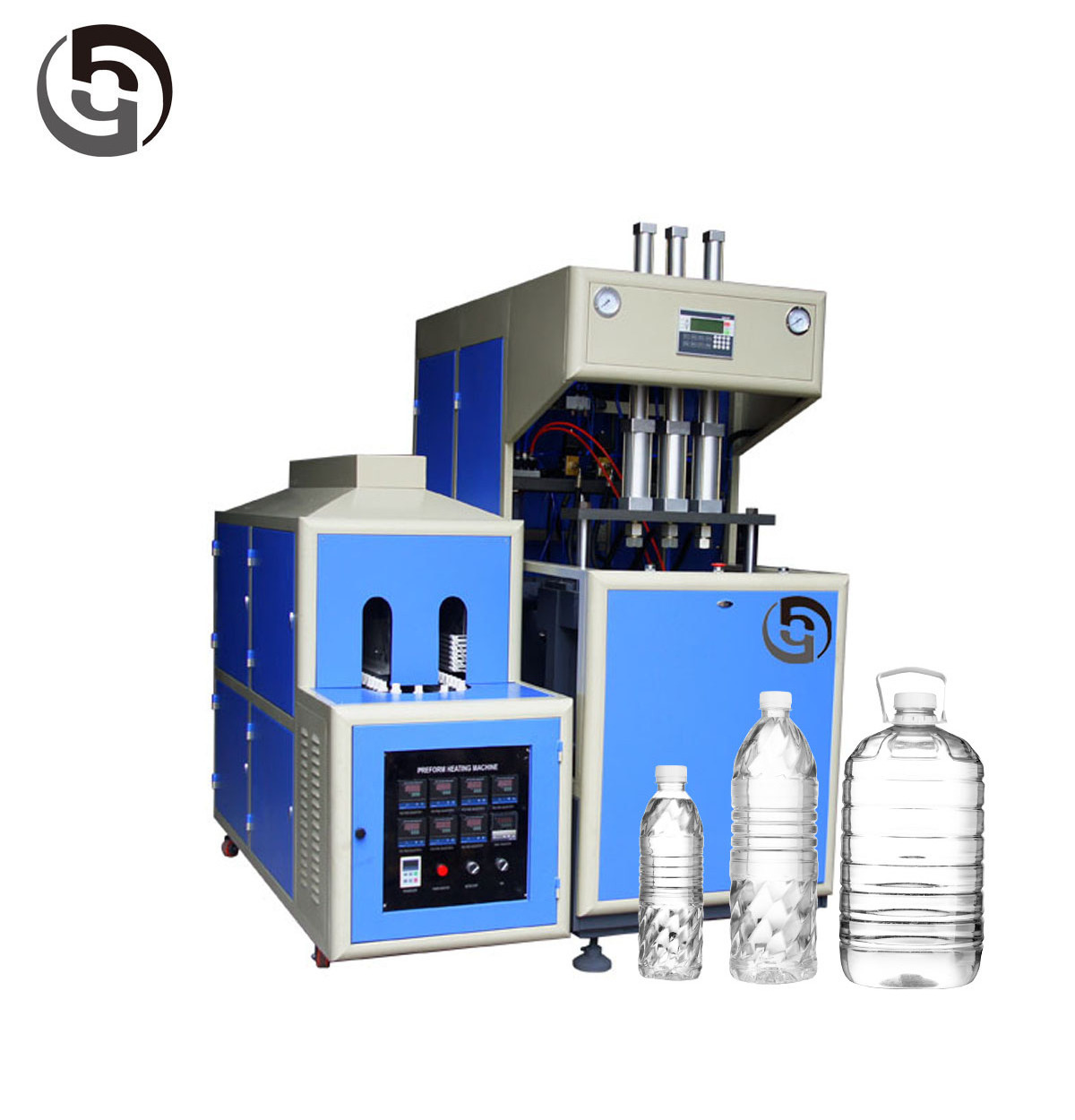

HY-B3 semi-automatic bottle blow molding machine Specification: HY-B3 semi-automatic bottle blow molding machine is suitable for producing PET plastic containers and bottles from 50-1500ml. It is widely used to produce the carbonated bottle, mineral water, pesticide bottle oil bottle cosmetics, wide-mouth bottle etc.
1.Adopting double crank to adjust mould,heavy locking mould, stable and fast, Adopt infrared oven to heat the perform, the perform rotated and heated equally.
2.The air system has been divided into two parts: pneumatic action part and bottle blow part to meet the different requirements for the action and blow. It can provide sufficient and steady high pressure for blowing large irregular shaped bottles.
3.The machine is also equipped with muffler and oiling system to lubricate the mechanical part of the machine.
4.The machine can be operated in the step-by-step mode and the semi-auto mode.
5.The machine is small with low investment ,easy and safe to operate.
Technical parameter
|
Name
|
Item
|
Unit
|
Details
|
|
Blowing machine
|
Dimension
|
mm
|
1700*780*2050
|
|
|
Bottle volume (max)
|
ml
|
1500
|
|
|
Bottle volume (min)
|
ml
|
50
|
|
|
Bottle Neck Diameter (max)
|
mm
|
40
|
|
|
Bottle Neck Diameter (min)
|
mm
|
18
|
|
|
Body Diameter (max)
|
mm
|
90
|
|
|
Body Height( max)
|
mm
|
320
|
|
|
Number of Cavities
|
mold
|
3
|
|
|
Production output
|
pcs/h
|
1000-1500
|
|
|
Clamping force
|
KN
|
130
|
|
|
Mold thickness
|
mm
|
220(max)
|
|
|
Mold width
|
mm
|
480x350
|
|
|
Mold opening stroke
|
mm
|
340
|
|
|
Diameter of Tie-bars
|
mm
|
63
|
|
|
Scope of Tie-bars
|
mm
|
405
|
|
|
Mold stroke
|
mm
|
160
|
|
|
Stretching stroke (max)
|
mm
|
420
|
|
|
Working pressure
|
Mpa
|
1.0Mpa
|
|
|
Blowing pressure
|
Mpa
|
3.0Mpa
|
|
|
Voltage/Power
|
V/KW
|
220V/1KW
|
|
Pre-heater
|
Dimension
|
mm
|
2080*630*1450
|
|
|
Weight
|
kg
|
330
|
|
|
Voltage/Power
|
V/KW
|
380V/14KW
|
Detailed Images
Provide whole drawing for the perform mould and bottle mould. Free charge for word design on the mould
All moulds are designed by CAD/CAM.
FAQ
Q1: Where is your factory located? How can I visit there?
Yes
warmly welcome to visit us ，we are in
Taizhou City, Zhejiang Province, China.
Q2: How long is the warranty
?
A2: All of products have one years warranty.
Q3: How can I install my machine when it arrives?
A3:
We will provide detailed installation videos for semi-automatic machine and provide 24-hour online support.
and if you need we will send our engineer to your side as soon as you get all your machines to testing and teaching your technicians how to run the machines.
Q4: How long is the delivery time?
Q4: How long is the delivery time?
A4: Under normal conditions, products are delivered within 45 working days for fully-auto machine，15days for semi-automatic machine
Q5: Where is the Shipping departure port?
Q5: Where is the Shipping departure port?
A5: Ningbo or shanghai port.
Q6: What’s the payment
Q6: What’s the payment
A6: T/T, L/C,Western Union, paypal.
Q7. What products does your company offer by yourself?
Q7. What products does your company offer by yourself?
A7: We are specialized in PET Blow Molding Machine, PET Blow Mold, Injection Machine, PET Preform Mold,Cap mold.
Q8: How about the quality of machine?
Q8: How about the quality of machine?
A8:
We have been producing bottle blowing machines since 1996 with extensive experience and
undergo repeated testing and inspection before shipment
Packing & Delivery
|
Packaging
|
|
|
|
Packaging Details
|
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
|
|
|
Packaging
|
|
|
|
Packaging Details
|
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
|
|
Our Factory
Zhejiang Hanyu Automation Technology Co., Ltd
Zhejiang Hanyu Automation Technology Co., Ltd is a professional manufacturer of blow molding machines, Our team
have been involved in blow molding machine and mould industry since 1996
Machine manufacturing. integrating development and production together. Our main products include P E T full- automatic blow molding machine, semi-automatic blow molding machine, B O P P blow molding machine, hot-filling bottle blow molding machine, 5 gallon blow molding machine, preform mold, cap mold, bottle mold, plastic mold, injection machine and other related products. Hanyu Machinery has perfect manufacturing equipment and manufacturing system, with a high-quality, professional , persistent team.we can provide all technology to the customers from design to successful install.
