Quick Details
-
Dimensions:
-
44*48*49, 475x480x420mm
-
Use:
-
use to solder and desolder chipset on mainboard
-
Weight (KG):
-
18 KG
-
Positioning:
-
V-groove PCB
-
Top heater:
-
IR 400W
-
Size of topr heater:
-
80mm*80mm
-
PCB size:
-
Max. 400*305 mm
-
BGA chip size:
-
Max. 70*70 mm
-
Total power:
-
1250W
-
Bottom heater:
-
IR 800W
-
Size of bottom heating:
-
180mm*180mm
-
Usage:
-
SMD reworking
Quick Details
-
Marketing Type:
-
infrared bga rework station
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
ACHI
-
Dimensions:
-
44*48*49, 475x480x420mm
-
Use:
-
use to solder and desolder chipset on mainboard
-
Weight (KG):
-
18 KG
-
Positioning:
-
V-groove PCB
-
Top heater:
-
IR 400W
-
Size of topr heater:
-
80mm*80mm
-
PCB size:
-
Max. 400*305 mm
-
BGA chip size:
-
Max. 70*70 mm
-
Total power:
-
1250W
-
Bottom heater:
-
IR 800W
-
Size of bottom heating:
-
180mm*180mm
-
Usage:
-
SMD reworking

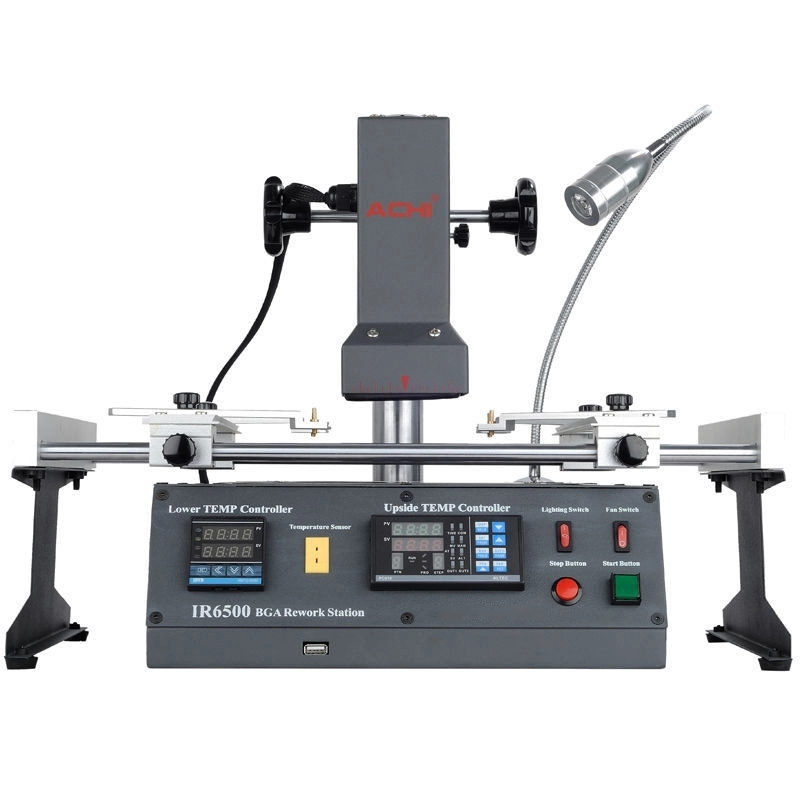

ACHI IR6500 BGA Rework Station Chip desoldering and soldering reballing machine
Highlights of this ACHI IR6500 Soldering Machine
1. USB interface.
2. 2 temperature zones
3. With tempering glass,more uniform heating
4. Hot sale model, praised by many customers.
5. Low cost.
6. Technical support is always available
7. Original Factory, look for worldwide distributors
Where this Hot Sale Low Cost ACHI IR6500 Micro Soldering Machine can be used for ?
1. For repairing Mobile phones
2. For repairing Notebooks/ Laptops/computers
3. For repairing game consoles, especially for XBOX360/PS3/WII
4. For repairing any other mainboards with size from 22x22mm to 500x400mm
5. For preheating chips or mainboards before soldering to improve rework efficiency.
|
Total power |
1250W |
|
Voltage |
AC220V±10% 50/60Hz |
|
Top heater |
IR 400W |
|
Size of topr heater |
80mm*80mm |
|
Bottom heater |
IR 800W |
|
Size of bottom heating |
180mm*180mm |
|
PCB size |
Max. 400*305 mm |
|
BGA chip size |
Max. 70*70 mm |
|
Positioning |
V-groove PCB |
|
Temperature control |
K Type temperature Sensor and Closed loop |
|
Temperature accuracy |
±2°C |
|
Dimension |
475*480*420mm |
|
Net weight |
16 KG |
1 PCS Machine ACHI IR6500 BGA Rework Station;
1 PCS Power line;
1 Roll aluminium-foil paper;
1 PCS USB line;
1 PCS Omega K type of temperature measurement line;
4 PCS jig for support mainboard;
6 PCS screws;
1 PCS CD;
Packaging
Packaging material: Carton case
Packaging size and weight: 47*43*47cm / 20KG
Shipping
A. 3-8 workdays shipping from China by Air/Express(DHL,FedEx,UPS,EMS etc.)
B. 3-5 workdays shipping from UK & Germany Warehouse to European union countries.No need to pay for customs duties and VAT.
C. We can arrange shipment by sea. Minium CBM requirement : 1 CBM
User Manual
We provide you the friendly English User manual for free.
Warranty
1 year free, 2-3 years cost price and free technical support always.
MOQ
1 set welcome, you may want more afer a nice try.
Vedio
We can provide kinds of vedios in pre & after sale service.
How to buy
A. Consult us about this product on line or by e-mail.
B. Negotiate and confirm the final price , shipping , payment methods and other terms.
C. Send you the proforma invoice and confirm your order.
D. Make the payment according to the method put on proforma invoice.
E. We prepare for your order in terms of the proforma invoice after confirming your full payment.
And 100% quality check before shipping.
F.Send your order by air or by sea.
1.We provide you with a friendly English user manual for free.
2.24 hours technical support by email or call.
3.Warranty: 1 year free, 2-3 years cost price and free technical support always.
4.Free training to make sure you master the operating of this machine.
5.Videos of operating the machine are available.
