6.Air Inlet 7.Large Particle Dust Port 8.Fan Air Outlet 9.Power Cord Inlet 10.Compressed Air
ir
- Product Details
- {{item.text}}
Quick Details
-
Product name:
-
dust extraction system
-
Material:
-
HV/Ahlstrom/Toray,F9
-
Air volume:
-
4000m3/h
-
Entrigual fan:
-
5.5KW Simens Motor
-
Collector capacity:
-
45L
-
Filtering area:
-
99.99%
-
Power requirements:
-
3 phase 4 line,380V
-
Air pressure request:
-
0.6Mpa
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
TOPSINN
-
Weight:
-
700 kg
-
Product name:
-
dust extraction system
-
Material:
-
HV/Ahlstrom/Toray,F9
-
Air volume:
-
4000m3/h
-
Entrigual fan:
-
5.5KW Simens Motor
-
Collector capacity:
-
45L
-
Filtering area:
-
99.99%
-
Power requirements:
-
3 phase 4 line,380V
-
Air pressure request:
-
0.6Mpa

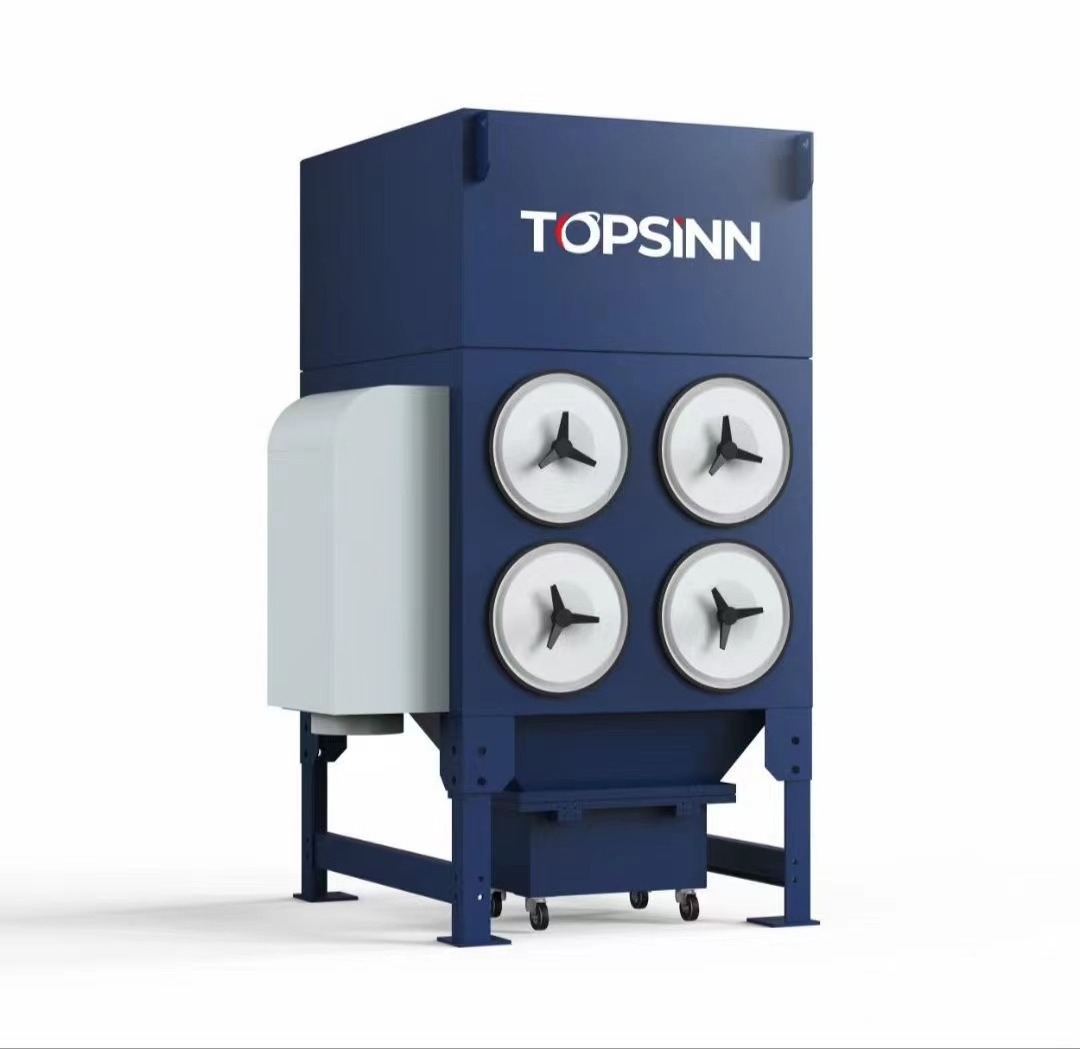

Made in China 5.5kw Cartridge Dust Collector with 4000m3/h dust extraction system
|
Model
|
TODC-4L/6L/8L/12L
|
|
Controller
|
Independent R&D
|
|
HMI
|
4.3 Touch Screen
|
|
Motor
|
SIMENS
|
|
Backflush Valve
|
Pulse Control
|
|
Filter
|
HV/Ahlstrom/TORAY
|
|
Protocol
|
EtherCAT
|
|
Energy Saving(optional)
|
Inverter Control
|
|
TODC-4L-5.5KW
|
TODC-6L-7.5KW
|
TODC-8L-11KW
|
TODC-12L-15KW
|
|
Model
|
TODC-4L
|
TODC-6L
|
TODC-8L
|
TODC-12L
|
|||
|
Filter Cartridge Material
|
HV/Ahlstrom/TORAY, F9
|
|
|
|
|||
|
Number of Filter
|
4
|
6
|
8
|
12
|
|||
|
Air Volume
|
4000m
3
/h
|
6000m
3
/h
|
9000m
3
/h
|
10000m
3
/h
|
|||
|
Air Pressure(Mpa)
|
3000
|
3600
|
5000
|
5000
|
|||
|
Filtration Efficiency
|
99.99%
|
99.99%
|
99.99%
|
99.99%
|
|||
|
Filtering Area
|
80M
2
|
120M
2
|
160M
2
|
240M
2
|
|||
|
Air Blower
|
5.5KW SIEMENS
|
7.5KW SIEMENS
|
11KW SIEMENS
|
15KW SIEMENS
|
|||
|
Collector Capacity
|
45L
|
50L
|
90L
|
120L
|
|||
|
Power Requirements
|
THREE PHASE,FOUR WIRE,380V
|
|
|
|
|||
|
Air Pressure Request
|
0.6-0.7Mpa,Compressed Air Without Oil and Water
|
|
|
|
|||
|
Unit Weight
|
700kg
|
900kg
|
1200kg
|
1800kg
|
|||
|
Outline Dimension(mm)
|
A:2198 B:1348 C:1060 D:303
|
A:2837 B:1423 C:1180 D:383
|
A:2575 B:2215 C:1016 D:453
|
A:2751 B:2215 C:1516 D:553
|
|||
|
Emission Concentration(mg/m3)
|
＜10
|
＜10
|
＜10
|
＜10
|
|||
1.Lifting Ear 2.Filter Barrel Cover 3.Ash Barrel 4.Control Panel 5.Maintenance Door
TOPSINN DUST COLLECTOR ADVANTAGES:
R&D Independent Control Card
(1)I/O can be configured;
(2)Fan overload alarm;
(3)Phase sequence alarm;
(4)Maintenance reminder;
(5)Auto ash clean+Manual ash clean;
(6)Equipped with honeywell sensor;
(7)Support EtherCAT.
Touch Screen
4.3 Inch Touch Screen,
visual touch control
The upper and lower cavities are fully welded
The standard shell is made of No. 7 (5mm thickness) and No. 10 steel (4mm thickness).
Through reinforcement, the designed pressure resistance can reach up to-20 feet water column(5000pa).
Imported Filter Material
Imported HV-USA/Ahlstrom-Filand/TORAY-Japan(optional)
Entrifugal fan
adopt SIMENS motor / WEG motor
Anti-Explosion Model
(Optional)
(Optional)
