Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Yuling
-
Dimension(L*W*H):
-
customized
-
Weight:
-
0.55 KG
-
Working Temperature Range:
-
5 - 850
-
item:
-
Electric Cartridge Heater Electric Heating Element
-
Material::
-
SUS304;SUS316,SUS321,NICOLOY800 etc
-
Power(W):
-
100W 200W 300W 1000W 2000W etc.
-
Diameter:
-
6.5mm-12mm ETC
-
Length::
-
10mm-6000mm
-
intension:
-
2000v/s
-
Insulation material:
-
High purity MGO powder(99.9%)
-
Heating medium:
-
Air/Water/Oil
-
Certification:
-
CQC CE ROHS ISO9000 UL
-
Voltages available:
-
12V~410V
Quick Details
-
Type:
-
cartridge heater heating element
-
Power Source:
-
Electric
-
Voltage:
-
customized
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Yuling
-
Dimension(L*W*H):
-
customized
-
Weight:
-
0.55 KG
-
Working Temperature Range:
-
5 - 850
-
item:
-
Electric Cartridge Heater Electric Heating Element
-
Material::
-
SUS304;SUS316,SUS321,NICOLOY800 etc
-
Power(W):
-
100W 200W 300W 1000W 2000W etc.
-
Diameter:
-
6.5mm-12mm ETC
-
Length::
-
10mm-6000mm
-
intension:
-
2000v/s
-
Insulation material:
-
High purity MGO powder(99.9%)
-
Heating medium:
-
Air/Water/Oil
-
Certification:
-
CQC CE ROHS ISO9000 UL
-
Voltages available:
-
12V~410V
Factory Wholesale Stainless Steel High Density Cartridge For Stove Heater Pellet Igniter
Product Description

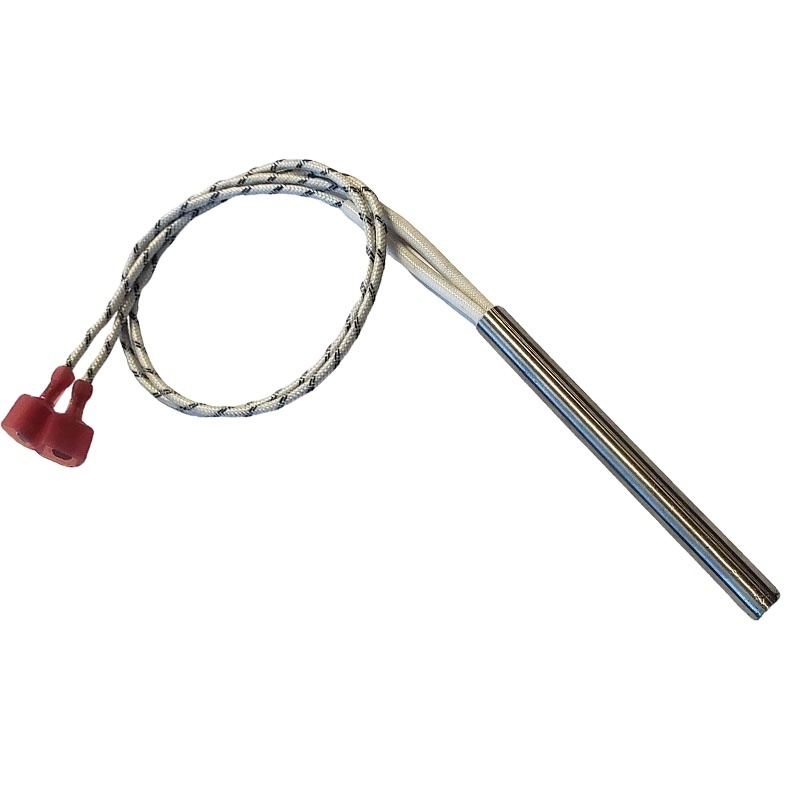

About Cartridge Heater
◆
Electric heater cartridge is a piece of equipment, made of MgO powder or MgO tube, ceramic cap, resistance wire(NiCr2080),High
temperature leads, seamless stainless steel sheath(304,321,316,800,840)
◆ Usually in tube form,that is used in heating applications by way of insertion into metal blocks via a series of drilled holes.
◆ Cartridge heaters are manufactured in two basic forms - High powerdensity and Low and medium power density.
◆ High power density (heating surface power 10~25w/cm²), are widely used to heat Plastic injection moulds, Moulds, Platens and so
on
◆ Low and medium power density (heating surface power5~11w/cm²), are more suitable for packing machinery, heat sealing, labelling
machines and hot stamping applications.
◆ The high-quality stainless steel sheath provides long-lasting protection, even in the harshest industrial environments. Its max
power density can reach up to 40w/cm², and its maximum operating temperature can reach 800℃
temperature leads, seamless stainless steel sheath(304,321,316,800,840)
◆ Usually in tube form,that is used in heating applications by way of insertion into metal blocks via a series of drilled holes.
◆ Cartridge heaters are manufactured in two basic forms - High powerdensity and Low and medium power density.
◆ High power density (heating surface power 10~25w/cm²), are widely used to heat Plastic injection moulds, Moulds, Platens and so
on
◆ Low and medium power density (heating surface power5~11w/cm²), are more suitable for packing machinery, heat sealing, labelling
machines and hot stamping applications.
◆ The high-quality stainless steel sheath provides long-lasting protection, even in the harshest industrial environments. Its max
power density can reach up to 40w/cm², and its maximum operating temperature can reach 800℃
Related Products
Customer Evaluation
FAQ
1. who are we?
1.we have been doing foreign trade since 2010;
1.we have been doing foreign trade since 2010;
2.sell to Domestic Market(50.00%),North America(30.00%),Southeast Asia(10.00%),Western Europe(10.00%);
3. We have 500㎡of office and 2500㎡ of workshop.
2. how can we guarantee quality?
1.We produce in strict accordance with the quality management standard;
3.what can you buy from us?
1.Electrical appliance (Instant heater,Finned heater,Oven heating element,Circulation heater);
2. how can we guarantee quality?
1.We produce in strict accordance with the quality management standard;
2.We inspect the workshop once every 2 hours;
3.Confirm the sample details with the customer for each order.
3.Confirm the sample details with the customer for each order.
3.what can you buy from us?
1.Electrical appliance (Instant heater,Finned heater,Oven heating element,Circulation heater);
2. related products;
3. if there are other needs, we also can help customers to purchase.
4. why should you buy from us not from other suppliers?
1.More than 40 years' heating element industrial experence;
2.UL(E501501)/CE/RoHS/CQC ISO9001:2008;
3.The R&D team and Laboratory;
4. why should you buy from us not from other suppliers?
1.More than 40 years' heating element industrial experence;
2.UL(E501501)/CE/RoHS/CQC ISO9001:2008;
3.The R&D team and Laboratory;
4.Integration of industry and trade is very beneficial to customer procurement;
5.Products within the warranty period will be replaced free of charge.
