Faster and safer
Less maintain
- Product Details
- {{item.text}}
Quick Details
-
Application:
-
Workshop
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
SEPPES
-
Model Number:
-
HSD-800
-
product:
-

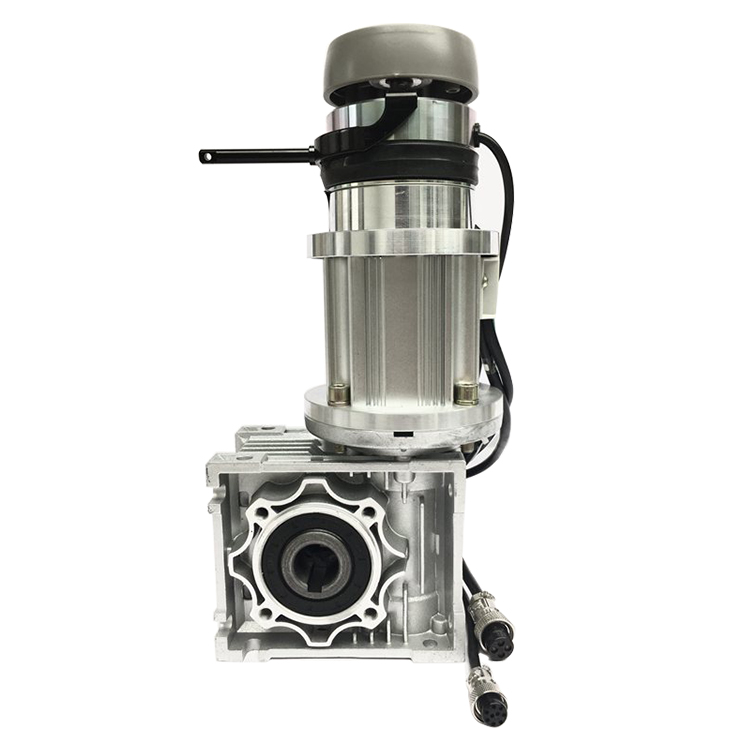

high speed door motor
-
Color:
-
black and white
-
Self Locking:
-
Electro Mechanical Brake
-
operating time::
-
2,500 rpm
-
Operating Speed::
-
0.5m/s-1.5m/s
-
Rated voltage::
-
220v
-
Rated Powever::
-
1.5KW
-
Working Temperature:
-
-35℃-60℃
-
Limit Switch:
-
Absolute Encoder
Quick Details
-
Warranty:
-
1 Year
-
After-sale Service:
-
Online technical support
-
Project Solution Capability:
-
graphic design
-
Application:
-
Workshop
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
SEPPES
-
Model Number:
-
HSD-800
-
product:
-
high speed door motor
-
Color:
-
black and white
-
Self Locking:
-
Electro Mechanical Brake
-
operating time::
-
2,500 rpm
-
Operating Speed::
-
0.5m/s-1.5m/s
-
Rated voltage::
-
220v
-
Rated Powever::
-
1.5KW
-
Working Temperature:
-
-35℃-60℃
-
Limit Switch:
-
Absolute Encoder
Description
Details of products
|
Model
|
PE200
|
PE500
|
|
Power
|
0.75KW
|
1.5KW
|
|
Voltage
|
220V
|
220V
|
|
Size(mm)
|
330*440*220
|
425*250*190
|
|
Diameter of axle distance
|
2.5
|
2.5
|
|
Manual Release
|
Hand Crank
|
Hand Crank
|
|
Weight
|
16.5 KG
|
24 KG
|
Notice
1.Before connecting the system to live wire place make sure the power supply is off.
and reliably connect to the ground wire.
2.After the power supply is cut, and before the LCD is off, there still high voltage electricity in the circuit, so DO NOT touch the internal wiring and electronic components.
3.Internal wiring and electronic components are very sensitivity to static electricity, so DO NOT let any object contact the internal wiring and electronic components of motor driver and the main circuit of the touch control panel.
