Quick Details
-
Warranty:
-
12 months
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
OEM
-
Model Number:
-
MT24
-
Torque:
-
8 N.m
-
Product Name:
-
DC Transaxle Motor
-
Motor Type:
-
Brushless Motor
-
Rated Voltage:
-
24VDC
-
Motor No-load Speed:
-
4200 rpm
-
No-load Output Speed:
-
110~260 rpm
-
Continuous Current:
-
1~25A
-
Insulation Class:
-
F
-
Waterprroof Grade:
-
IP54
-
Reduced Ratio:
-
16:1/19:1/24:1/32:1/38:1
-
Application:
-
Golf Car, Slightseeing Car, Sweeper etc
Quick Details
-
Speed(RPM):
-
110~260 rpm/min
-
Continuous Current(A):
-
1~25 A
-
Efficiency:
-
85%
-
Warranty:
-
12 months
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
OEM
-
Model Number:
-
MT24
-
Torque:
-
8 N.m
-
Product Name:
-
DC Transaxle Motor
-
Motor Type:
-
Brushless Motor
-
Rated Voltage:
-
24VDC
-
Motor No-load Speed:
-
4200 rpm
-
No-load Output Speed:
-
110~260 rpm
-
Continuous Current:
-
1~25A
-
Insulation Class:
-
F
-
Waterprroof Grade:
-
IP54
-
Reduced Ratio:
-
16:1/19:1/24:1/32:1/38:1
-
Application:
-
Golf Car, Slightseeing Car, Sweeper etc

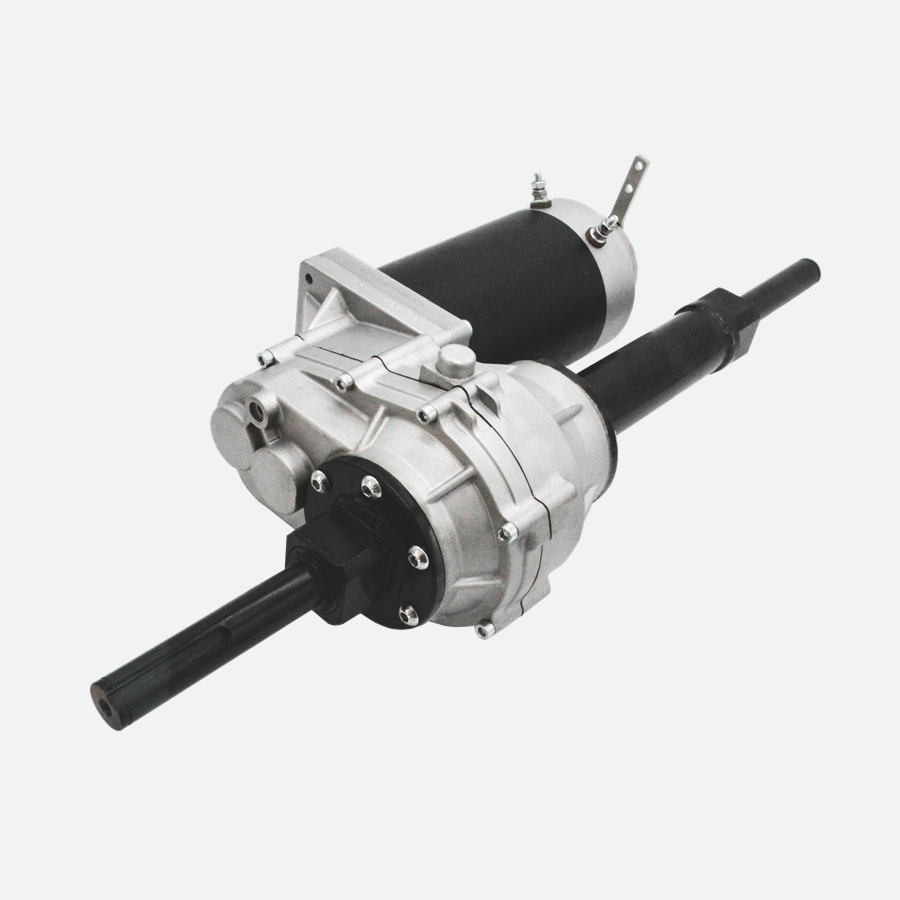

DC Transaxle Motor
(MT24)
：
|
Model
|
MT24
|
|
Power
|
800 W/1000 W/1200 W/1500 W
|
|
Rated Voltage
|
24VDC/36VDC/48VDC
|
|
Insulation Class
|
F
|
|
Motor No-load Speed
|
4200 rpm
|
|
No-load Ouput Speed
|
110~260 rpm
|
|
Continupus Current
|
1~25 A
|
|
Waterproof Grade
|
IP54
|
|
Reducer Speed Ratio
|
16:1 / 19:1 / 24:1 /32:1 / 38:1
|
|
Electromagnetic Brake
|
24VDC 8N.m
|
|
Sales Manager
|
Gloria
|
|
Whatapp
|
+86 15295065801
|
|
Mailbox
|
gloria@gearmotordrive com
|
Features:
* Convenient electronic brake
* Soft start-up performance
* High Efficiency
* Low noise < 60bd
* Energy Saving
* Long riding distance
* Logo can be customized
* ODM order are welcome
* Super long working lifespan
* Single-stage gear power transmission
* Convenient electronic brake
* Soft start-up performance
* High Efficiency
* Low noise < 60bd
* Energy Saving
* Long riding distance
* Logo can be customized
* ODM order are welcome
The Reasons Why You Choose Tampa Bay Motor
Tampa Bay is an electric motor company responsible for producing some of the electric motors in the world. Whether it be the motor itself, or key components for all types of electric vehicles. The company is on a mission to provide affordable solutions for their worldwide customers.
More than 20 years ODM&OEM experiences exploration and successfully solving hundreds of needs.Confident that electric vehicles are the future, the company mainly focused on research and development to improve their brushless motor technology before moving on to designing and manufacturing applications. Throughout the years, the company's strict quality control and competitive prices rewarded with returning customers and business expanded across multiple industries globally.
Today, their bestselling high powered BLDC motors are used in wide variety of industrial applications. Being customizable and programmable the flexibility it creates endless possibilities, even EV enthusiasts and hobbyists are getting in on the action.They also offer engineering solutions for businesses as well as free consulting services.
