Quick Details
-
Brand Name:
-
Zhenhua
-
Weight:
-
110kg, 110kg
-
Dimension(L*W*H):
-
contact
-
After-sales Service Provided:
-
Engineers available to service machinery overseas, Video technical support
-
Name:
-
Thin Blade Corrugated Cardboard Slitting Scoring Machine
-
min slitting width:
-
130mm
-
width:
-
50mm
-
External diameter of blade:
-
260mm
-
Blade thickness:
-
1mm
-
Knives number:
-
4 /6 pieces
-
Certification:
-
CE Certificate
Quick Details
-
Voltage:
-
380V/50HZ
-
Power:
-
3kw, 3kw
-
Place of Origin:
-
Hebei, China (Mainland)
-
Brand Name:
-
Zhenhua
-
Weight:
-
110kg, 110kg
-
Dimension(L*W*H):
-
contact
-
After-sales Service Provided:
-
Engineers available to service machinery overseas, Video technical support
-
Name:
-
Thin Blade Corrugated Cardboard Slitting Scoring Machine
-
min slitting width:
-
130mm
-
width:
-
50mm
-
External diameter of blade:
-
260mm
-
Blade thickness:
-
1mm
-
Knives number:
-
4 /6 pieces
-
Certification:
-
CE Certificate

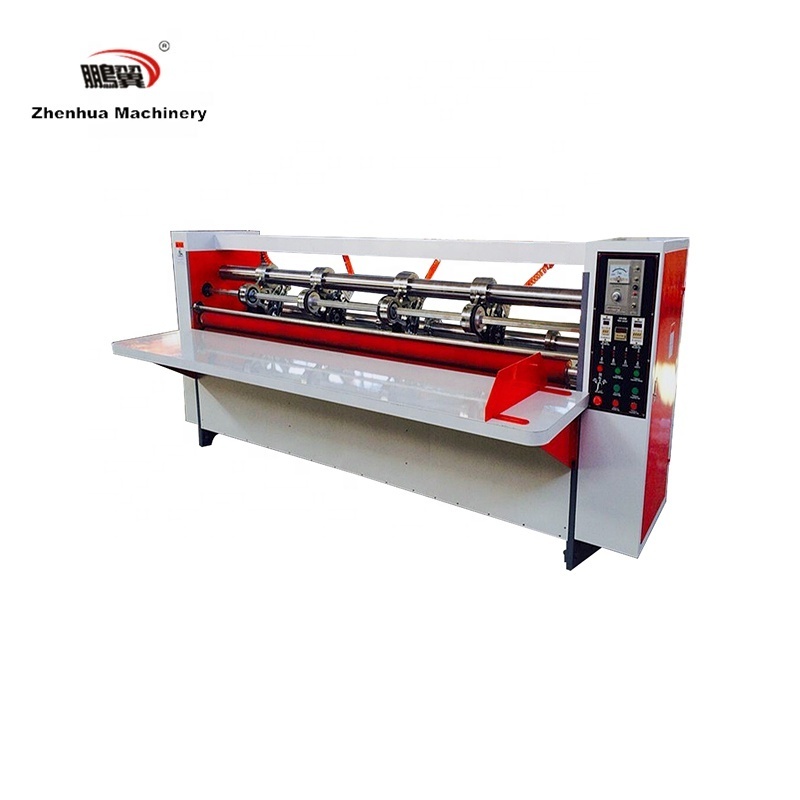

BFY 2500 High Quality Corrugated Cardboard Thin Blade Slitter Scorer Machine /Carton Box Manufacturing Machine Price
Electric adjustment blade design slitter scorer machine
BFY 2200 corrugated cardboard slitter scorer machine
1. Pre-pressed paper feeding insures the stable papers transmit.
2. Thin edge slitting with automatic and manual grindstone grinding to keep edge sharp and make slit paper smooth and tidy.
3. Press lines on slit pre-pressed paper board ensure the original lines without crack.
4. The thin edge slitter used for corrugated board production line can be provided.
5. The machine can be provided to corrugated paperboard production line.
6. With special alloy knives, long life for using.
| Model | BFY-2000 | BFY-2200 | BFY-2500 |
| Knife number | 4 | 4 | 4 |
| Min slitting width(mm) | 120 | 120 | 120 |
| Min crease width(mm) | 50 | 50 | 50 |
| Blade external diameter(mm) | 260 | 260 | 260 |
| Blade thickness(mm) | 1 | 1 | 1 |
| Motor power(KW) | 3 | 3 | 3 |
| Dimension(mm)L×W×H | 2800×850×1500 | 3000×850×1500 | 3300×850×1500 |
