Quick Details
-
input:
-
4DVB-S/S2 RF in
-
Output:
-
IP UDP TS,ASI BNC
-
input dvb-s/s2 frequency:
-
950-2150mhz satellite
-
skype:
-
benter.niu
-
ts udp format:
-
mpts spts multicast
-
CAM CARD:
-
smit,smardtv,neotion,scm,powercam etc..
-
Warranty:
-
3 Years
Quick Details
-
Place of Origin:
-
Sichuan, China
-
Brand Name:
-
sochuang
-
Model Number:
-
SC-5217
-
input:
-
4DVB-S/S2 RF in
-
Output:
-
IP UDP TS,ASI BNC
-
input dvb-s/s2 frequency:
-
950-2150mhz satellite
-
skype:
-
benter.niu
-
ts udp format:
-
mpts spts multicast
-
CAM CARD:
-
smit,smardtv,neotion,scm,powercam etc..
-
Warranty:
-
3 Years

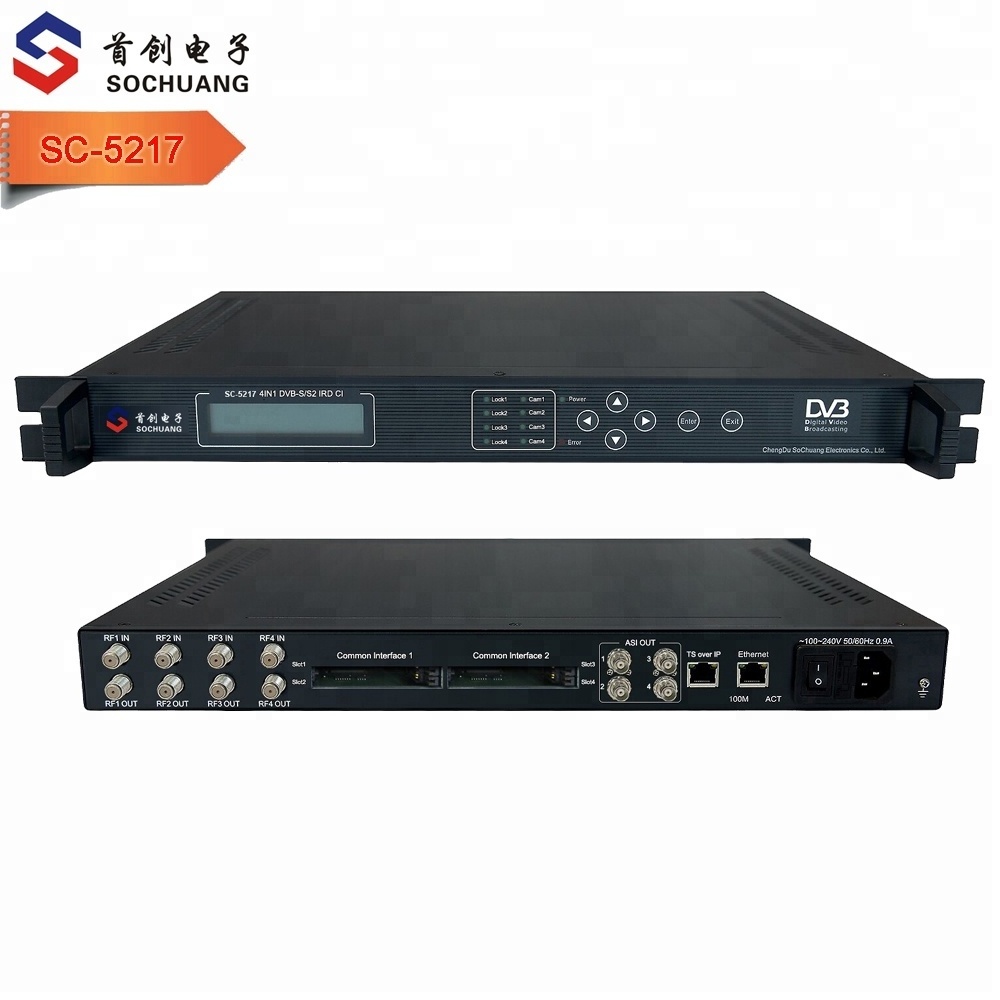

SC--5217 4 channel DVB-S2 CI IRD/32 IP out professional descrambler demodulator/dvb-s IRD with ci
DVB-S2 to MPTS MULTICAST IRD Satellite Receiver with CI Slot (4DVB-S/S2 RF in,4ASI+4MPTS*multicast Gigabit out)
Overview
DVB-S/S2 4-channel IRD with CI supports 4xDVB-S/S2 RF input . It has 4 ×CI interface s and supports multi-type of CAM cards. It can output 4 × ASI and IP (MPTS, TS over UDP). It suits 1U rack and provides front panel LCD operation and NMS (Network Management Software) controlling. Its high-integrated and cost-effective design makes it widely used in varieties of digital broadcasting distribution systems .
Features
Support DVB- S/DVB-S2 input
Support 4 × CI slots
Support ASI/ IP (MPTS, TS over UDP ) output
Common interface with 4 slots (PCMCIA) supports multi-type of CAM cards
4 slots of PCMCIA module could descramble multi - program stream
Frequency Range: 950~2150Mhz
Technical Specification
|
Input |
DVB-S/S2 |
4*F-head Tuners, 950-2150MHz, DisEqc/22KHz |
|
DVB-C/QAM |
4*F-head Tuners, 30-900MHz,Symbol:1-7Msps |
|
|
DVB-T/T2 |
4*F-head Tuners, 47-870MHz |
|
|
DTMB |
4*F-head Tuners, 47-870MHz |
|
|
CI |
4*CI Slot, CAM card per Tuner |
|
|
Output ASI:4*BNC |
DVB standard, 4*BNC interface |
|
|
Output IP: 5217/5117/5417 |
1*MPTS Multicast per Frequency,1000M/gigabit IP port |
|
|
Output IP: 5219/5119/5419 |
8*SPTS Multicast per Frequency,1000M/gigabit IP port |
|
|
Control |
Keyboard + LCD,NMS (Ethernet Port, RJ-45), 10/100m base-T*, |
|
|
General Features |
Size |
482mm*410mm*44mm |
|
Temperature |
0~45°C (Operation); -20~80°C (Storage) |
|
|
Power |
100-240VAC, 50Hz, 25W |
|
