Quick Details
-
Voltage:
-
220V/380V
-
Dimension(L*W*H):
-
According to capacity
-
Weight:
-
According capacity to
-
Warranty:
-
2 Years
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Application:
-
Gold,copper, chrome, etc, ore concentrationg
-
Installation:
-
Engineer Guide
-
Max Feed Size:
-
0.15-2 mm
-
Feeding density:
-
20-30%
-
Mineral dressing area:
-
7.6 m2
-
Features:
-
Big steel intensity,Low water-absorptivity,
-
Advantages:
-
Good weather resistenance,good shape stablity
-
Applications:
-
separate tungsten,niobium,iron,manganese minerals,coal
-
Material:
-
Fiberglass
-
Local Service Location:
-
Kenya, Argentina, South Korea
-
Certification:
-
ISO9001:2008 CE BV SGS
Quick Details
-
Production Capacity:
-
98%
-
Place of Origin:
-
Shaanxi, China
-
Brand Name:
-
DESEN
-
Voltage:
-
220V/380V
-
Dimension(L*W*H):
-
According to capacity
-
Weight:
-
According capacity to
-
Warranty:
-
2 Years
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Application:
-
Gold,copper, chrome, etc, ore concentrationg
-
Installation:
-
Engineer Guide
-
Max Feed Size:
-
0.15-2 mm
-
Feeding density:
-
20-30%
-
Mineral dressing area:
-
7.6 m2
-
Features:
-
Big steel intensity,Low water-absorptivity,
-
Advantages:
-
Good weather resistenance,good shape stablity
-
Applications:
-
separate tungsten,niobium,iron,manganese minerals,coal
-
Material:
-
Fiberglass
-
Local Service Location:
-
Kenya, Argentina, South Korea
-
Certification:
-
ISO9001:2008 CE BV SGS
New gold processing machine shaking table gold
Shaking Table is one of the main equipments of gravity concentration. It is not only widely applied on separating gold, copper, chrome ore, but also tungsten, tin, tantalum niobium, iron metal ore.
Main Structure: Head Motion+Deck
Head motion
:
a totally enclosed self-oiling head motion of heavy cast iron to contain an oil reservoir for perfect splash lubrication.
Advantages:
This feature protects the moving parts,
reducing operating and
maintenance costs to a minimum.
Deck:
The decks are constructed of steel framework and covered 16mm fiberglass with corundum, this cover its strength reaches as high as 70% of steel.
Advantages: stronger, wear-resistant, corrosion-resistant, and no distortion, it lengthens the working-life of machine and thus allows machine perform perfectly on different mineral and different weather condition.
Advantages of gold shaking table comparing other manufactures:
Durable, Stable Performance, Low cost
Simple structures of gold shaking table
| Name | Unit | Coarse ore deck | Find sand deck | Slime deck | |
| Deck size | Length | mm | 4500 | 4500 | 4500 |
| Transmission end width | mm | 1830 | 1830 | 1830 | |
| Concentratr end width | mm | 1530 | 1530 | 1530 | |
| Max feeding size | mm | 2 | 0.5 | 0.15 | |
| Feeding amount | t/d | 30-60 | 10-20 | 15-25 | |
| Feeding density | % | 25-30 | 20-25 | 15-25 | |
| 8-16Stroke | mm | 16-22 | 11-16 | 8-16 | |
| Frequency | Hz | 45-48 | 18-53 | 50-57 | |
| Water added | t/d | 80-150 | 30-60 | 10-17 | |
| Transverse slop of the deck | ° | 2°30-4°30 | 1°30-3°30 | 1°-2° | |
| Longitudinal slope of deck | ° | 1.4 | 0.92 | ||
| Beneficiation area | m2 | 7.6 | 7.6 | 7.6 | |
| Cross-section shape of deck | Rectanglular | Saw tooth | Triangle | ||
| Motor power | kw | 1.1 | 1.1 | 1.1 | |
| Transmission mechanism | Eccentric linkage | ||||
Pls contact Whatsapp/wechat: +8613319277356 for get the quick quotation

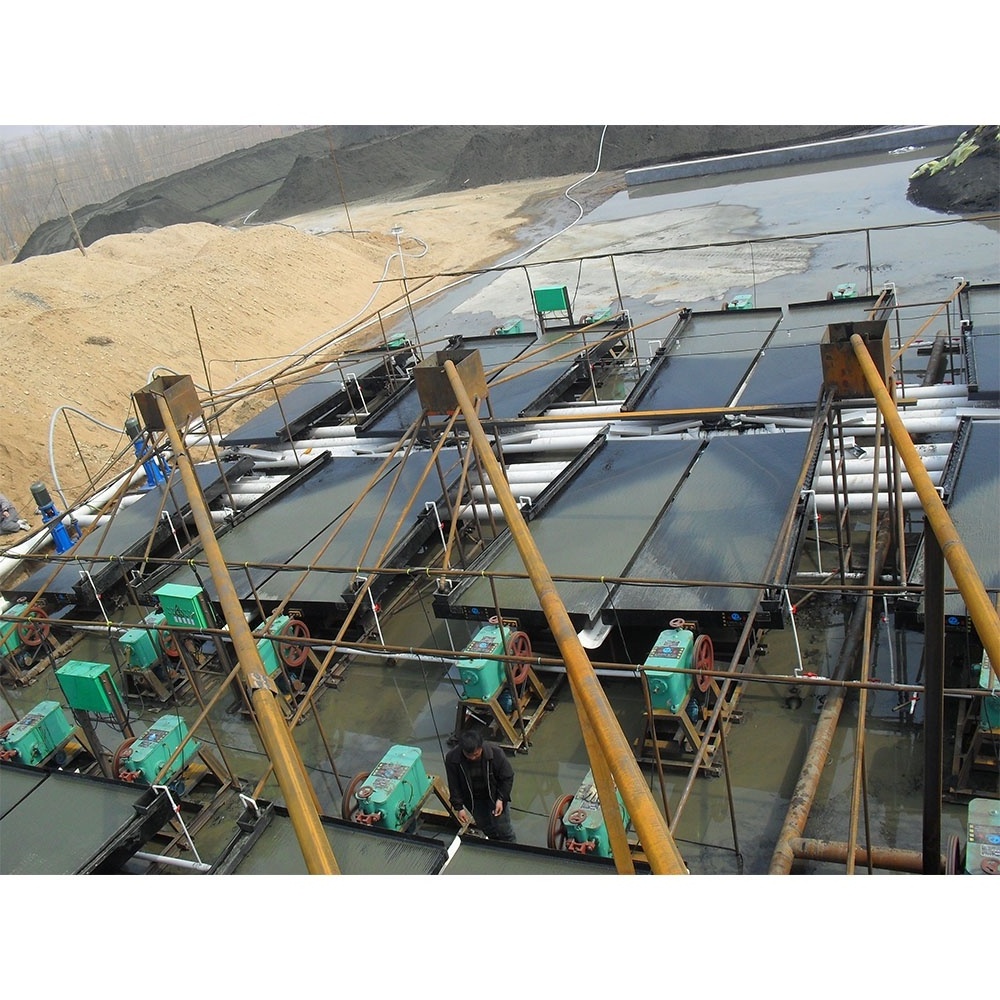

Working on-site of gold shaking table
