Quick Details
-
Model Number:
-
S008060IA3SA1
-
CRI (Ra>):
-
75
-
Input Voltage(V):
-
DC5V
-
Lamp Luminous Flux(lm):
-
18-20lm/led
-
Working Lifetime(Hour):
-
50000
-
Working Temperature(℃):
-
-40 - 60
-
LED Light Source:
-
SK6812SIDE SMD 4020
-
Emitting Color:
-
Changeable
-
Product Name:
-
Ultra Thin Side View Flexible LED Strip
-
LED Chip:
-
SK6812SIDE SMD 4020
-
Color Available:
-
Full color
-
LED Quantity:
-
60 LEDs/m
-
PCB Size:
-
5000*8mm
-
IP Rating:
-
IP20
-
Beam Angle:
-
120 Degree
-
Luminous Efficacy(lm/w):
-
19.6
-
Lamp Power:
-
15W
Quick Details
-
Color Temperature(CCT):
-
2700K (Soft Warm White)
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
iPixel LED
-
Model Number:
-
S008060IA3SA1
-
CRI (Ra>):
-
75
-
Input Voltage(V):
-
DC5V
-
Lamp Luminous Flux(lm):
-
18-20lm/led
-
Working Lifetime(Hour):
-
50000
-
Working Temperature(℃):
-
-40 - 60
-
LED Light Source:
-
SK6812SIDE SMD 4020
-
Emitting Color:
-
Changeable
-
Product Name:
-
Ultra Thin Side View Flexible LED Strip
-
LED Chip:
-
SK6812SIDE SMD 4020
-
Color Available:
-
Full color
-
LED Quantity:
-
60 LEDs/m
-
PCB Size:
-
5000*8mm
-
IP Rating:
-
IP20
-
Beam Angle:
-
120 Degree
-
Luminous Efficacy(lm/w):
-
19.6
-
Lamp Power:
-
15W

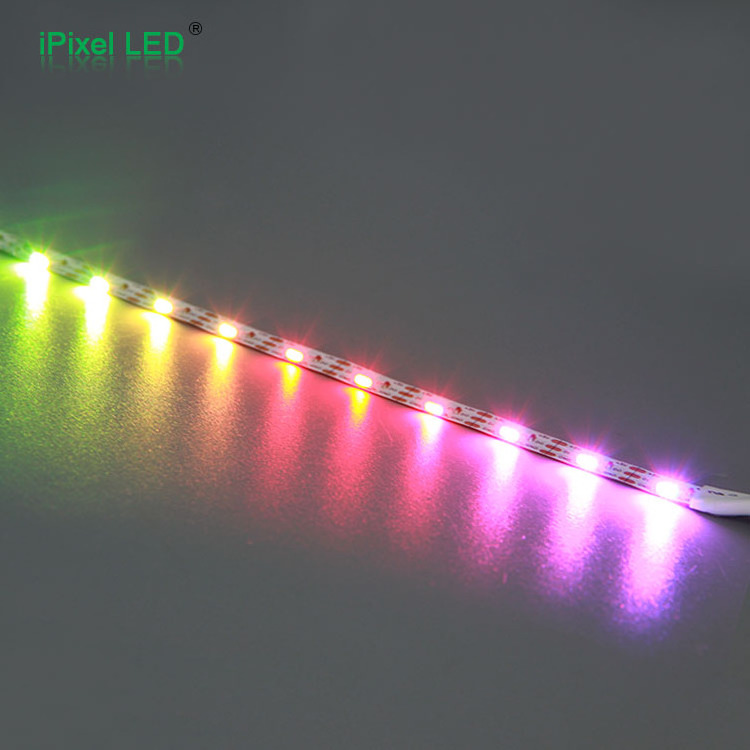

iPixel LED new design smd4020 side view slim led flex strip 60pixels sk6812 digital edge strip light
- After we developed the ultra thin side emitting bar ( http://www.ipixelleds.com/index.php?id=376).
- The flexible side view stripe came out under customer's strong request.
- It's
60 LEDs
per meter and
5 meters
in a reel.
- Same as our other addressable tapes, it's
cut-able every unit
.
- Just be aware that the solder pad very small so suggest you choose a 22AWG wire for re-connection.
-Each chip has 4 pin even it's quite thin size, and the Pin almost covered by the LED's body, so it's hard to replace LED if any of broken , cut the unit LED on PCB will be a better option.
| Product Name | Ultra Thin Side View Flexbiel LED Strip |
| LED type | SK6812 SIDE SMD 4020 |
| LED Qty | 60LEDs/m |
| Color | full color |
| Control (IC) | SK6812 |
| Voltage | DC5V |
| Power | 18W/m |
| PCB size | L 5000* W 8* H 2.5 mm |
| Luminosity Luminosity | R:90000mcd G:132000mcd B:6000mcd |
| Beam Angle | 120° |
| Brand Name | iPixel LED |
| Warranty | 2 Years |
| IP Rate | IP20 |
