Quick Details
-
Crimp / Charge:
-
120 Times per saturatior voltase( Copper wire150mm2 )
-
Voltage:
-
18V
-
Capacity:
-
5.0Ah
-
Crimping Die:
-
16,25,35,50,70,95,120,150,185,240,300,400mm2
-
Battery:
-
2pcs
-
Weight:
-
8kg
Quick Details
-
Crimping Range:
-
6-400mm2
-
Crimping Force:
-
120KN
-
Stroke:
-
42mm
-
Crimp / Charge:
-
120 Times per saturatior voltase( Copper wire150mm2 )
-
Voltage:
-
18V
-
Capacity:
-
5.0Ah
-
Crimping Die:
-
16,25,35,50,70,95,120,150,185,240,300,400mm2
-
Battery:
-
2pcs
-
Weight:
-
8kg
|
Product model
|
EZ-400
|
|
Output
|
120KN
|
|
Crimping range
|
Cu400mm²/Al300mm²
|
|
Trip
|
42mm
|
|
Voltage
|
18V
|
|
Battery
|
2PCS
|
|
Battert capacitance
|
5.0Ah
|
|
Charging time
|
1 hours
|
|
Hydraulic oil
|
15#low pour point anti-wear hydraulic oil about 210ml
|
|
Single crimping time
|
3*6s (depending on cable diameter)
|
|
Mold configuration
|
10,16,25,35,50,70,95,120,150,185,240 300mm²
|
|
Product features
|
1.The head can rotate 360°, with double number and double action hydraulic device design;
2.When the crimping iscompleted, the
motor stops and returs automatically, and the oil can be returned manually if necessary;
3.18v 4.0AH high-performance lithiumbattery, one switch can control all tool functions
4.The PVC shell strengthens the machine body, which is not easy to break, andthe safety valve device is set inside;
5.Automatic power off function. If the product is not applicable, the system willautomatically power off to avoid loss.
|
|
Product model
|

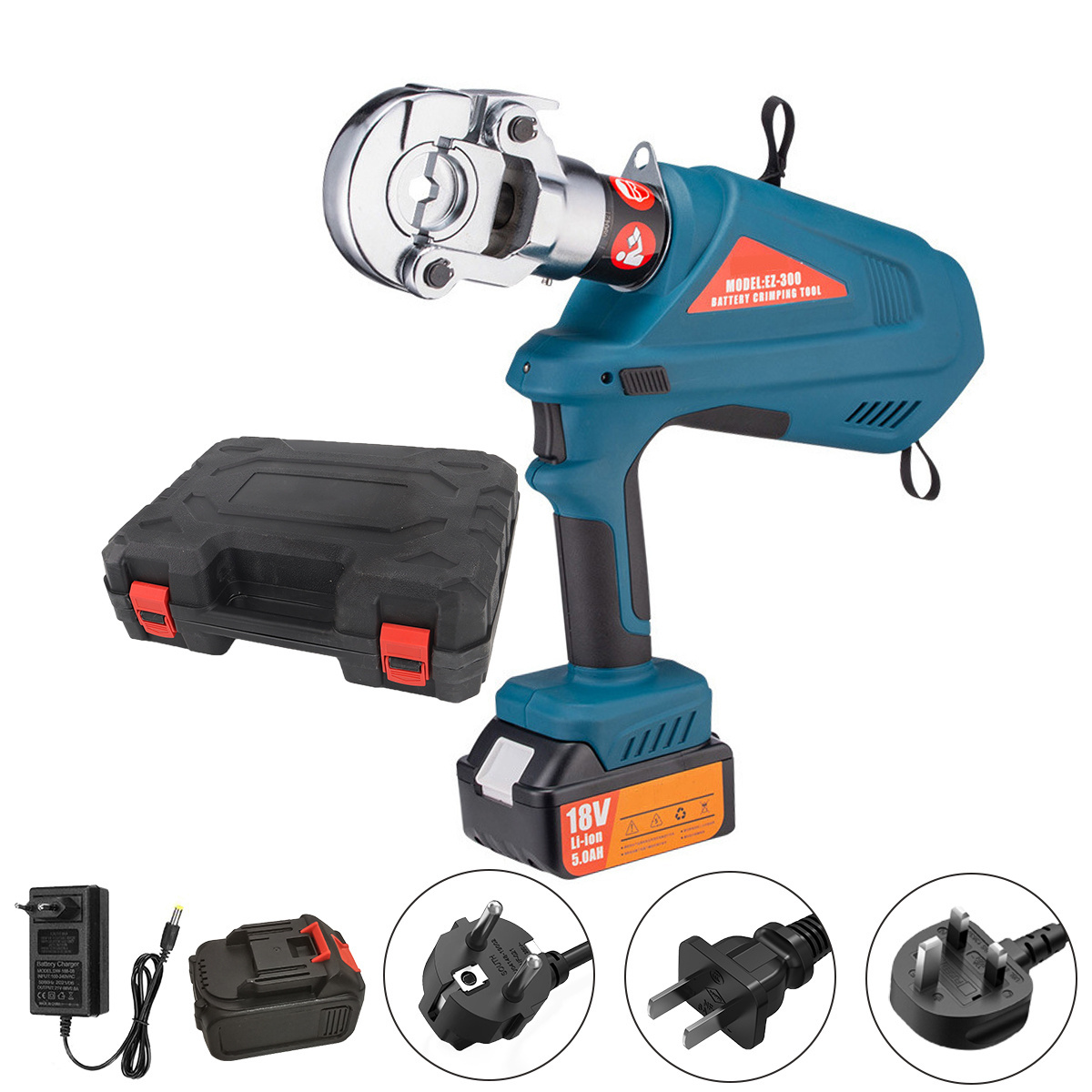

EZ-300
|
|
Output
|
60KN
|
|
Crimping range
|
Cu300mm²/Al240mm²
|
|
Trip
|
17mm
|
|
Voltage
|
18V
|
|
Battery
|
2PCS
|
|
Battert capacitance
|
5.0Ah
|
|
Charging time
|
1 hours
|
|
Hydraulic oil
|
15#low pour point anti-wear hydraulic oil about 210ml
|
|
Single crimping time
|
3*6s (depending on cable diameter)
|
|
Mold configuration
|
10,16,25,35,50,70,95,120,150,185,240 300,400mm²
|
|
Product features
|
1.The head can rotate 360°, with double number and double action hydraulic device design;
2.When the crimping iscompleted, the motor stops and returs automatically, and the oil can be returned manually if necessary;
3.18v 4.0AH high-performance lithium battery, one switch can control all tool functions
4.The PVC shell strengthens the machine body, which is not easy to break, and the safety valve device is set inside;
5.Automatic power off function. If the product is not applicable, the system will automatically power off to avoid loss.
|
|
Product model
|
EBS-400
|
|
Output
|
120KN
|
|
Crimping range
|
Cu400mm²/Al300mm²
|
|
Trip
|
42mm
|
|
Voltage
|
18V
|
|
Battery
|
2PCS
|
|
Battert capacitance
|
5.0Ah
|
|
Charging time
|
2 hours
|
|
Hydraulic oil
|
15#low pour point anti-wear hydraulic oil about 210ml
|
|
Single crimping time
|
3*6s (depending on cable diameter)
|
|
Mold configuration
|
10,16,25,35,50,70,95,120,150,185,240 300,400mm²
|
|
Product features
|
1.The head can rotate 360°, with double number and double action hydraulic device design;
2.When the crimping iscompleted, the motor stops and returs automatically, and the oil can be returned manually if necessary;
3.18v 4.0AH high-performance lithium
battery, one switch can control all tool functions
4.The PVC shell strengthens the machine body, which is not easy to break, and the safety valve device is set inside;
5.Automatic power off function. If the product is not applicable, the system will automatically power off to avoid loss.
|
|
Product model
|
ES-400
|
|
Output
|
120KN
|
|
Crimping range
|
Cu400mm²/Al300mm²
|
|
Trip
|
42mm
|
|
Voltage
|
18V
|
|
Battery
|
2PCS
|
|
Battert capacitance
|
5.0Ah
|
|
Charging time
|
2 hours
|
|
Hydraulic oil
|
15#low pour point anti-wear hydraulic oil about 210ml
|
|
Single crimping time
|
3*6s (depending on cable diameter)
|
|
Mold configuration
|
10,16,25,35,50,70,95,120,150,185,240 300,400mm²
|
|
Product features
|
1.The head can rotate 360°, with double number and double action hydraulic device design;
2.When the crimping iscompleted, the motor stops and returs automatically, and the oil can be returned manually if necessary;
3.18v 4.0AH high-performance lithium
battery, one switch can control all tool functions
5.The PVC shell strengthens the machine body, which is not easy to break, and the safety valve device is set inside;
6.Automatic power off function. If the product is not applicable, the system will automatically power off to avoid loss.
|
|
Product model
|
ES-240
|
|
Output
|
50KN
|
|
Trip
|
16mm
|
|
Voltage
|
18V
|
|
Battery
|
2PCS
|
|
Battert capacitance
|
2.0Ah
|
|
Charging time
|
40min
|
|
Single crimping time
|
3*6s (depending on cable diameter)
|
|
Mold configuration
|
16,25,35,50,70,95,120,150,185,240mm² (Note. 10mm² The mold is a complimentary mold)
|
|
Product model
|
ES-300
|
|
Output
|
50KN
|
|
Trip
|
17mm
|
|
Voltage
|
18V
|
|
Battery
|
2PCS
|
|
Battert capacitance
|
2.0Ah
|
|
Charging time
|
40min
|
|
Single crimping time
|
3*6s (depending on cable diameter)
|
|
Mold configuration
|
16,25,35,50,70,95,120,150,185,240mm² (Note. 10mm² The mold is a complimentary mold)
|
FAQ
|
Q1:
|
Can we have sample to test?
|
|
A:
|
Yes,we can offer one or two samples for clients to test with charging. When clients place an order, we will pay the sample money
back. |
|
Q2:
|
Do you factory do OEM?
|
|
A:
|
Yes, we do OEM and ODM.
|
|
Q3:
|
Do you have MOQ limited?
|
|
A:
|
We do small bulk wholoesale, That means even one carton is acceptable. For OEM, MOQ is 100-500pcs depend on your required model and packing.
|
|
Q4:
|
How can you ensure the quality?
|
|
A:
|
We test the prototype sample before development, we do user's test, abnormal test, durability test before mass production, we make inspection on finished goods before shipment.
|
