2L Lab Small Mini Instant Coffee Camel Milk Malt Syrup Black Tea Herbal Egg White Food Powder Spray Dryer Machine Price

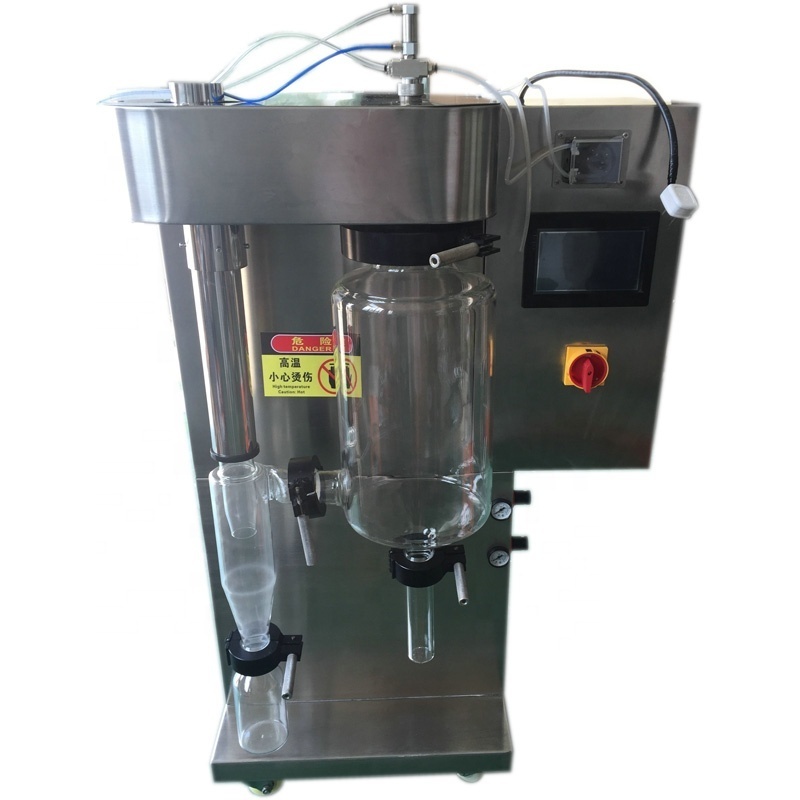

This lab scale spray dryer is our latest type which is the result of our constant innovation in this field of laboratory scale spray drying systems through longtime cooperation between Ollital and Shanghai JiaoTong university. It assembles many of new design, for example, small shape for free moving, combining air compressor and electrical heater inside the cabinet, glass spray and cyclone separator for inspecting. All the data and function are controlled by PLC, English language.

Product Application:

Various fields where the production of a free powder sample is required.

Ollital-1500 has successfully processed samples in the following areas: Beverage, Flavours and colourings, Milk and egg products, Plant and vegetable extracts, Synthetics Heat sensitive materials, Plastics polymers and resins, Perfumes, Blood, Ceramics and superconductors Biochemicals, Dyestuffs, Soaps and detergents, Foodstuffs, Adehesives, Oxides, Textiles, Bones, Teeth and tooth amalgam and many others.

Product Features:

1,Special for lab research, Min 20-30ml liquid to finish one test

2,All borosilicate glass for easy visual monitoring of process status.

3,Spray chamber, cyclone separator, receiving tank are all made of Borosilicate glass        which can resist strong acid/alkali, high temperature. It can work in a no-pollution and stable environment.

4,Easy to clean and very simple to assemble and break down.

5,The air compressor is no oil and don’t pollute compress air. The sound is low than 50db and following the GMP understands.

6,inlet/outlet temperature is accurate controlled by PID

7,The unit is self contained and supplied complete and ready for immediate operation.

8,Using screen touchable face display operation, control temperature, airflow volume, air pressure, pump speed and de-blocker frequency.

9,Product feeding with RS2559605 rotary pump, capacity is adjustable

10,Automatic de-blocking device prevents the nozzle from becoming blocked and variably controlled.

Technical Parameters:

FENGYU Laboratory spray dryer according to different spray drying nozzle could classify as two-fluid spray dryer and centrifugal spray dryer, if you use it it in laboratory or small scale product, suggest choose two-fluid spray drying machineand its capacity is 1500ml/h to 3000ml/h, if you need 3000ml/h, 5000ml/h, 10000ml/h and larger capacity please choose centrifugal spray drying equipment.
