Quick Details
-
Warranty:
-
1Year
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
EWORK
-
Model Number:
-
ZIT-R2
-
Frequency:
-
50 - 60hz
-
Applicable Pipe Thread:
-
1/2"-2"
-
Product name:
-
Pipe threading machine
-
Die head:
-
Quick-open
-
Feature:
-
High Efficiency
-
Motor power:
-
750W
-
Application:
-
Black Steel Pipe Threading
-
Certification:
-
CE,ISO
Quick Details
-
No-Load Speed:
-
40rpm
-
Dimensions:
-
65x41x25 cm
-
Weight:
-
76/65 kgs
-
Warranty:
-
1Year
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
EWORK
-
Model Number:
-
ZIT-R2
-
Frequency:
-
50 - 60hz
-
Applicable Pipe Thread:
-
1/2"-2"
-
Product name:
-
Pipe threading machine
-
Die head:
-
Quick-open
-
Feature:
-
High Efficiency
-
Motor power:
-
750W
-
Application:
-
Black Steel Pipe Threading
-
Certification:
-
CE,ISO
Product Description

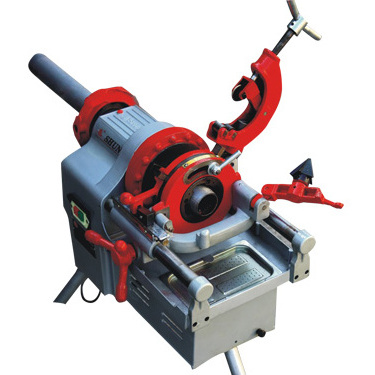

Electric threading machine
：
Electric threading machine is an electric tool equipped with a positive and negative device for processing the external thread of a pipe. Also known as: electric pipe threading machine, threading machine, pipe threading machine. It makes the pipe thread processing easy and fast during pipe installation. Reduce the labor intensity of pipeline installation workers.
Operating Principle：
When use the threader, first put the pipe to be processed into the pipe chuck, hit the chuck, press the start switch, the pipe will rotate with the chuck, adjust the size of the die opening on the die head. Then set length and turn the feed wheel clockwise to make the die cutter on the die head stick to the end of the rotating pipe with constant force, and the die cutter will automatically cut the pipe thread, and the cooling system will automatically spray oil for cooling. When the thread mouth is processed to the preset length, the die cutter will automatically open, and the thread mouth processing is finished. Turn off the power, knock the chuck open, and take out the tube.
When use the threader, first put the pipe to be processed into the pipe chuck, hit the chuck, press the start switch, the pipe will rotate with the chuck, adjust the size of the die opening on the die head. Then set length and turn the feed wheel clockwise to make the die cutter on the die head stick to the end of the rotating pipe with constant force, and the die cutter will automatically cut the pipe thread, and the cooling system will automatically spray oil for cooling. When the thread mouth is processed to the preset length, the die cutter will automatically open, and the thread mouth processing is finished. Turn off the power, knock the chuck open, and take out the tube.
Main Parts：
The threading machine is composed of: machine body, motor, reduction box, pipe chuck, die head, cutter holder, feed device, and cooling system.
Models and working range
The types of pipe threading machines generally include: 2-inch pipe threading machine (ZIT-R2), processing range: 1/2"-2" (inch), 3-inch pipe threading machine (ZIT-R3) processing range: 1/ The processing range of 2"-3" (inch) and 4-inch pipe threader (ZIT-R4) is: 1/2"-4" (inch), and the processing range of 6-inch pipe threader (ZIT-R6) is: 2 1 /2"-6"(inch)
The types of pipe threading machines generally include: 2-inch pipe threading machine (ZIT-R2), processing range: 1/2"-2" (inch), 3-inch pipe threading machine (ZIT-R3) processing range: 1/ The processing range of 2"-3" (inch) and 4-inch pipe threader (ZIT-R4) is: 1/2"-4" (inch), and the processing range of 6-inch pipe threader (ZIT-R6) is: 2 1 /2"-6"(inch)
Specification
|
Model
|
ZIT-R2
|
ZIT-R3
|
ZIT-R4
|
ZIT-R6
|
|
Working Range
|
1/2" - 2"
|
1/2" - 3"
|
1/2" - 4"
|
2 1/2" - 6"
|
|
Power
|
750W
|
750W
|
750W
|
750W
|
|
Voltage
|
220V
|
220V
|
220V
|
220V
|
|
Speed
|
28RPM
|
27RPM
|
24/9RPM
|
18/6RPM
|
|
Net Weight
|
65KG
|
100KG
|
120KG
|
230KG
|
|
Total Weight
|
75KG
|
110KG
|
135KG
|
210KG
|
|
Dimension
|
64*41*52CM
|
85*55*55CM
|
95*62*62CM
|
106*72*70CM
|
|
Accessory
|
1/2"-3/4", 1"-2" Dies & Oil bottle & Screwdriver & 3 Legs
|
1/2"-3/4", 1"-2", 2 1/2"-3" Dies & Oil bottle & Screwdriver & 4 Legs
|
1/2"-3/4", 1"-2", 2 1/2"-4" Dies & Oil bottle & Screwdriver & 4 Legs
|
2 1/2"-4", 5"-6" Dies & Oil bottle & Screwdriver & 4 Legs
|
