Quick Details
-
Weight:
-
480 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
Quick Details
-
Brand Name:
-
Zeyi
-
Place of Origin:
-
Shandong, China
-
Marketing Type:
-
hot sale
-
Weight:
-
480 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
Product Description

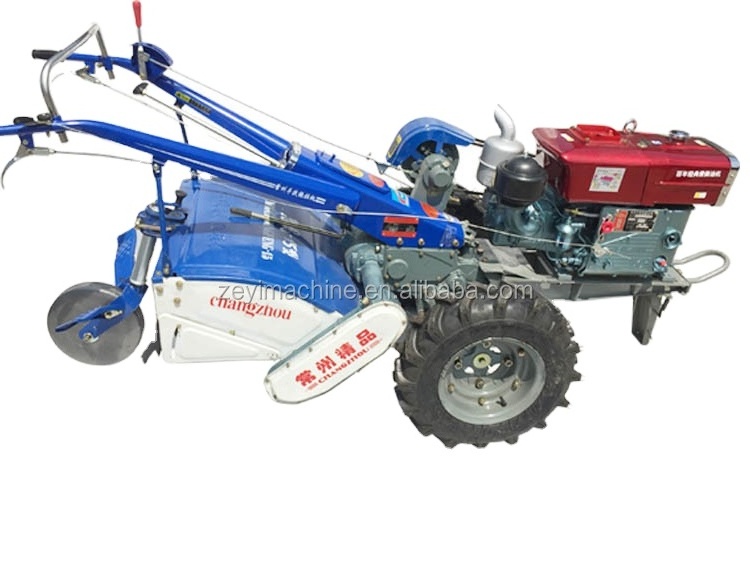

| DF Type walking tractor with Farm implement | ||||||||
| DF181 | 18 hp walking tractor | |
| Engine | Pattern | Vertical, One Cylinder, Four Stroke, diesels powered, Water-cooled |
| Model | 1105 | |
| Displacement(L) | 1.194 | |
| Oil Consumption | 320 | |
| (g/ Kilometer. h) | ||
| Engine Oil Consumption (g/ Kilometer. h) | 2.72 | |
| Rated Power(kw) | 13.23 | |
| Rated Speed(rpm) | 2000 | |
| Machine Parameters | Type | Pull and Drive |
| Overall Size(mm) | 2680*960*1250(without seat) | |
| Wheel Tread(mm) | 800 | |
| Minimum Ground Clearance(mm) | 185 | |
| Minimum Turning Radius(m) | 0.9 | |
| Structural Weight(kg) | 360 (with connecting frame), 480(with rotary tiller) | |
| Tyre | 6.00-12 | |
| Theoretical Speed(Kilometer/h) | Forward:1.4,2.5,4.1,5.3,9.4,15.3 | |
| Reverse:1.0,3.8 | ||
| Rated Traction(N) | 2400 | |
| Gearbox | (3+1)×2 | |
| Oil Type | 0# in summer,-10 or 20 in winter | |
| Cooling Type | Evaporation | |
| Rear-Wheel Diameter(mm) | 340 | |
