Quick Details
-
Brand Name:
-
Zhongci
-
Processing Service:
-
Rolling
-
Product name:
-
Inert Ceramic Alumina Ball
-
Raw material:
-
Alumina Powder
-
Size:
-
3-50mm
-
Shape:
-
Ball
-
Density:
-
3.5
-
Keywords:
-
92% ceramic ball
-
Purity:
-
100%
-
Max Working Temperature:
-
1400-1500C
Quick Details
-
Material:
-
Alumina Ceramic
-
Place of Origin:
-
Jiangxi, China
-
Model Number:
-
ZC-IB92
-
Brand Name:
-
Zhongci
-
Processing Service:
-
Rolling
-
Product name:
-
Inert Ceramic Alumina Ball
-
Raw material:
-
Alumina Powder
-
Size:
-
3-50mm
-
Shape:
-
Ball
-
Density:
-
3.5
-
Keywords:
-
92% ceramic ball
-
Purity:
-
100%
-
Max Working Temperature:
-
1400-1500C
Product Description

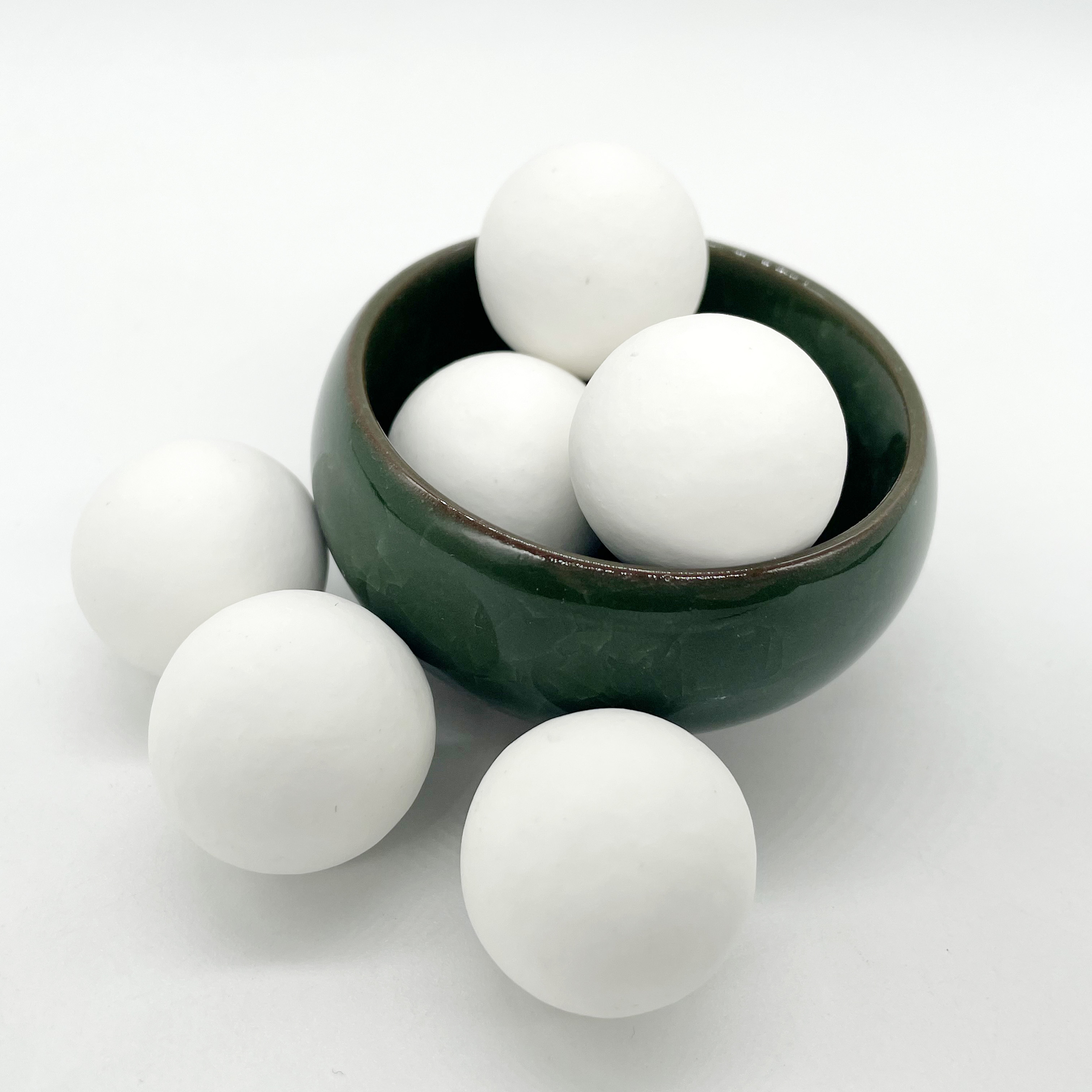

92~99% Ceramic Ball Support Media Inert Ceramic Alumina Ball
Inert ceramic (porcelain) balls are used to fill and support the catalyst layer in catalytic columns and reactors, and as grinding bodies in ball mills.
The balls are made of high quality solid pressed silicate porcelain with an aluminum oxide content of Al2O3 –92% (in the range of 92~99%). They have high mechanical strength, resistance to acid, alkali, and some organic solvent, and resistance to thermal shock, which makes them all ideal choice for support of all types of catalysts.
Ceramic Balls are available to the order of sizes from 3 mm to 50 mm in diameter. Other types of ceramic products can be made upon your request indicating the necessary technical data.
Inert ceramic (porcelain) balls are used to fill and support the catalyst layer in catalytic columns and reactors, and as grinding bodies in ball mills.
The balls are made of high quality solid pressed silicate porcelain with an aluminum oxide content of Al2O3 –92% (in the range of 92~99%). They have high mechanical strength, resistance to acid, alkali, and some organic solvent, and resistance to thermal shock, which makes them all ideal choice for support of all types of catalysts.
Ceramic Balls are available to the order of sizes from 3 mm to 50 mm in diameter. Other types of ceramic products can be made upon your request indicating the necessary technical data.
The final price for Inert Ceramic Balls depends on the quantity, delivery terms and form of payment.
Our company is engaged in the production and sale of ceramic packing, including Inert Alumina Ceramic Balls. All our products pass strict quality control and comply the necessary standards. Since we are a manufacturer and dealership margins are not included in
the price of the final product, we have a low price for Ceramic Balls. Corresponding quality documents are provided. Detailed technical specifications and dimensions Ceramic Balls are shown below.
Ceramic Balls (also known as support ball, inert ball and catalyst support media) were very important component in the catalytic process in the refinery, gas processing and petrochemical industry. Its main function is to act as packing material and at the same time to support the catalyst bed in order to prevent breakthrough or loss of catalyst or adsorbent materials downstream of the reactor vessels due to the high pressure and temperature inside the reactor vessels during the operation. Ceramic ball come up with a few different sizes, which are 1/8", 1/4", 3/8", 1/2", 3/4", 1", 1¼", 1½", 2". The size was arranged layer by layer at the top and bottom of the vessel, with different sizes of ceramic ball. Chemical reaction in a reactor (designations on the diagram): The raw materials flow down from the upper part. The raw materials go through the inert balls, to the catalyst area. The raw materials chemically react at the catalyst area and get chemically engineering. It becomes the secondary raw materials (products).The chemical engineered materials (products) pass through the inert balls and flows to next process.Site source: Inert Ceramic Balls for Catalyst Support Media
Chemical reaction in a reactor (designations on the diagram):
The raw materials flow down from the upper part.
The raw materials go through the inert balls, to the catalyst area.
The raw materials chemically react at the catalyst area and get chemically engineering. It becomes the secondary raw materials (products).
The chemical engineered materials (products) pass through the inert balls and flows to next process.Site source: Inert Ceramic Balls for Catalyst Support Media
Size Information
Packing and mechanical properties of Inert Ceramic Balls:
|
Size
|
|
Crush strength
|
|
|
|
|
|
|
|||||||
|
|
|
Kg/particle
|
|
|
|
KN/particle
|
|
|
|||||||
|
1/8" (3mm)
|
|
>203
|
|
|
|
>2
|
|
|
|||||||
|
1/4" (6mm)
|
|
>459
|
|
|
|
>4.6
|
|
|
|||||||
|
1/2" (13mm)
|
|
>877
|
|
|
|
>8.7
|
|
|
|||||||
|
3/4" (19mm)
|
|
>1220
|
|
|
|
>12
|
|
|
|||||||
|
1" (25mm)
|
|
>1630
|
|
|
|
>16
|
|
|
|||||||
|
1-1/2" (38mm)
|
|
>2340
|
|
|
|
>23
|
|
|
|||||||
|
2" (50mm)
|
|
>3460
|
|
|
|
>34
|
|
|
|||||||
Chemical composition for 23% Inert Alumina Ceramic Ball:
|
Al2O3 + SiO2
|
Al2O3
|
SiO2
|
Fe2O3
|
CaO
|
MgO
|
K2O + Na2O
|
Other
|
|
> 99.2%
|
> 99%
|
<0.1%
|
0.05%
|
0.05%
|
0.5%
|
< 0.05%
|
< 0.1%
|
Detailed Images
-
S emi-finished goods
Size measure
|
Item
|
|
|
|
|
Value
|
|
|
|
|||||||
|
Water absorption (%)
|
|
|
|
|
<1
|
|
|
|
|||||||
|
Bulk density (g/cm3)
|
|
|
|
|
1.9-2.2
|
|
|
|
|||||||
|
Specific gravity (g/cm3)
|
|
|
|
|
>3.6
|
|
|
|
|||||||
|
Operation temp.(max) (℃)
|
|
|
|
|
1650
|
|
|
|
|||||||
|
Apparent porosity (%)
|
|
|
|
|
<1
|
|
|
|
|||||||
|
Moh's hardness (scale)
|
|
|
|
|
>9
|
|
|
|
|||||||
|
Acid resistance (%)
|
|
|
|
|
>99.6
|
|
|
|
|||||||
|
Alkali resistance (%)
|
|
|
|
|
>85
|
|
|
|
|||||||
Product Process
Manufacture Specification
Production and Application of Inert Ceramic (Porcelain) Balls as supporting carriers for catalysts, absorbents, as molecular sieves; to fill the reaction apparatus, they act as a distributor of reagents and coolant in the petrochemical and chemical industries; as grinding bodies for milling materials in ball mills when grinding and mixing chemicals, pharmaceuticals, dyes,grinding metal surfaces, grinding food raw materials in the food industry. The balls have extremely low water absorption (real <0.1%), high acid resistance (>99.6%), and a long service life subject to operating conditions. Porcelain balls are made of silicate (alumina) porcelain by powder compaction of the mass, molding, pulling through the mouthpiece, with diameters ranging from 3 mm to 50 mm. Other types of ceramic products can be made upon your request indicating the necessary technical data.Products are packed in plastic bags in an amount not exceeding a weight of 30 kg. Transportation in the container is allowed without pallets.Site source: Inert Ceramic Balls for Catalyst Support Media
