Quick Details
-
Application:
-
Villa
-
Type:
-
Ac Motor Swing gate opener
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
CHISUNG
-
Model Number:
-
New CSSGO-10-AC-3.5m-500kg
-
Power supply:
-
AC220V±10V 50/60HZ,AC110V±10V, 60Hz
-
Absorbeb power of motor:
-
320w
-
Motor speed:
-
1.6cm/s
-
Certificate:
-
CE Approved
-
Remote control:
-
433.92MHZ + Rolling Code
-
Max gate weight and Max gate width:
-
500KGX2,3.5metersx2
-
Rotational speed:
-
1450RPM
-
Protection Class:
-
IP45,Low noise,stable and reliable
-
Rod's max travel:
-
400mm
-
Running time protection:
-
Adjustable
Quick Details
-
Warranty:
-
1 Year
-
After-sale Service:
-
Online technical support, Return and Replacement
-
Project Solution Capability:
-
NONE
-
Application:
-
Villa
-
Type:
-
Ac Motor Swing gate opener
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
CHISUNG
-
Model Number:
-
New CSSGO-10-AC-3.5m-500kg
-
Power supply:
-
AC220V±10V 50/60HZ,AC110V±10V, 60Hz
-
Absorbeb power of motor:
-
320w
-
Motor speed:
-
1.6cm/s
-
Certificate:
-
CE Approved
-
Remote control:
-
433.92MHZ + Rolling Code
-
Max gate weight and Max gate width:
-
500KGX2,3.5metersx2
-
Rotational speed:
-
1450RPM
-
Protection Class:
-
IP45,Low noise,stable and reliable
-
Rod's max travel:
-
400mm
-
Running time protection:
-
Adjustable
Product Description
1. It could open inside or Outside;
2. Feel free to contact us to provide electronic manuals, e.ma.il I.D: chisung07@chisung.com.cn
3. Heavy duty and huge motor ;
4.Choose accessories according to your needs.
Product function & Selling points.
1.Open and close the gate by remote control and keypad
2.Soft start/close
3.Emergency release key in case of power failure
4.Dual/Single gate running mode
5.Optional master and slave gate running;
6.Adjustable opening/closing interval between master and slave gate.
7.Stop/Reverse in case of obstruction during gate opening/closing.
8.The force of the motor can be programmed
9.Optional photocell protection .
10.Built in adjustable auto-close (programmable from 0-99 sec)
11.Digital display indicates the running situation and setting menu
12.Reliable electromagnetism limit for easy to adjust.
1.Open and close the gate by remote control and keypad
2.Soft start/close
3.Emergency release key in case of power failure
4.Dual/Single gate running mode
5.Optional master and slave gate running;
6.Adjustable opening/closing interval between master and slave gate.
7.Stop/Reverse in case of obstruction during gate opening/closing.
8.The force of the motor can be programmed
9.Optional photocell protection .
10.Built in adjustable auto-close (programmable from 0-99 sec)
11.Digital display indicates the running situation and setting menu
12.Reliable electromagnetism limit for easy to adjust.
Specification
|
Product Name
|
Liner Arm Actuator Electric Piston Swing Gate Openers With Remote Complete Kit
|
|
Model
|
CSSGO-10 AC ordinary
|
|
Power Supply
|
AC220V±10V 50/60HZ,AC110V±10V, 60Hz
|
|
Electric motor
|
AC220/110V
|
|
Current
|
1.5A
|
|
Absorbeb power of motor
|
320W
|
|
Max each leaf length
|
3.5meters, it is double motors 3.5 meters x 2
|
|
Max each gate weight
|
500kg, that is double motors 500kg meters x 2
|
|
Motor speed
|
1.6cm/s
|
|
Rotational speed
|
1450RPM
|
|
Thrust
|
3200N
|
|
Running time protection
|
Adjustable
|
|
Rod's max travel
|
400mm
|
|
Auto closing delay time
|
programmable (from 0 to 99 seconds)
|
|
Gate move speed
|
12S/90degrees
|
|
Operating Temperature
|
-20°C~+70°C
|
|
Relative Humidity
|
30%
|
|
Protection class
|
IP45
|
|
Application
|
home automation
|
|
limit switch
|
No
|
|
condenser
|
8F(AC220V),25uf(AC110V)
|
|
Door opening angle
|
90°,100°,110°,120°
|
|
Packing
|
19kg, Together 1 cartons: 790*300*280mm
|
Packing & Delivery

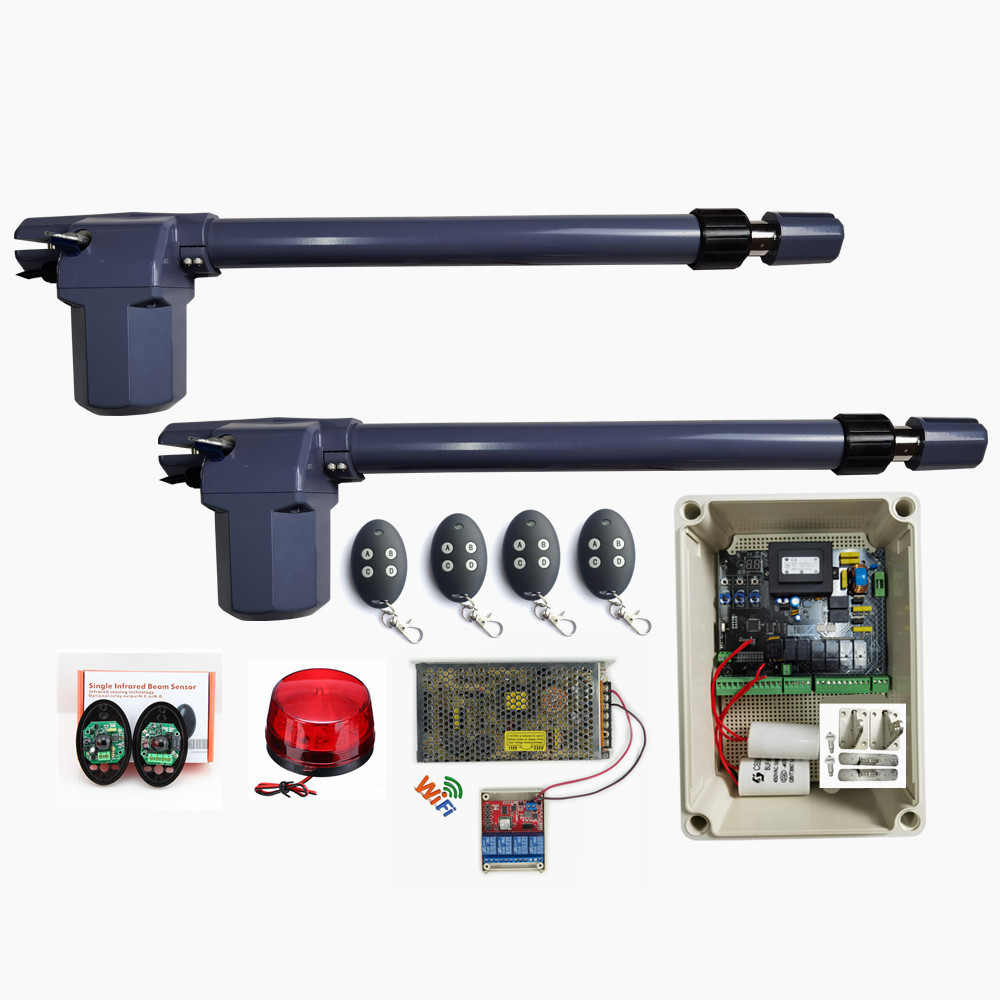

Double Swing gate opener standart kit
2 motor + 1 control panel(board+box) + 2 remote control +2 capacitors + others mounting brackets.
2 motor + 1 control panel(board+box) + 2 remote control +2 capacitors + others mounting brackets.
1 pc WIFI board +
Power converter ；
2pcs extra remote key ;
1 pair photocell sensor ;
1 pcs DC24V Flashing Lamp.
