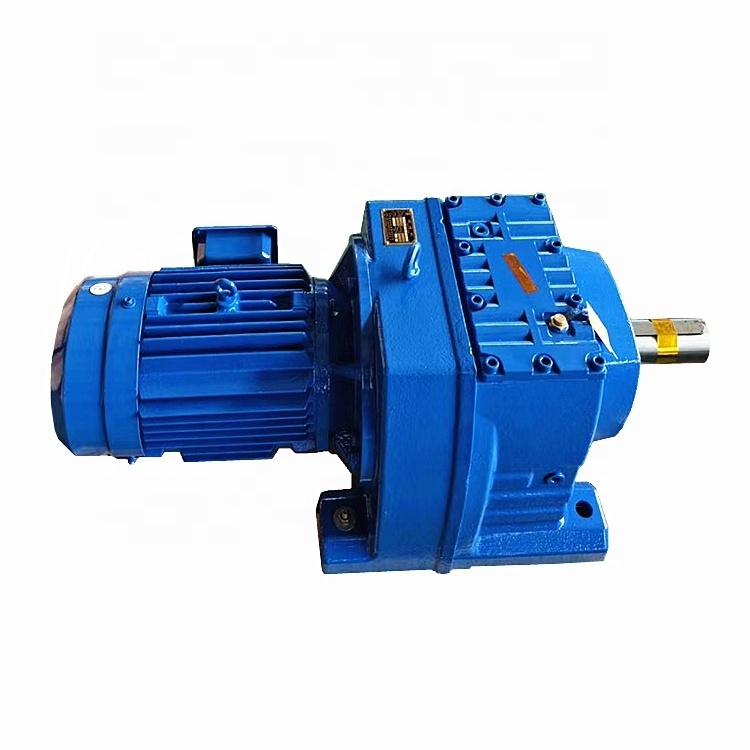

R YE low speed reducer electric 380V/220V 10hp helical gear motor 15KW

R YE low speed reducer electric 380V/220V 10hp helical gear motor 15KW

FOB Reference Price: Get Latest Price

≥1 Sets

US $200

≥50 Sets

US $120

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Brand Name:: TIANQI

Model Number:: YE2

Frequency:: 50 60HZ

Pole:: One/Two/Three Stage Speed Reducer

Ratio:: 30

Housing Material:: Cast Iron

Working temperature:: -40~45℃

Application:: mining, chemical industry,steel metallurgy,lifting transpor and ect.

Process:: Carburizing, Nitriding , Grinding

Mounting Position:: Horizontal,Vertical,Flange

Color:: Blue,Green,Gray,Red

Quick Details

AC Voltage:: 220 380 460V

Warranty:: 1 year

Place of Origin:: Shandong, China

Brand Name:: TIANQI

Model Number:: YE2

Frequency:: 50 60HZ

Pole:: One/Two/Three Stage Speed Reducer

Ratio:: 30

Housing Material:: Cast Iron

Working temperature:: -40~45℃

Application:: mining, chemical industry,steel metallurgy,lifting transpor and ect.

Process:: Carburizing, Nitriding , Grinding

Mounting Position:: Horizontal,Vertical,Flange

Color:: Blue,Green,Gray,Red

Product Overview

PROFESSIONAL MANUFACTURE

—— SINCE 1995

R series Helical Gear Motor Reducer

Chinese electric motor speed reducer is widely used in mining machinery, chemical industry,steel metallurgy, light
industry,environmental protection, paper making, printing, lifting transport, food industry and so on.
Main Series Product: R series helical gear motor reducer, K series spiral bevel gear reducer motor, NGW, P series Planetary Gear reducer, H B series gearbox, Z (ZDY, ZLY, ZSY, and ZFY) serial hard tooth surface cylindrical gear reducer box, D (DBY and DCY) serial hard tooth surface cone gear reducer, cycloid reducer, ZLYJ Extruder Gearbox etc. Meanwhile, map sample processing business can be undertaken.

FEATURES AT A GLANCE

R series Helical Type Gear Motor

● It realized serialization and modularization with compact structure and wide range of transmission ratio.

● The transmission efficiency reach up to 96%. ● The gear processed by Carburizing, Nitriding & Grinding. ● High efficiency, superior performance with less energy consumption High precision gear, steady transmission, low noise, large load capacity, long service life. ● Support various of installation method.

Spiral Bevel Gear Motor

Worm Gear Motor

Vertical type for Agitator

PRODUCT SPECIFICATIONS

Size

R 57

R 67

R 77

R 87

R 97

R 107

R 137

R 147

R 167

Structure

R RF

Input power rating(kw)

0.18-7.5KW

0.18-11 KW

0.55-22KW

0.55-30KW

2.2-45 KW

5.5-55KW

11-90KW

11-160KW

Ratio

4.39-186.89

4.29-199.81

5.21-195.24

5.36-246.54

4.49-289.74

5.06-249.16

5.15-222.60

5.00-163.31

10.24-229.71

Permissible torque N.m

450

600

820

1550

3000

4300

8000

1300

18000

R RF series helical gearbox gear reducer motor

Gear Reducer is a mechanical transmission in many fields of the national economy. The product categories covered by the industry include all kinds of gear reducer, planetary gear reducer and worm reducer, as well as various special transmission devices such as speed increasing device, speed control Devices, including various types of flexible transmission devices, such as compound transmission. Products and services in the field of metallurgy, nonferrous metals, coal, building materials, ships, water conservancy, electricity, construction machinery and petrochemical industries.
In all fields of national economy and national defense industry, gearbox products have a wide range of applications. Food light industry, electric machinery, construction machinery, metallurgy machinery, cement machinery, environmental protection machinery,electronic appliances, road construction machinery, water conservancy machinery, chemical machinery, mining machinery, conveyor machinery, building materials machinery, rubber machinery, petroleum machinery and other industries have strong demand of Reducer products. R YE low speed reducer electric 380V/220V 10hp helical gear motor 15KW .

PRODUCT CONFIGURATION

Working principle of gear reducer

When the output speed of the motor of the gear reducer is input from the driving shaft, the small gear of the reducer will move.

The large gear is linked with the small gear, so the movement of the small gear will drive the movement of the large gear.

The number of teeth is more than the number of teeth on the pinion, so the speed of the big gear will be slower than that of the pinion, and then output through the output shaft of the big gear, thus playing the role of output deceleration.

Gear reducer application range

The gear used in the gear reducer is carbon-quenched and high-strength low-carbon alloy steel, which has a high design and manufacturing process, and also has the characteristics of good foundation and high precision of the tooth surface. Gear reducers are generally used in low-speed and high-torque transmission equipment，it have extremely common applications in the transmission and drive fields of textile, printing and dyeing, light industry, food, metallurgy, mining, petroleum,chemical, construction, transportation, machinery and other industries.

The role of gear reducer

1. Slow down. Deceleration In industrial production, it is often necessary to use different frequency rates to produce operations. The gear reducer changes the frequency conversion deceleration of the equipment during operation through a certain function. 2. Change the torque. The gear reducer achieves the purpose of changing the speed of the equipment by changing the torque. Different equipment has different maximum torque values and cannot exceed that value. 3. Reduce inertia. The gear reducer will reduce the inertia of the target machine while working.

20CrMnTi Hard Tooth Gear

Copper Coil High Quality Electric Motor

Famous Brand Bearings
