Hot sales dalian konform aluminum continuous extrusion machine for aluminum tubes

Application:

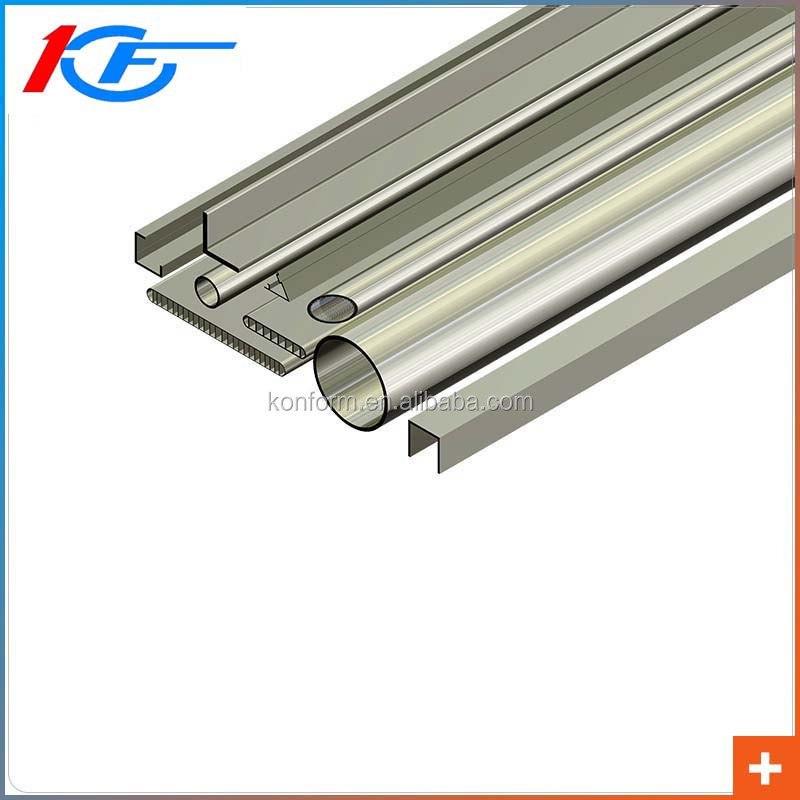

Manufacture the round tubes used in the refrigerator and the freezer, the multi-void tubes used in the automotive air condition.

Main Features

The revolving extrusion wheel is driven by a motor, and it guides the feedstock to enter the wheel groove. The feedstock is dragged into the chamber by the friction between the wheel groove and feedstock. The friction generates high temperature and heavy pressure, under the high temperate and pressure, the metal is formed into aluminum strip through a die. The aluminum strip by continuous extrusion is soft and does not need anneal with smooth surface, high precision dimension.

Centered around the Continuous Extrusion Machine, the line is equipped with the straightener, cooling systems, length counter, take-up stand and other auxiliary equipments based on the actual requirement.

Production flow: Aluminum Feedstock Pay-off → Straightener→ Ultrasonic Cleaning→ Continuous Extrusion → Product Cooling →Blow Dry → Length Counter → Dancer → Take-up.

Dalian Konform Technical Co., Ltd has developed a long relationship with Continuous Extrusion Engineering Research Center of Dalian Jiaotong University. It is a professional company engages in the research and application of the continuous extrusion technology. The company occupies a floor space of 60,000 square meters, has a staff of 200 people in which 35 are professors, associate professors, and senior engineers. The company’s continuous extrusion R&D bases and production workshop are fitted with advanced equipments.

Dalian Konform Technical Co., Ltd has systematically researched continuous extrusion and cladding technology since 1984. Continuous extrusion complete equipments developed by the company and research results are highly appraised by the industrial and academic circles at home and abroad, and it has awarded national and provincial awards for scientific and technological advancement for twelve times. It won national award for scientific and technological advancement again in 2008.

Dalian Konform Technical Co., Ltd took the lead in researching and developing 250, 300, 350, 400, 500, 550 and 630 series of copper and aluminum continuous extrusion and cladding complete equipments (including 18 varieties) with 30 patent technologies. At present, it has equipped more than 1,300 production lines for users at home and abroad. Products are sold in 29 provinces, cities, and municipalities around China, which are exported to 46 countries and areas, including Asia, Europe, America, Austria, and Africa.
