Quick Details
-
Place of Origin:
-
Shandong, China
-
Warranty:
-
12 months
-
Axle:
-
50x50mm Square Solid Electric Brake
-
Standard:
-
ADR
-
Color:
-
All color available
-
L/T:
-
35days
Quick Details
-
Max Payload:
-
1500kg
-
Brand Name:
-
LUCKY
-
Size:
-
4325*2270*2590mm
-
Place of Origin:
-
Shandong, China
-
Warranty:
-
12 months
-
Axle:
-
50x50mm Square Solid Electric Brake
-
Standard:
-
ADR
-
Color:
-
All color available
-
L/T:
-
35days
Welcome you to our factory, the biggest horse trailer factory in Jinan city, with more than 10 years experiences on horse trailer design and production.

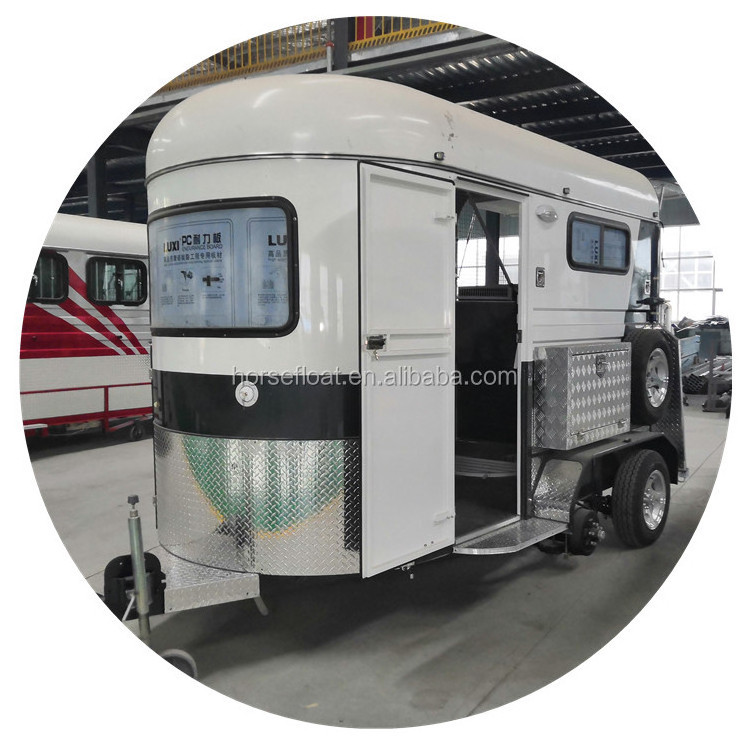

2HSL-D china horse trailer, it is one straight load deluxe version, it is with living area, it is a very popular model in Australia and New Zealand.
Generally speaking, people will choose this configuration:
1) Front kitchen with cupoard
2) Front tack box
3) Water tank, sink, pump, filling nozzle
4) Fold up beds
5) Roof lining
6) Side tooling box
All trailers are with brake away system, dual axle with electric brake, safty and reliable.
| Model Number | 2HSL-D | Packing | 3sets/40HQ |
| Overall Dimension | 4325*2270*2590mm | Dimension of Body | 3475*1750*2230mm |
| Internal Dimension | 3450*1700*2155mm | Color | Single or customized |
| Tare weight | 1400KG | ATM | 2900KG |
| Model Number | 2HSL-D |
| Overall Dimensions | 4325*2270*2590mm |
| Dimension of Body | 3475*1750*2230mm |
| Maximum Internal Dimension of body | 3450*1700*2155mm |
| Chassis | hot-galvanized RHS (3.5mm-4.0mm) |
| Frame | hot-galvanized RHS(2.5mm) |
| Body | galvanized(iron) sheet(1.0mm-1.5mm) |
| Roof | glass fibre reinforced plastic 3475*1750mm |
| Wheel/Tyre | alloy wheels 185R14C |
| Spare Wheel | 1,mounted outside |
| Suspension | 7-leaf plate spring suspension(400KG/leaf),Independent |
| Axles | 50x50mm Square Solid Electric Brake |
| Brake System | both axle electric brake |
| Front Window | 1220*610 polycarbonate wind shield |
| Side Window | two rectangle(diamond) sliding windows,one each side |
| Turn Lights | two each side(except tail lights) |
| Tail Lights | two sets |
| Horse Divider | soft cushion |
| Decorative Front panel | aluminium checkered plate 1.2mm |
| Mudguard | protected by aluminium checkered plate |
| Pedal Plate | decorated with aluminium checkered plate |
| External Tie Hooks | four,two each side |
| Jockey Wheel | swing-up jockey wheel |
| Cupboard | One set |
| Roof Vents | two vents |
| Saddle Stents | hangers in saddle box |
| Toolbox | 800*550*200mm,made of stainless or aluminium |
| Hay Rack | yes,horse bay tail |
| Tailgate(upper) | 1800*1065mm, pneumatic spring-loaded |
| Tailgate/Ramp Door | 1800*1210mm, pneumatic spring-loaded,10mm rubber matting |
| Rear door | Rear open Door,not lift up |
| Horse Area | 10mm rubber floor |
| Side Area Inner | 6mm rubber matting |
| Taillight Mounting Plate | aluminium checkered plate |
2HSL-D 2 horse trailer, it is 3pcs/40HC container
L/T: 25days
