Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Sunrise
-
Model Number:
-
QWB, QWB
-
Product Name:
-

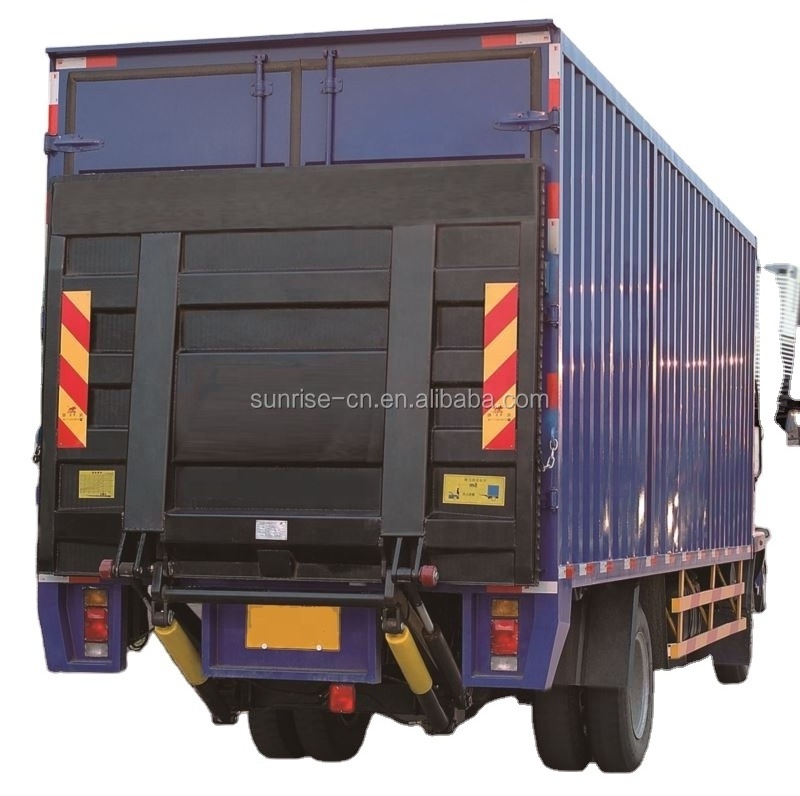

Cargo truck hydraulic tail lift tail gate
-
Loading:
-
1-2.5 ton
-
Mounting Class:
-
3
-
Package:
-
nude package in wooden box
-
Warranty:
-
12 months
Quick Details
-
OE NO.:
-
QWB
-
Size:
-
1900*1700
-
Material:
-
steel/ Aluminum
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Sunrise
-
Model Number:
-
QWB, QWB
-
Product Name:
-
Cargo truck hydraulic tail lift tail gate
-
Loading:
-
1-2.5 ton
-
Mounting Class:
-
3
-
Package:
-
nude package in wooden box
-
Warranty:
-
12 months
Product Description
Specification
|
CUSTOMIZED AVAILABLE
|
|
|
|
|||
|
Description /Model
|
1T/1.5T
|
1.5T
|
2T
|
|||
|
Panel Size（Mm)
|
1700*1600
|
1800*1600
|
2000*1800
|
|||
|
|
1800*1600
|
1800*1700
|
2100*1800
|
|||
|
|
1800*1700
|
1900*1700
|
2200*1800
|
|||
|
|
1900*1700
|
It can be made according to the width of the carriage
|
|
|||
|
Rated Capacity(Kg)
|
1000
|
1500
|
2000
|
|||
|
Average Lifting Speed(Mm/S)
|
60-80
Speed is adjustable |
|
|
|||
|
Net Weight(Kg)
|
330
|
380
|
450
|
|||
|
Motor Power(Kw)
|
2
|
2.0/2.2/2.5
|
2.0/2.2/2.5
|
|||
|
Motor
|
DC12V-24V/100AH-160AH
|
|
|
|||
|
Bracket Arm Length(Mm)
|
600/750/800
|
600/750/800
|
600/750/800
|
|||
|
Bracket Inner Width(Mm)
|
900/1020
|
900/1020
|
900/1020
|
|||
|
Applicable Carriage Ground Height(Mm)
|
700-1550
|
700-1550
|
700-1550
|
|||
|
Open And Close Speed(Mm/Sec)
|
10
|
10
|
10
|
|||
|
Hydraulic Oil
|
32#/46# Antiwear hydraulic oil
|
|
|
|||
|
Working Inclination
|
5°-9°
|
|
|
|||
