Quick Details
-
Table Travel (Z) (mm):
-
0 mm
-
Travel (W-axis) (mm):
-
650 mm
-
Marketing Type:
-
NEW PRODUCT
-
Range of Spindle Speed(r.p.m):
-
75 r.p.m
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
SOSEN
-
Voltage:
-
as customer's requirement
-
Dimension(L*W*H):
-
2680*1500*2325mm
-
Weight (T):
-
3.5 T
-
Product name:
-
Engine block cylinder boring machine
-
Model:
-
T8018C
-
Processing diameter:
-
42-180mm
-
Max. boring depth:
-
650mm
-
Rotational speed of spindle:
-
175,230,300,350,460,600r/min
-
Feed of boring spindle:
-
0.05, 0.10, 0.20
-
Motor power:
-
3.75kw
-
Overall Dimension:
-
2680*1500*2325mm
-
Packing size:
-
1578*1910*2575mm
-
N.W./G.W.:
-
3500/3700 kg
Quick Details
-
Table Size (mm):
-
Other
-
Table Travel (X) (mm):
-
0 mm
-
Table Travel (Y) (mm):
-
0 mm
-
Table Travel (Z) (mm):
-
0 mm
-
Travel (W-axis) (mm):
-
650 mm
-
Marketing Type:
-
NEW PRODUCT
-
Range of Spindle Speed(r.p.m):
-
75 r.p.m
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
SOSEN
-
Voltage:
-
as customer's requirement
-
Dimension(L*W*H):
-
2680*1500*2325mm
-
Weight (T):
-
3.5 T
-
Product name:
-
Engine block cylinder boring machine
-
Model:
-
T8018C
-
Processing diameter:
-
42-180mm
-
Max. boring depth:
-
650mm
-
Rotational speed of spindle:
-
175,230,300,350,460,600r/min
-
Feed of boring spindle:
-
0.05, 0.10, 0.20
-
Motor power:
-
3.75kw
-
Overall Dimension:
-
2680*1500*2325mm
-
Packing size:
-
1578*1910*2575mm
-
N.W./G.W.:
-
3500/3700 kg

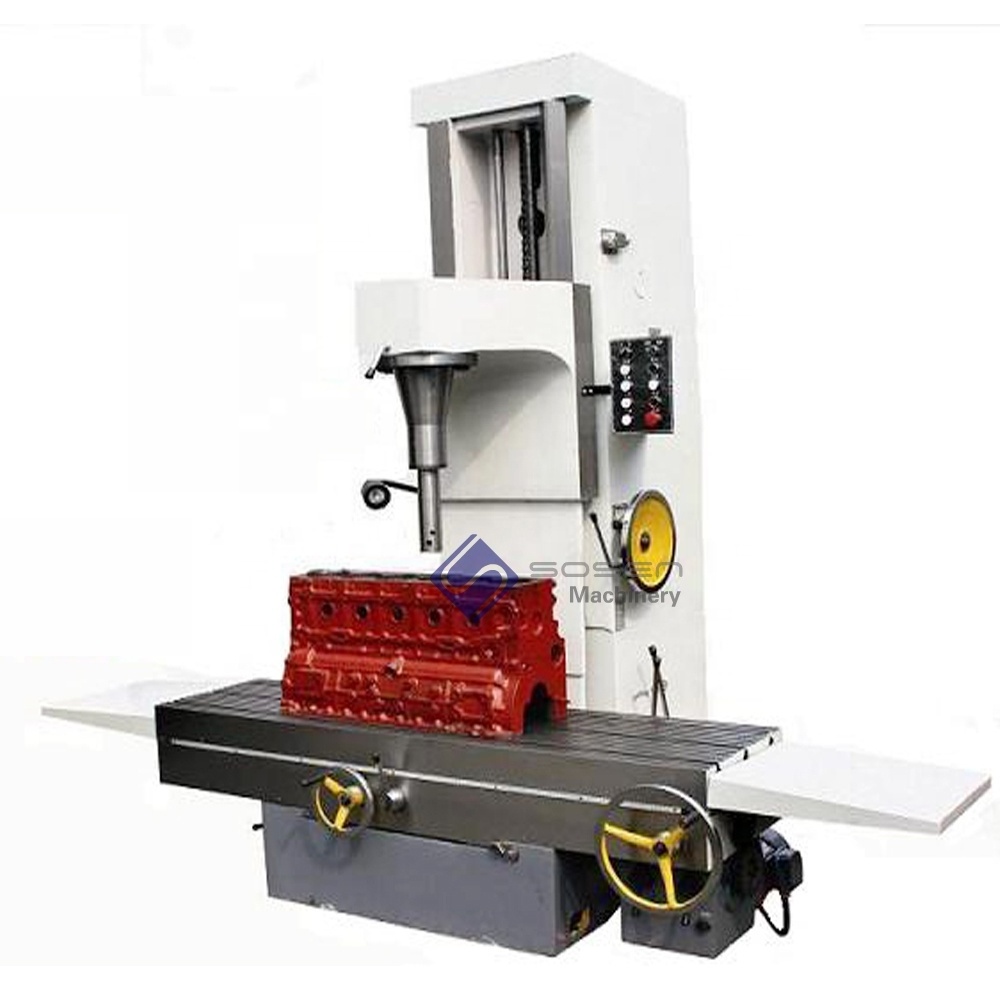

T8018C Engine block cylinder boring machine
Features:
The T8018C Engine block cylinder boring machine Is Mainly Used For Boring The Cylinder Hole Of Internal Combustion Engine And The Inner Hole Of Cylinder Sleeve Of Cars Or Tractors, And Also For Other Machine Element Hole.
T8018A: Mechanical-electronic drive &spindle speed frequence changed speed variation
T8018B: Mechanical drive
T8018C: Used for processing special heavy motor cylinders & Function of milling
Specifications:
| Model | T8018A/T8018B | T8018C | |
| Range Of Boring Diameter (Mm) | 30-180 | 42-180 | |
| Max Boring Depth(Mm) | 450 | 650 | |
| Machine Power | The Main Motor | 3.75 | YD100L2-4/2,1400/2800rpm,2.4/3kw |
| The Motor For Quick-Moving | Y802-4,1400rpm,0.75kw | ||
| Spindle | 175,230,300,350,460,600 | Infinitely variable | |
| Spindle feed | 0.05,0.10,0.20 | 0.05,0.10,0.20 | |
| Overall Dimensions (L×W×H)mm | 2000×1235×1920 | 2680×1500×2325 | |
| Packing Dimensions (L×W×H)mm | 1400×1400×2250 | 1578×1910×2575 | |
| N.W/G.W (Kg) | 2000/2200 | 3500/3700Kg | |
