Quick Details
-
Control System Brand:
-
RuiDa
-
Cutting Area:
-
1300mm*900mm
-
Cutting Thickness:
-
30mm ( according to materials)
-
Control Software:
-
RDWorks
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
EMIT LASER
-
Weight (KG):
-
450 KG
-
Warranty of core components:
-
10 months
-
Core Components:
-
laser tube
-
Product name:
-
Cheap CO2 laser engraving cutting machine 1390 with CCD camera
-
laser power:
-
60w ~ 300w
-
Function:
-
Engraving Cutting Nonmetal Materials
-
Working area:
-
1300*900mm
-
Control system:
-
Ruida Control System
-
Software supported:
-
CorelDraw PhotoShop AutoCAD TAJIMA
-
Motor:
-
Leadshine Stepper
-
Laser tube type:
-
Sealed CO2 Laser Glass Tube
-
Certification:
-
CE, ISO
-
After-sales Service Provided:
-
Video technical support
Quick Details
-
Laser Type:
-
CO2
-
Cutting Speed:
-
0-18000mm/min
-
Cooling Mode:
-
WATER COOLING
-
Control System Brand:
-
RuiDa
-
Cutting Area:
-
1300mm*900mm
-
Cutting Thickness:
-
30mm ( according to materials)
-
Control Software:
-
RDWorks
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
EMIT LASER
-
Weight (KG):
-
450 KG
-
Warranty of core components:
-
10 months
-
Core Components:
-
laser tube
-
Product name:
-
Cheap CO2 laser engraving cutting machine 1390 with CCD camera
-
laser power:
-
60w ~ 300w
-
Function:
-
Engraving Cutting Nonmetal Materials
-
Working area:
-
1300*900mm
-
Control system:
-
Ruida Control System
-
Software supported:
-
CorelDraw PhotoShop AutoCAD TAJIMA
-
Motor:
-
Leadshine Stepper
-
Laser tube type:
-
Sealed CO2 Laser Glass Tube
-
Certification:
-
CE, ISO
-
After-sales Service Provided:
-
Video technical support
Product Overview

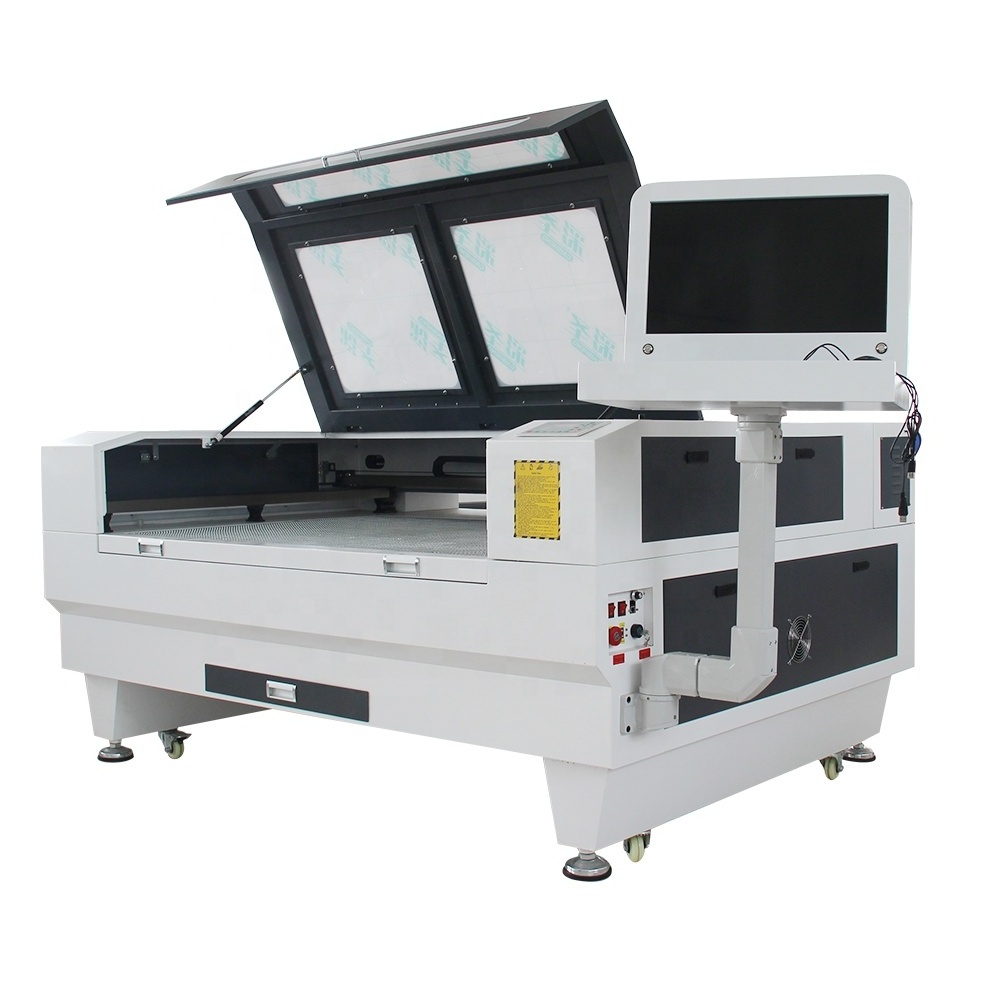

Cheap CO2 laser engraving cutting machine 1390 with CCD camera (optional)
1. The open software interface, compatible with Autocad, Coreldraw, went sculpture, Photoshop and other vector graphics design software.
2. Blade or honeycomb table, the buyer can choose one or both.
3. CO2 Glass sealed laser tube China famous brand (EFR, WG,Reci), good beam mode stability, long service time.
4. Brand quality lens and mirrors. High transmittance, good focusing, reflection effect.
5.Ruida Controller system, support online/offline working, English language system, adjustable cutting speed and power.
6.Equipped with water break protector, better protect laser, extend the life of laser, optional foot pedal switch, make your
operation more convenient and fast.
7. High accuracy stepper motors and drivers,belt transmission,linear square guide rails to make the cutting edge smooth and in high precision.
8. Open style, the front and back of the machine is open which is possible for longer material, breakthrough the limit of the
workpiece length.
9. CCD camera and computer are optional. Please confirm with the supplier whether you need them or not.
Details Images
PRODUCT SPECIFICATIONS
|
Model No.
|
1390
|
|
Working Area
|
1300x900mm
|
|
Laser Power
|
60W/80W/100W/150W/180W/200W/300W
|
|
Laser Type
|
C02 Sealed Laser Tube,Water-cooled,10.6μm
|
|
Engraving Speed
|
0-60000mm/min
|
|
Laser Output
|
1-100% Software Setting
|
|
Reposition Accuracy
|
±0.01mm
|
|
Power Supply
|
220V/50HZ,110V/60H2
|
|
Operating Temperature
|
0-45°C
|
|
Operating Humidity
|
5-95%
|
|
Min. Shaping Character
|
English 1.0x1.0mm
|
|
Graphic Format Supported
|
PLT,DXF,BMP,AI,DST etc
|
|
Software Supported
|
TAJIMA, CorelDraw, Photoshop, AutoCAD
|
|
Driving System
|
Stepper Motor
|
|
Cooling Mode
|
Water-cooling and Protection System
|
|
Net Weight
|
400kg
|
PRODUCT CONFIGURATION
Standard Accessories
APPLICABLE MATERIAL
Applicable Materials:
Wood, bamboo, jade, marble, organic glass,crystal,plastic,garments,paper,leather,penelope,rubber,ceramic,glass, textile cutting, industrial prototyping, industrial marking, sign making, medical part marking, aerospace, architectural modeling, specialty advertising, plastics fabricating ,flexo, point of purchase, rubber stamps, picture framing, gift manufacturing, bar coding, engraving ,gasket cutting, puzzles, cabinetry, awards & recognition, personalized pens, door pulls, cut scroll patterns, games & toys, finger joints, inlays & overlays, fraternity paddles, music boxes, light switch plates, jewelry boxes, parts marking, router templates, desk sets, scrap booking, photo albums, jewelry, crafts, Italian charms.
Applicable Industry:
Advertisement, arts and crafts, leather, toys, garments, model, building upholster, computerized embroidery and clipping,
packaging and paper industry.
Advertisement, arts and crafts, leather, toys, garments, model, building upholster, computerized embroidery and clipping,
packaging and paper industry.
OUR COMPANY
FAQ
Q1. How to get the most suitable machines if the buyers are not familiar with them?
You can tell us the material you will engrave or cut. It will be better if you have some pictures or working videos. We’ll
recommend the best model according to our years of experience.
Q2. How about the guarantee and after-sale service?
(1) 2- year warranty for the whole machine.
(2) Technical support by video, manual, pictures or online.
(3) Engineers available to serve customers overseas as long as the buyers can afford the service charge.
Q3. How long is the delivery time?
It generally takes 3-5 days if regular models. For some regular models, there is stcok, so it can delivery in 1-2 days. For
non-standard machines, we need to customize them and it will take about 7-10 days or longer time.
Q4. How will deliver the machines?
The machines can be delivered by sea, air , express (DHL, TNT, Fedex,UPS) or railway.
Q5. Can you supply door to door service?
For some countries, we can supply door to door services. Please inform your house address and confirm with the sales.
