Henan Borben Boiler Co., Ltd. has been committed to the manufacturing and research and development of industrial boilers since its establishment. At present, the company has held A class A boiler manufacturing license, American ASME standard "S" (power boiler), "U" (pressure vessel) license seal and other international certifications, is the leader of industrial boiler manufacturers. The high-quality products produced by Bolben boiler sell well at home and abroad, covering all industries such as food, paper, electronics, heating and so on.
- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
borben
-
Dimension(L*W*H):
-
5400*2200*2400
-
Weight:
-
18t
-
Design fuel:
-
Biomass Pellet
Quick Details
-
Core Components:
-
Boiler main body
-
Steam Production:
-
Max.20th
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
borben
-
Dimension(L*W*H):
-
5400*2200*2400
-
Weight:
-
18t
-
Design fuel:
-
Biomass Pellet
Product display

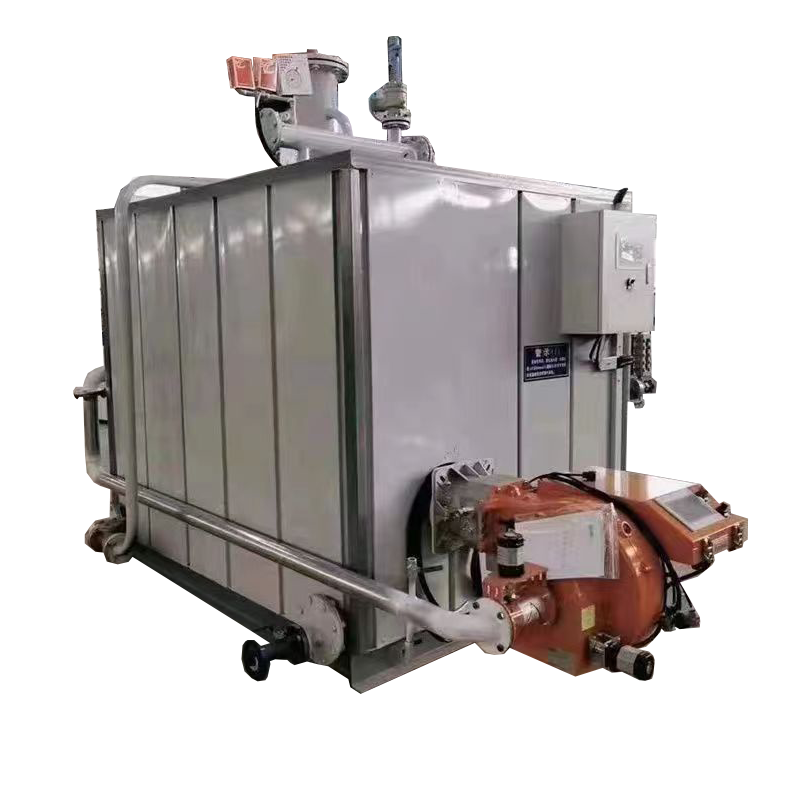

SZS gas boiler
Performance characteristics
D-type arrangement, compact structure, small size, good flame filling degree
The front and rear walls are all membrane-type water-cooled wall structure to ensure a service life of more than 20 years
· The arrangement of manholes before and after the upper and lower drum and the arrangement of inspection doors at the back of the boiler facilitate the user to repair and clean the inside and outside
The micro-positive pressure combustion improves the thermal efficiency of the boiler and reduces the operating cost. The reliable water circulation system ensures that no vaporizing water hammer occurs in the tube
The arrangement of explosion-proof doors and flame detectors makes the boiler safe and reliable operation. The insulation layer of the boiler adopts high thermal resistance materials and has good thermal insulation performance
The concave and convex protection plate is used on the exterior, which not only ensures the excellent sealing of the whole boiler, but also beautifies the appearance quality
The three-pass convection tube bundle design makes the flue gas stay in the furnace longer, makes the fuel burn more fully and improves the combustion efficiency
The boiler uses the automatic burner, the combustion efficiency is higher than the traditional boiler. In particular, overpressure, flameout and other protective functions improve the safety of workers' operation
Type parameter
|
Model number
|
Rated thermal power
|
Rated working pressure
|
Rated outlet/return water temperature
|
Thermal efficiency
|
Design fuel
|
Maximum shipping weight
|
Maximum exterior size
|
|
Unit
|
(MW)
|
(Mpa)
|
(℃)
|
(%)
|
|
(KG)
|
(MM)
|
|
SZS7-1.0/115/70-YQ
|
7
|
|
|
|
|
40000
|
8000*3600*4500
|
|
SZS10.5-1.0/115/70-YQ
|
10.5
|
|
|
|
|
48000
|
8850*3850*3930
|
|
SZS14-1.0/115/70-YQ
|
14
|
1
|
115/70
|
93.3-97
|
Natural gas, light oil, heavy oil, etc
|
52500
|
8510*3850*3750
|
|
SZS17.5-1.0/115/70-YQ
|
17.5
|
|
|
|
|
57500
|
9310*3770*3750
|
|
SZS21-1.0/115/70-YQ
|
21
|
|
|
|
|
65000
|
10100*4130*4150
|
01 Manhole, check the door
Manholes are arranged before and after the upper and lower POTS, and the boiler is arranged at the rear of the boiler to inspect the boiler
Easy to open, conducive to the maintenance and cleaning of the boiler inside and outside
02 Safety Device
Boilers are equipped with blast doors and flame detectors
Automatic water level regulation, high and low water level alarm, overpressure alarm, extremely low water level furnace shutdown and other safety protection functions
03 Combustion Chamber
Full film water wall structure is adopted to improve the heat transfer effect
Using micro-positive pressure combustion, no smoke problem, no pollution in the operating environment
04 Low heat loss of furnace body
High quality aluminum silicate fiber, refractory mud insulation
The self-supporting steel frame structure is adopted, and there is no heat transfer support between the furnace body and the outer surface
High quality products from the strong comprehensive strength
Henan Boerben Boiler Co., Ltd. is A designated boiler and pressure vessel manufacturing enterprise approved by the General Administration of Quality Supervision, Inspection and Quarantine of the People's Republic of China. It holds A Class boiler manufacturing license, BRII class pressure vessel manufacturing license, American ASME standard "S" (power boiler), "U" (pressure vessel) license seal. And fully passed the ISO9001:2000 international quality system certification.
With the accumulation of more than 30 years of manufacturing boilers, it has formed more than 400 varieties and specifications of gas boilers, biomass boilers, coal-fired boilers, thermal oil boilers, etc., and is widely used in chemical, food, wine, heating, paper making, printing and dyeing, rubber and other industries.
