Quick Details
-
Product Name:
-
waste oil burner
-
Oil Consumption:
-
2-3 Liter per hour
-
Output Power:
-
30-60kw
-
Max.output heat:
-
50 000Kcal/h
-
Tube Diameter:
-
100 or 114mm
-
Fuel:
-
all kinds of waste oil, diesel oil
-
Application:
-
boiler, furnace, heater, swimming pool
-
Feature:
-
fully automatic, sufficient burn, low maintenance cost
-
Voltage:
-
220volt or 110volt
-
Business Type:
-
Original Manufacturer
-
Marketing Type:
-
Hot Product 2020
Quick Details
-
Type:
-
Oil Burner
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
KING VITAL
-
Product Name:
-
waste oil burner
-
Oil Consumption:
-
2-3 Liter per hour
-
Output Power:
-
30-60kw
-
Max.output heat:
-
50 000Kcal/h
-
Tube Diameter:
-
100 or 114mm
-
Fuel:
-
all kinds of waste oil, diesel oil
-
Application:
-
boiler, furnace, heater, swimming pool
-
Feature:
-
fully automatic, sufficient burn, low maintenance cost
-
Voltage:
-
220volt or 110volt
-
Business Type:
-
Original Manufacturer
-
Marketing Type:
-
Hot Product 2020
Picture & Parameter
Product Feature

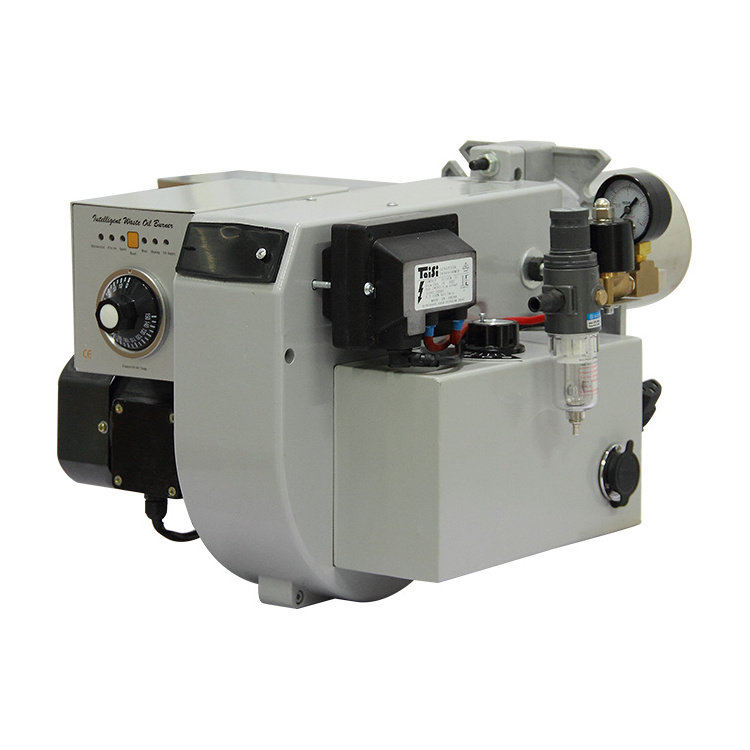

KV05 burner has one piece 1.0mm nozzle. KV05's power is 60kw.
Differences between KV03 and KV05:
KV03 is 40kw, tube diamter is 90mm.
KV05 is 60kw, tube diamter is 114mm.
Differences between KV05 and KV10:
KV05 is 60kw, and it has one piece of 1.0mm nozzles.
KV10 is 120kw, and it has one piece of 2.0mm nozzles.
Kingwei Original Flame Ring-
Kingwei original flame ring and the specific customized nozzles guarantee sufficient combustion, strong&stable flame column, and less carbon deposits .
Kingwei original flame ring and the specific customized nozzles guarantee sufficient combustion, strong&stable flame column, and less carbon deposits .
More Fuel-
The KV05 burner can utilize all kinds of liquid oil/waste oil with or without impurities, can be divided to six types,
1) Waste car/engine oil from car, truck, garage, motor oil ,hydraulic oil, etc
2) #2-#5 fuel oil
3) Vegetable oils, like palm oil, soybean oil, used cooking oil from restaurant as well as animal fat oil, etc
4) Mix oil
5) Diesel oil
6) KV-Artesian Oil Burner for Corrosive fuel, strongly acidic, strongly alkaline, such as pyrolysis oil, waste oil from tire&plastic, methanol
Intelligent-
PC Board control, works fully automatically
Work stage & malfunction readable
Multi safety protection
Factory Pricing-
Unequaled Service And Support-
1.Detailed manual & installation instructions
2.Quality warranty for one year
3.Online support & spare parts for a lifetime
Various Applications-
Our burners are for both individual and industrial areas such as boilers, heater, furnace, open oven, reactor, grain dryer, mold casting, incinerator, fryer, brick kiln.
No Smoke Test
Air Compressor Selection Guide
The KV05 burner must work with an external air compressor, which guarantees a better combustion effect, longer service time than those burners needn't. Below is the reference air compressor parameter.
Waste Oil Burner Catalog
|
Model
|
|
|
Oil Consumption
|
2-3Liter per hour
|
|
Output Power
|
14-40Kw
|
|
Max. Output Heat
|
300 000Kcal/h
|
|
Tube Diameter
|
90mm
|
|
Nozzle
|
1x1.0mm
|
|
Voltage
|
220v Or 110v
|
|
Model
|
|
|
Oil Consumption
|
2-3Liter per hour
|
|
Output Power
|
30-60Kw
|
|
Max.Output Heat
|
500 000Kcal/h
|
|
Tube Diameter
|
114mm
|
|
Nozzle
|
1x1.0mm
|
|
Voltage
|
220v Or 110v
|
|
Model
|
|
|
Oil Consumption
|
6-8Liter per hour
|
|
Output Power
|
80-120Kw
|
|
Max. Output Heat
|
100 000Kcal/h
|
|
Tube Diameter
|
114mm
|
|
Nozzle
|
1x2.0mm
|
|
Voltage
|
220v Or 110v
|
|
Model
|
|
|
Oil Consumption
|
10-12Liter per hour
|
|
Output Power
|
230Kw
|
|
Max. Output Heat
|
200 000Kcal/h
|
|
Tube Diameter
|
114mm
|
|
Nozzle
|
2x2.0mm
|
|
Voltage
|
220v Or 110v
|
|
Model
|
|
|
Oil Consumption
|
12-15Liter per hour
|
|
Output Power
|
340Kw
|
|
Max.Output Heat
|
300 000Kcal/h
|
|
Tube Diameter
|
114mm
|
|
Nozzle
|
3x2.0mm
|
|
Voltage
|
220v Or 110v
|
Model: KV40
Oil Consumption: 30-40L/h
Output Power: 460Kw
Max.Output Heat: 400 000Kcal/h
Tube Diameter: 160mm
Nozzle: 4x2.0mm
Voltage: 220v Or 110v
Model: KV50
Oil Consumption: 40-50L/h
Output Power: 570Kw
Max.Output Heat: 500 000Kcal/h
Tube Diameter: 160mm
Nozzle: 5x2.0mm
Voltage: 220v Or 110v
Output Power: 570Kw
Max.Output Heat: 500 000Kcal/h
Tube Diameter: 160mm
Nozzle: 5x2.0mm
Voltage: 220v Or 110v
Model: KV60
Oil Consumption: 50-60L/h
Output Power: 690Kw
Max.Output Heat: 600 000Kcal/h
Tube Diameter: 160mm
Nozzle: 6x2.0mm
Voltage: 220v Or 110v
Output Power: 690Kw
Max.Output Heat: 600 000Kcal/h
Tube Diameter: 160mm
Nozzle: 6x2.0mm
Voltage: 220v Or 110v
Model: KV90
Oil Consumption: 70-80L/h
Output Power: 1030Kw
Max.Output Heat: 900 000Kcal/h
Tube Diameter: 160mm
Nozzle: 9x2.0mm
Voltage: 220v And 380v
Output Power: 1030Kw
Max.Output Heat: 900 000Kcal/h
Tube Diameter: 160mm
Nozzle: 9x2.0mm
Voltage: 220v And 380v
Model: KV120
Oil Consumption: 100-120L/h
Output Power: 1400Kw
Max.Output Heat: 1200 000Kcal/h
Tube Diameter: 202mm
Nozzle: 12x2.0mm
Voltage: 220v And 380v
Output Power: 1400Kw
Max.Output Heat: 1200 000Kcal/h
Tube Diameter: 202mm
Nozzle: 12x2.0mm
Voltage: 220v And 380v
Model: KV180
Oil Consumption: 120-180L/h
Output Power: 2050Kw
Max.Output Heat: 1800 000Kcal/h
Tube Diameter: 240mm
Nozzle: 18x2.0mm
Voltage: 220v And 380v
Output Power: 2050Kw
Max.Output Heat: 1800 000Kcal/h
Tube Diameter: 240mm
Nozzle: 18x2.0mm
Voltage: 220v And 380v
Model: KV240
Oil Consumption: 200-240L/h
Output Power: 2800Kw
Max.Output Heat: 2400 000Kcal/h
Tube Diameter: 240mm
Nozzle: 25x2.0mm
Voltage: 220v And 380v
Output Power: 2800Kw
Max.Output Heat: 2400 000Kcal/h
Tube Diameter: 240mm
Nozzle: 25x2.0mm
Voltage: 220v And 380v
Model: KV360
Oil Consumption: 300-500L/h
Output Power: 4090Kw
Max.Output Heat: 3600 000Kcal/h
Tube Diameter: 240mm
Nozzle: 36x2.0mm
Voltage: 220v And 380v
Output Power: 4090Kw
Max.Output Heat: 3600 000Kcal/h
Tube Diameter: 240mm
Nozzle: 36x2.0mm
Voltage: 220v And 380v
Custom-made Burner
-Upward Burner
-
Artesian Oil Burner
-Burner With
Length Tube
-Burner With Separate Control Box
