Quick Details
-
Table Travel (Y) (mm):
-
500mm
-
Dimension(L*W*H):
-
3400x2480x2960mm
-
Weight (T):
-
5.6 T
-
Table Travel (Z) (mm):
-
500mm
-
Positioning Accuracy (mm):
-
±0.0075
-
Range of Spindle Speed(r.p.m):
-
20 - 8000 r.p.m
-
Spindle Motor Power(kW):
-
7.5kw
-
Max. Table Load(kg):
-
500 kg
-
Feed Speed(mm/min):
-
1 - 8000 mm/min
-
Rapid Feed Speed(m/min):
-
24/24/18
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
HONGDA
-
Voltage:
-
220V/380V
-
Marketing Type:
-
Hot sales
-
Name:
-
cnc 5 axis milling machine
-
Keywords:
-
cnc conversion kit
-
Control system:
-
fanuc Siemens GSK SYNTEC
-
Machine Type:
-
China Cnc Mahchine
-
Controlling Mode:
-
CNC system
-
Application:
-
Manufacturing of General Machined Parts
-
Core components:
-
Bearings, motors, pumps, gears,engines, gearboxes
-
Tool magazine:
-
Arm 24
-
Spindle taper:
-
BT40
-
After sales service provided:
-
Provide overseas third-party support
Quick Details
-
Table Size (mm):
-
1000x500
-
Number of Axes:
-
3, 4, 5
-
Table Travel (X) (mm):
-
800mm
-
Table Travel (Y) (mm):
-
500mm
-
Dimension(L*W*H):
-
3400x2480x2960mm
-
Weight (T):
-
5.6 T
-
Table Travel (Z) (mm):
-
500mm
-
Positioning Accuracy (mm):
-
±0.0075
-
Range of Spindle Speed(r.p.m):
-
20 - 8000 r.p.m
-
Spindle Motor Power(kW):
-
7.5kw
-
Max. Table Load(kg):
-
500 kg
-
Feed Speed(mm/min):
-
1 - 8000 mm/min
-
Rapid Feed Speed(m/min):
-
24/24/18
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
HONGDA
-
Voltage:
-
220V/380V
-
Marketing Type:
-
Hot sales
-
Name:
-
cnc 5 axis milling machine
-
Keywords:
-
cnc conversion kit
-
Control system:
-
fanuc Siemens GSK SYNTEC
-
Machine Type:
-
China Cnc Mahchine
-
Controlling Mode:
-
CNC system
-
Application:
-
Manufacturing of General Machined Parts
-
Core components:
-
Bearings, motors, pumps, gears,engines, gearboxes
-
Tool magazine:
-
Arm 24
-
Spindle taper:
-
BT40
-
After sales service provided:
-
Provide overseas third-party support
Video Description

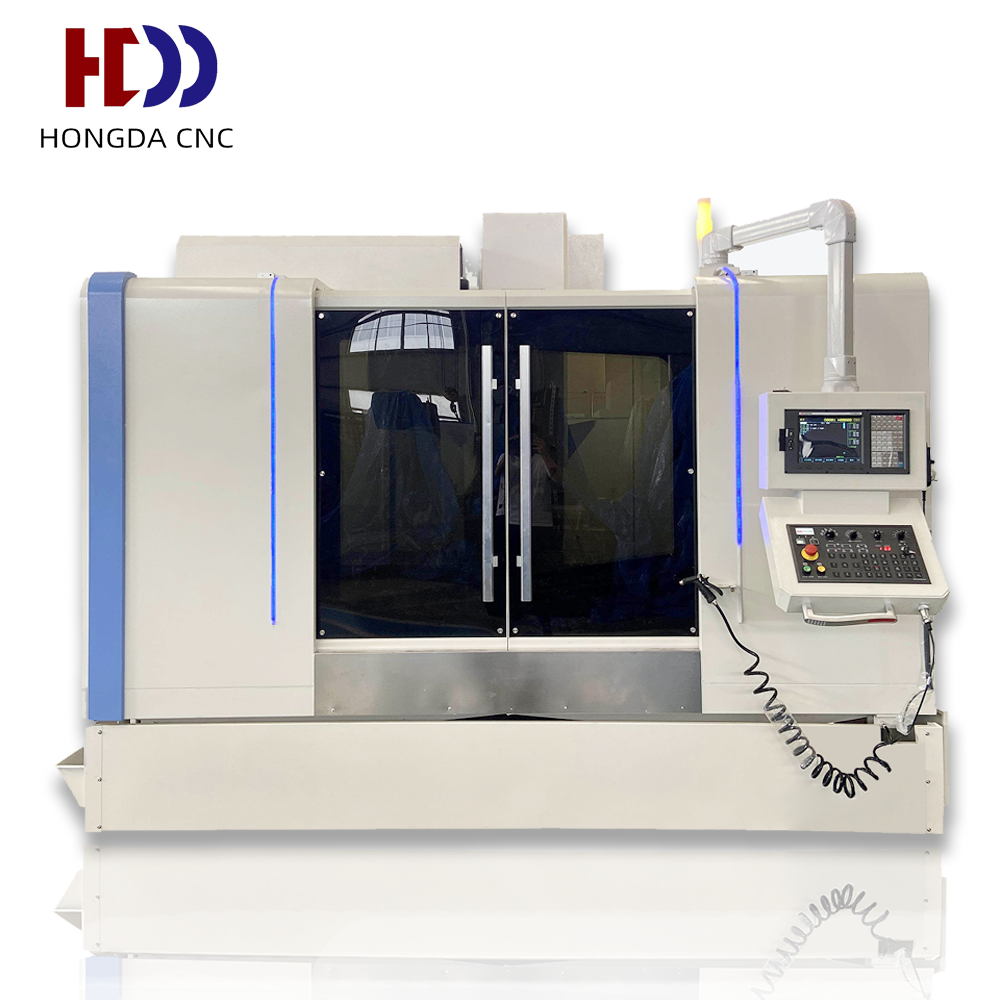

Product Description
Main technical parameters of the product:
|
Specifications
|
Units
|
VMC850
|
|
Table size
|
mm
|
1000x500
|
|
X axis travel
|
mm
|
800
|
|
Y axis travel
|
mm
|
500
|
|
Z axis travel
|
mm
|
500
|
|
Max. worktable load
|
kg
|
500
|
|
T slot(number-width-pitch)
|
|
5-18x100
|
|
Max. spindle speed
|
rpm
|
8000(Optional:10000 )
|
|
Spindle taper
|
mm
|
BT40
|
|
Main motor power
|
kw
|
7.5/11
|
|
X/Y/Z rapid traverse speed
|
m/min
|
24/24/20
(Optional:48/48/36 ) |
|
Cutting feed speed
|
mm/min
|
1-8000
|
|
Guide rail type
|
|
Linear rail
|
|
Distance from spindle axis to column surface
|
mm
|
525
|
|
Distance between spindle nose and worktable surface
|
mm
|
130-630
|
|
Positioning accuracy
|
mm
|
±0.0075
|
|
Repeat positioning accuracy
|
mm
|
±0.005
|
|
Tool magazine
|
|
Arm 24
|
|
Max. tool diameter
|
mm
|
φ78 (Adjacent)/ φ120(Apart)
|
|
Max.tool weight
|
kg
|
8
|
|
Machine weight
|
kg
|
5600
|
|
Overall dimension
|
mm
|
2600X2300X2800
|
