Quick Details
-
Brand Name:
-
DJYOKE
-
Model Number:
-
HY-24W-24V1A-NZ
-
Output Frequency:
-
0
-
Output Current:
-
0-1A
-
Warranty:
-
2 years
-
Type:
-
constant voltage
-
Efficiency:
-
86%
-
Brand:
-
DJYOKE
-
MOQ:
-
100pcs
-
Packing:
-
carton
-
Application:
-
Electronic Equipment
-
Weight:
-
47.6g
-
Protection:
-
OCP OVP SCP OPP
-
Size:
-
71*29*17.5mm
Quick Details
-
Input Voltage:
-
AC 85-265V
-
Output Voltage:
-
DC 24V
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
DJYOKE
-
Model Number:
-
HY-24W-24V1A-NZ
-
Output Frequency:
-
0
-
Output Current:
-
0-1A
-
Warranty:
-
2 years
-
Type:
-
constant voltage
-
Efficiency:
-
86%
-
Brand:
-
DJYOKE
-
MOQ:
-
100pcs
-
Packing:
-
carton
-
Application:
-
Electronic Equipment
-
Weight:
-
47.6g
-
Protection:
-
OCP OVP SCP OPP
-
Size:
-
71*29*17.5mm
Main products
product details

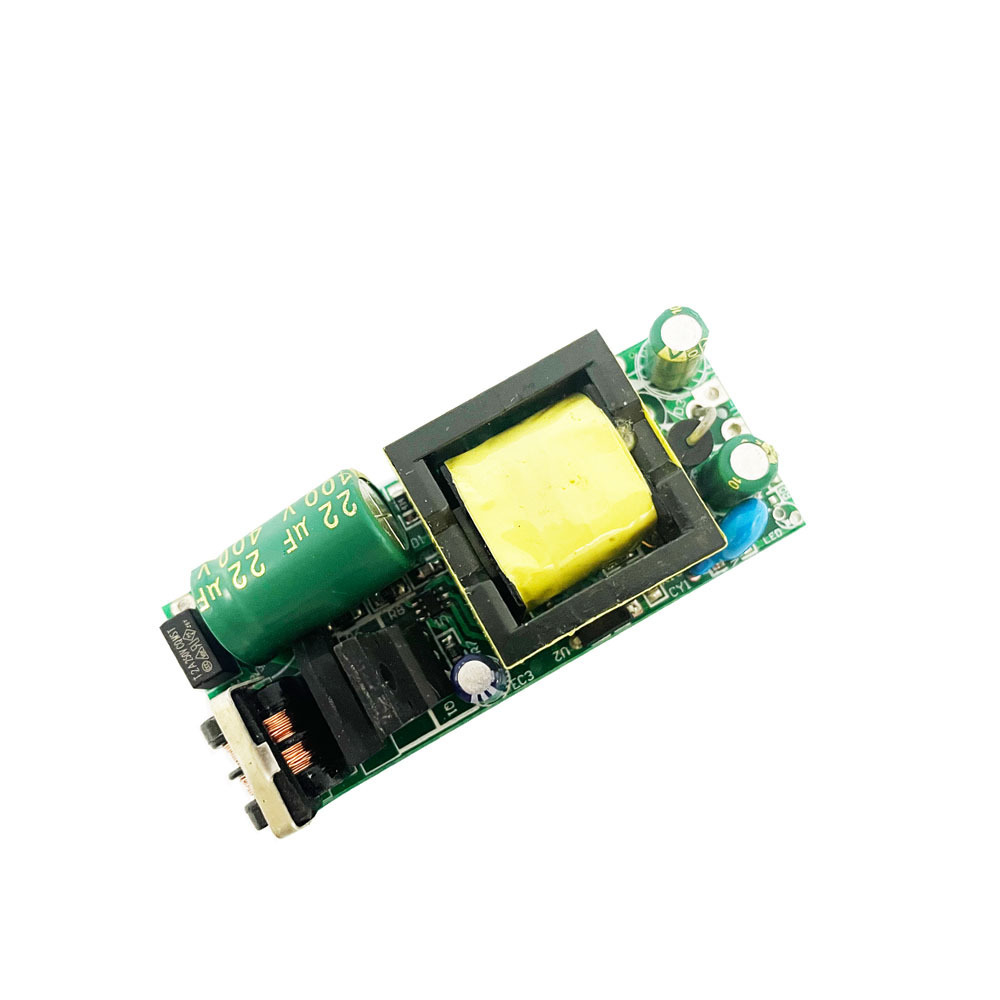

Super thin AC 220V to DC 24V 1A switching power supply module for home fan led strips touch switch and desktop lamp 03
|
1.Input parameters
|
Parameters
|
Unit
|
Test description
|
Minimum
|
Typical
|
Maximum
|
||||
|
|
Input Voltage
|
V(AC)
|
Normal
|
85
|
220
|
265
|
||||
|
|
Input frequency
|
HZ
|
Normal
|
43
|
50
|
65
|
||||
|
|
Power factor
|
PF
|
Normal
|
0.634
|
0.657
|
0.708
|
||||
|
|
Input Inrush Current
|
A
|
Cold start under normal conditions
|
|
|
|
||||
|
2.Output parameters
|
Parameters
|
Unit
|
Minimum
|
Typical
|
Maximum
|
|
||||
|
|
Output current
|
MA
|
0
|
1000
|
1000
|
|
||||
|
|
Output voltage
|
V
|
24
|
24
|
24.6
|
|
||||
|
|
Output ripple
|
MV
|
|
|
|
|
||||
|
|
Constant current accuracy
|
%
|
1%
|
3%
|
5%
|
|
||||
|
3.Overall performance
|
AC Input
|
|
Output
|
|
|
|
||||
|
|
Input Voltage
|
Power consumption
|
Output Voltage
|
Output Current
|
Power Factor
|
Efficiency
|
||||
|
|
85
|
30.4
|
24.5
|
1000
|
0.671
|
0.81
|
||||
|
|
100
|
29.5
|
24.53
|
1000
|
0.698
|
0.83
|
||||
|
|
110
|
29.1
|
24.54
|
1000
|
0.708
|
0.84
|
||||
|
|
120
|
28.7
|
24.55
|
1000
|
0.706
|
0.86
|
||||
|
|
170
|
28.2
|
24.55
|
1000
|
0.684
|
0.87
|
||||
|
|
220
|
28
|
24.55
|
1000
|
0.657
|
0.88
|
||||
|
|
240
|
28
|
24.55
|
1000
|
0.644
|
0.88
|
||||
|
|
265
|
28.1
|
24.55
|
1000
|
0.634
|
0.87
|
||||
|
|
|
|
|
|
|
|
||||
|
4. Using environment
Parameters
|
Parameters
|
Unit
|
Test description
|
Minimum
|
Typical
|
Maximum
|
|
|
Working ambient temperature
|
℃
|
Full load operation
|
-18
|
+40
|
+60
|
|
|
Storage ambient temperature
|
℃
|
|
-25
|
25
|
+75
|
