Quick Details
-
Place of Origin:
-
Shandong, China
-
Mower Type:
-
Hedge trimmer
-
Model:
-
BM-150
-
Cutter type:
-
Reciprocating or flail mower
-
PTO Speed:
-
540 r/min
-
Cutting width:
-
1500mm
-
Drive Type:
-
Tractor PTO and Hydraulic
-
Transmission:
-
Gearbox
-
Structure Weight:
-
260
-
Matching power:
-
50-90HP Tractor
-
Control:
-
Hydraulic valves
Quick Details
-
Weight (KG):
-
360
-
Marketing Type:
-
Hot Product 2022
-
Use:
-
Farms
-
Place of Origin:
-
Shandong, China
-
Mower Type:
-
Hedge trimmer
-
Model:
-
BM-150
-
Cutter type:
-
Reciprocating or flail mower
-
PTO Speed:
-
540 r/min
-
Cutting width:
-
1500mm
-
Drive Type:
-
Tractor PTO and Hydraulic
-
Transmission:
-
Gearbox
-
Structure Weight:
-
260
-
Matching power:
-
50-90HP Tractor
-
Control:
-
Hydraulic valves
Products Description
Applicable areas and features
Users:
1. The hedge trimmer with hydraulic arm for clearing larger, wider areas, roadsides verges, orchards and
various inclining and declining and surfaces areas, roadside verges, orchards and general farm areas.
2. Specially designed for universal use the head of the mower can be operated in line with the tractor or offset for verge
maintenance.
Features:
1. The hedge trimmer are suitable for g ardens and road greening
2. Hydraulic side adjustment.
3. Hydraulic inclining adjustment
4. Rear roller wheel
5. Optional cutter sets according to requiements
6. Self leveling
7. High strength blades
8. Safety flaps
9. Extra strong and designed with safety in mind
10. Support legs for storage
11. Solid hitch
1. The hedge trimmer with hydraulic arm for clearing larger, wider areas, roadsides verges, orchards and
various inclining and declining and surfaces areas, roadside verges, orchards and general farm areas.
2. Specially designed for universal use the head of the mower can be operated in line with the tractor or offset for verge
maintenance.
Features:
1. The hedge trimmer are suitable for g ardens and road greening
2. Hydraulic side adjustment.
3. Hydraulic inclining adjustment
4. Rear roller wheel
5. Optional cutter sets according to requiements
6. Self leveling
7. High strength blades
8. Safety flaps
9. Extra strong and designed with safety in mind
10. Support legs for storage
11. Solid hitch

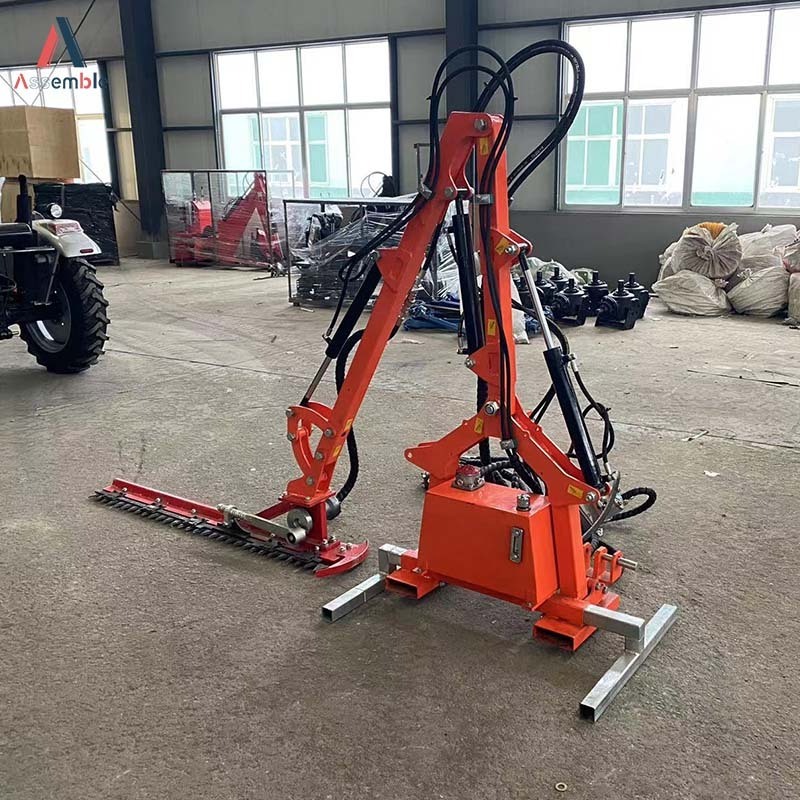

Tractor H
edge Trimmer
* Side flail mower, you can mowing behind the tractor or on the side of the tractor (on the slope).
* There is no need to drive the tractor on the slope during mowing (mainly because the mower can move the maximum length to the side).
|
Model
|
Unit
|
BM-150
|
BF-150
|
|
Max Horizontal reach
|
mm
|
2400
|
2400
|
|
Turning angle
|
°
|
107
|
107
|
|
Turning angle
|
°
|
175
|
175
|
|
Max height in horizontal
|
mm
|
1605
|
1605
|
|
Max height in vertical
|
mm
|
2600
|
2600
|
|
Cutting width
|
mm
|
1500
|
1500
|
|
Rotor speed
|
r/min
|
3000
|
3000
|
|
Machine weight
|
kg
|
260
|
350
|
|
Oil tank capacity
|
L
|
30
|
30
|
|
PTO speed
|
r/min
|
540
|
540
|
Details Images
Operation instructions
*
Multi-way valve controller with 4 control levers
*
Can control telescopic, lifting and folding
* Match with tractor hydraulic systems
*
Sensitive and convenient operation, easy to maintain
PTO Pump
* Connect with tractor by PTO
* PTO Speed 540 r/min, t
he cutter is powered by gear pump speed increase
Steering pump
* Steering pump control
lifting and folding
*
Two hydraulic lines are connected to the multi-way valve controller
Hydraulic fliter
* Same hydraulic fliter with tractor
*
This hydraulic filter can filter impurities in hydraulic oil, making work smoother and extending service life.
Hydraulic cylinder
* Hydraulic cylinder strengthened to control
folding
*
Large diameter, long stroke, and more powerful hydraulic force
Blade
Standard configuration is reciprocating cutter, t
his cutter blades set can cut hedges, cutting stubble low and neatly.
Blade
Optional flail mower cutter, this cutter sets c
an cut and chop grass, chop small branches.
Product packaging
Working Show
