Quick Details
-
Capacity:
-
90-180BPH
-
Bottle material:
-
Pet Plastic
-
Bottle size:
-
10L-25L
-
Blowing Pressure:
-
35kg/cm*cm
-
Cavity:
-
4-cavity
-
Feature:
-
High Desity
-
Temperature:
-
10-12
-
Flow rate:
-
30Itr/min
Quick Details
-
Place of Origin:
-
China
-
Product name:
-

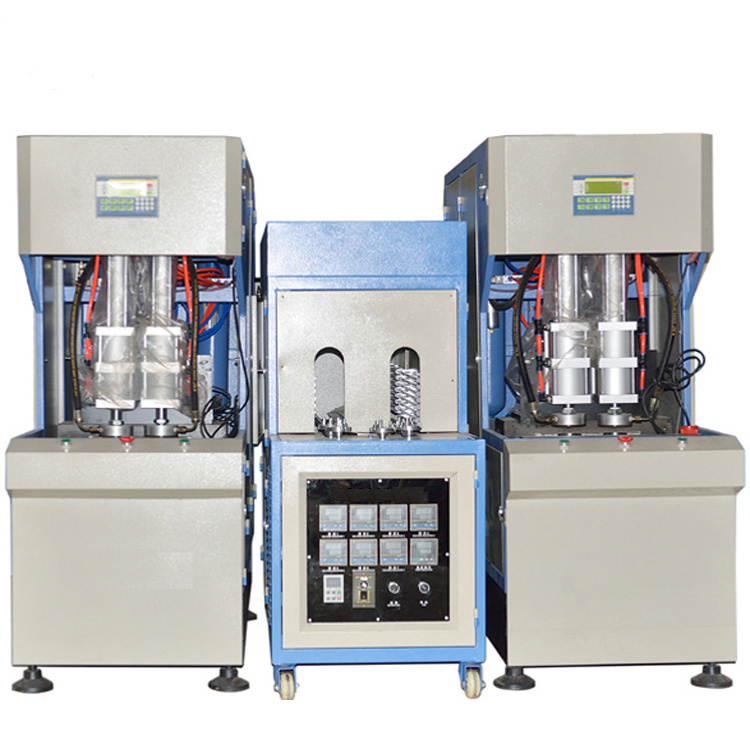

Semi Automatic Pet Water Plastic Bottle Blowing Machine
-
Type:
-
Injection Blowing Machine
-
Capacity:
-
90-180BPH
-
Bottle material:
-
Pet Plastic
-
Bottle size:
-
10L-25L
-
Blowing Pressure:
-
35kg/cm*cm
-
Cavity:
-
4-cavity
-
Feature:
-
High Desity
-
Temperature:
-
10-12
-
Flow rate:
-
30Itr/min
| Container | Product material | PET |
| Volume | 10L-25L ( 3-5Gallon ) | |
| Theoretical output | 90-180PCS/H | |
| Preform length | 15mm-460mm | |
| Preform inner diameter | φ5mm-200mm | |
| Moulding | Max.mould plate Dimenstion(L x W) | 420x500mm |
| Max.mould thickness | 40mm | |
| Clamping force | 330KN | |
| Mould opening stroke | 38mm | |
| Machine size and weight | Main machine (L x W x H) | 218*77*196cm |
| Main machine weight | 1000Kg | |
| Heater (L x W x H) | 237*68*165cm | |
| Heater weight | 380Kg | |
| Power | 40kw |
Installation service
When you finish the Preparation conditions,our fast and professional aftersales service engineer team will go to your factory to install the machine,give you the operating manual,and train your employee until they can operate the machine well.
The sample service
1.We can send you the video of the running machine.
2.You are welcome to come to visit our factory,and see the machine running.
Customized service
1.We can design the machines according your requirements(materil,power,filling type,the kinds of the bottles,and so on),at the same time we will give you our professional suggestion,as you know,we have been in this industry for many years.
After-sales service
1.We will delivery the machine and provide the bill of load on time to make sure you can get the machine quickly
2.When you finish the Preparation conditions,our fast and professional aftersales service engineer team will go to your factory to install the machine,give you the operating manual,and train your employee until they can operate the machine well.
3. We often ask feedback and offer help to our customer whose machine have been used in their factory for some time.
4.We provide one year warranty
5.Well-trained & experienced staff are to answer all your inquiries in English and Chinese
6 .24 hours for engineer response (all services part 5days in customer hand by Intl' courier).
7 .12 Months guarantee and life-long technical support.
8.Your business relationship with us will be confidential to any third party.
9. Good after-sale service offered, please get back to us if you got any questions.
Quality Control
We have the single quality department,that make sure the material of the raw materials is good,and ensure the machine running smoothly.
If you want to know more information about the product,You can send an inquiry, we will solve any of your problems and send you running vedio.
