Quick Details
-
Brand Name:
-
3F FAMED
-
Model Number:
-
4IK25GN-A/E/C/H/S - 4RK25GN-A/E/C/H
-
Frequency:
-
50/60Hz, 50/60Hz
-
Product name:
-

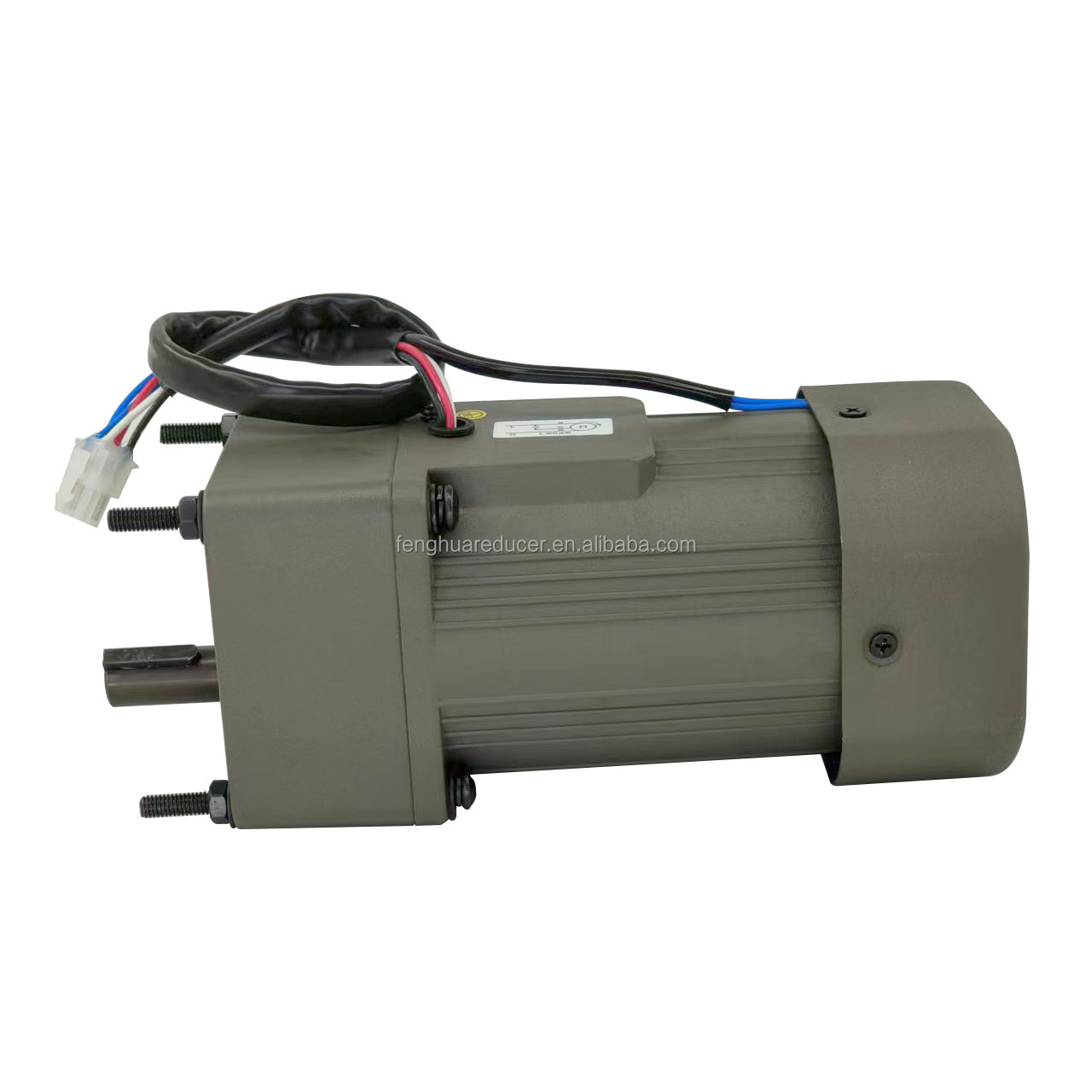

Mircro ac induction gear motor with gearbox
-
Voltage:
-
1 phase 110v 110v 120v 220v 230v and 3 phase 220v
-
Output power:
-
25W
-
Motor Type:
-
Induction motor, reversible motor, brake motor, speed control motor
-
Rated speed:
-
1250-1550rpm
-
Rated torque:
-
165-200N.M
-
Ratio:
-
3-15
-
gearbox:
-
yes
Quick Details
-
AC Voltage:
-
single phase 100V 110V 120V 220V 230V three phase 220V
-
Warranty:
-
12 months, 12 months
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
3F FAMED
-
Model Number:
-
4IK25GN-A/E/C/H/S - 4RK25GN-A/E/C/H
-
Frequency:
-
50/60Hz, 50/60Hz
-
Product name:
-
Mircro ac induction gear motor with gearbox
-
Voltage:
-
1 phase 110v 110v 120v 220v 230v and 3 phase 220v
-
Output power:
-
25W
-
Motor Type:
-
Induction motor, reversible motor, brake motor, speed control motor
-
Rated speed:
-
1250-1550rpm
-
Rated torque:
-
165-200N.M
-
Ratio:
-
3-15
-
gearbox:
-
yes
1. Generally speaking, a micro induction motor is a motor rotated by induction. It uses electromagnetic coils and a capacitor when starting and operating. Although the start torque is not very high, it has a simple structure, high efficiency, and can continuously run.
2. There will be torque that r the rotating direction when a single motor running, so it is impossible to change the direction in a short time. Please change the rotation direction after the motor completely stop.
3. Three-phase induction motor is driven by the three-phase power supply. It has high efficiency and starts torque.
Suitable for unidirectional continuous running.
|
Cautions during operation
|
|
|
|
(1)
|
Overload is forbidden.
|
|
|
(2)
|
Input speed can not exceed the proper max. Speed.
|
|
|
(3)
|
Please
stop and check the reducer
if there are the following occurs:
1) Temperature rise suddenly 2) Abnormal big noise of a sudden 3) Speed became unstable suddenly |
|
|
(4)
|
Please change the motor shaft direction after stopping the motor.
|
|
Warranty instruction:
Warranty: 12 Months
The following cost and damages are not included in our warranty:
1)Freight cost
2)If the Reducer connects with or inserts into a unit when we dismount or mount on the unit and other extra action, there will be a cost. ( this is not contained in the warranty)
3)The indirect damage that user lost the appliance chance or business break off due to reducer breakdown.
4)Other derivative and accompanying damages.
Q: Are you a manufacturer or a trader?
A: We are a manufacturer. Sincerely welcome to visit our company. And we can have a video conference first if you are convenient.
Q: What're your main products?
A: We currently supply planetary gearbox, harmonic gearbox, steering gearbox, RV cycloidal pin-wheel gearbox, worm gearbox, servo motor and stepper motor, electric cylinder and slide, coupling, etc. E-catalog is ready for you if you are interested.
Q: How to select a suitable gearbox?
A: Please show us your motor details or drawings. And also please advise working condition, load, output torque, output speed or reduction ratio, backlash, etc. Then we will recommend a suitable model. If you are unable to show all of the above parameters, please contact us, then we will guide you step by step.
Q: Can I get the 3D and 2D drawings?
A: Sure, we have the standard drawings. Also, the input size of the gearbox can be customized according to different motors.
Q: Do you have an individual design service?
A: Yes, we would like to design products individually for our customers, but it may need some mold development costs and design charges.
Q: What's your lead time?
A: Generally speaking, we keep many stocks of regular standard products, if shortage of stocks, it will need 15-20 days, a bit longer for customized products. But we are very flexible on the lead time, it will depend on the specific orders.
