Quick Details
-
Weight (KG):
-
1500 KG
-
Power (kW):
-
18kW
-
Product name:
-
Linear sanding machine
-
Mini processing length:
-
600mm
-
Working width:
-
20~200mm
-
Working thickness:
-
5~100mm
-
Speed:
-
8~42 m /min
-
Usage:
-
Sanding for solid wood and MDF strips
-
Function:
-
Sanding
-
Voltage:
-
220V/380V/415V
-
Application:
-
Wood sanding
-
Machine size:
-
6350*1500*1520mm
-
After-sales Service Provided:
-
Free spare parts
-
After Warranty Service:
-
Video technical support, Online support, Spare parts
-
Local Service Location:
-
None
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
TRANS-U
-
Machine Type:
-
Wood sanding machine
-
Weight (KG):
-
1500 KG
-
Power (kW):
-
18kW
-
Product name:
-
Linear sanding machine
-
Mini processing length:
-
600mm
-
Working width:
-
20~200mm
-
Working thickness:
-
5~100mm
-
Speed:
-
8~42 m /min
-
Usage:
-
Sanding for solid wood and MDF strips
-
Function:
-
Sanding
-
Voltage:
-
220V/380V/415V
-
Application:
-
Wood sanding
-
Machine size:
-
6350*1500*1520mm
-
After-sales Service Provided:
-
Free spare parts
-
After Warranty Service:
-
Video technical support, Online support, Spare parts
-
Local Service Location:
-
None

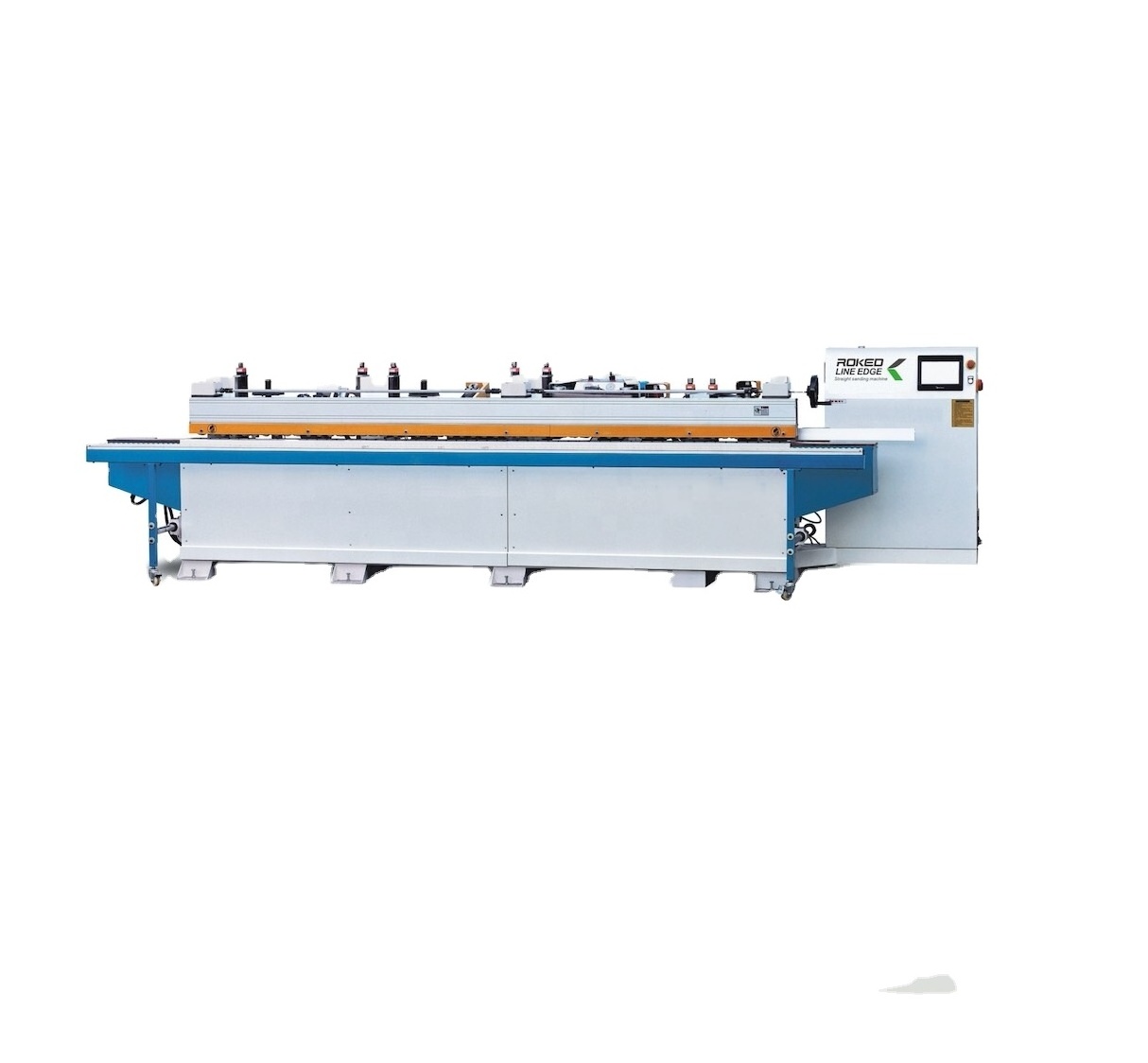

Automatic Linear sander line/ Profile sander/Line sander
Production introduction:
Applicable to all kinds of materials of linear shape strips, fit for before or after painting, also can use for flat surface, curved surface's sanding and polishing.
Door frame line, base board, molding, photo frame line or flat bar for baby bed or some other special shaped line.
The feeding speed can reach to 8~42m/min, high efficient. Sanding head is inverter controlled, fit for different sanding requirement.
The machine is equipped with automatic compensation device, for the consumption of the wheel to the actual work piece sanding length to set the parameter. Accurate compensation, reduce the cumbersome manual compensation.
Each part of teh sanding groups can rotate according to the actual shape of workpiece+-90 degree
Use the aside wheels type pressing device to press the work piece to prevent movement during sanding. Also can re-correc the bending deflection of the work pieces.
