Quick Details
-
Brick size:
-
400*100*200 mm, 400*120*200 mm, 200*100*60 mm, 300*150*100 mm, 400*150*200 mm, 240*115*90 mm, 200*200*60 mm, 150*150*100 mm, Other, 400*200*200 mm, 230*220*115 mm
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
HongBaoYuan
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
1260*1650*2000mm
-
Weight (KG):
-
1300 kg
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Cycle:
-
35-40s
-
Vibration Force:
-
40KN
-
Weight:
-
1.5T
Quick Details
-
Type:
-
Hollow Block Making Machine, Paving Block Making Machine, Interlock Block Making Machine, Curbstone Block Machine, Other, Autoclaved aerated concrete block (AAC)
-
Brick Raw Material:
-
sand,cement,fly ash,concrete
-
Production Capacity (Pieces/8 hours):
-
Other, 4480 pcs/8hours, 2500 pcs/8hours, 3400 pcs/8hours, 1920 pcs/8hours, 5760 pcs/8hours, 1500 pcs/8hours, 1280 pcs/8hours, 3000 pcs/8hours, 12000 pcs/8hours, 3200 pcs/8hours, 2560 pcs/8hours, 1000 pcs/8hours, 800 pcs/8hours, 2000pcs Hollow bricks
-
Brick size:
-
400*100*200 mm, 400*120*200 mm, 200*100*60 mm, 300*150*100 mm, 400*150*200 mm, 240*115*90 mm, 200*200*60 mm, 150*150*100 mm, Other, 400*200*200 mm, 230*220*115 mm
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
HongBaoYuan
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
1260*1650*2000mm
-
Weight (KG):
-
1300 kg
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Cycle:
-
35-40s
-
Vibration Force:
-
40KN
-
Weight:
-
1.5T
prices of block moulding machine in ghana QTJ4-40 manual block making machine in kenya
whatsapp:+ 86 13791519690
video link in youtube:
prices of block moulding machine in ghana QTJ4-40 manual block making machine in kenya Equipment superiority:

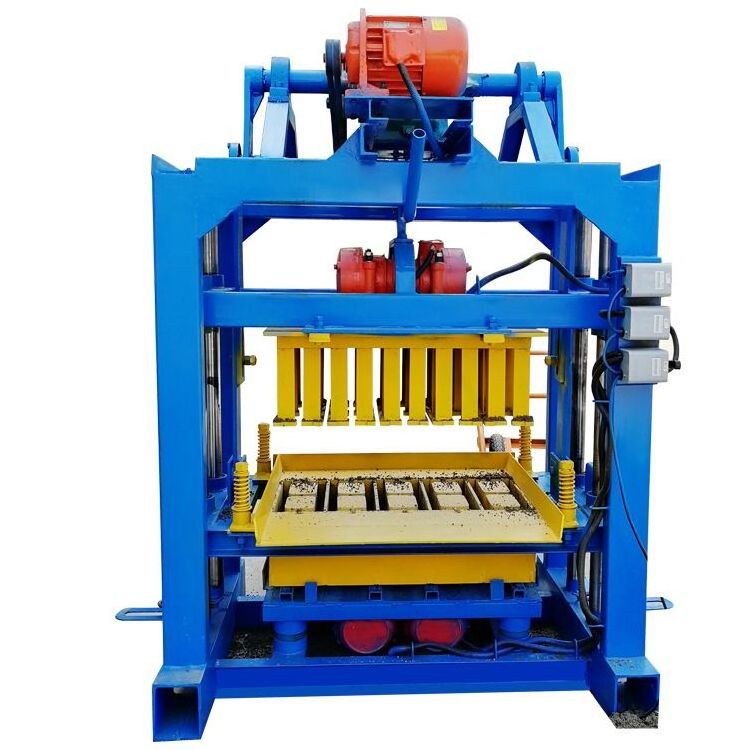

QTJ4-40 Block Forming Machine is one of the well sold models of our factory, This machine is very easy in operating. For this machine , a larger reductor of high quality is equpped, its key rotary parts are changed into bearings, thickened square steel frame is used and wear resisting material is adopted for its inside sleeves for directional positioning for four guiding columns so that the service life of this machine can be largely prolonged.
(1) adopt 350 reductor when other's 250 reductor
(2) for the steel frame 5mm, much stronger
(3) 2.2kw mortor, 3kw vibrator(upper mould) and 2x2.2kw vibrator(down mould), the hollow block
pressure 8-10Mpa, solid blocks pressure 10-12Mpa.
(4) For the moulds: high temperature carburizing heat treatment, it is durable.
(5) low investment for small scaled factory.
Main technical specifications:
| Power | 9.6kw |
| Cycle | 35-40s |
| Main machine | 350 reductor |
| Weight | 1.5 T |
| Overall size | 1160*1650*2000mm |
| pallet | 850*450*250mm |
| standards | GB/T8533-2008 |
