Quick Details
-
power phase number:
-
3 Phase
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
FMZ, FMZ
-
Model Number:
-
H800-22RG/30RP-T4-IP55
-
Warranty:
-
18 months, 18 months
-
Type:
-
AC-DC-AC inverter, DC/AC Inverters
-
Size:
-
208*200*192mm
-
Product name:
-

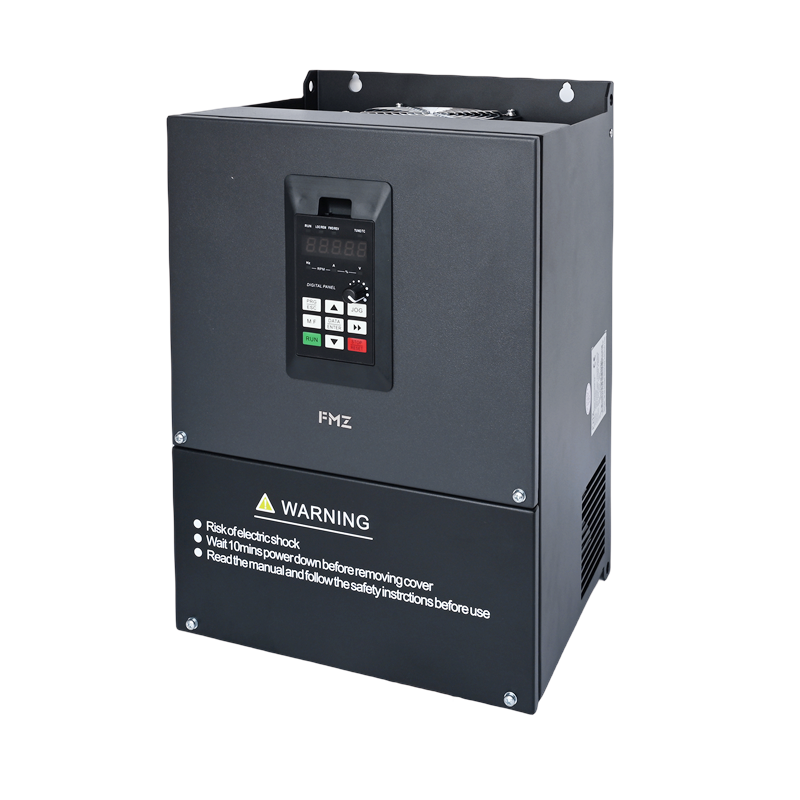

Frequency inverter VFD AC Drive
-
Model Series:
-
H800
-
Input voltage:
-
380V
-
Rated power:
-
22kw
-
Display:
-
LED
-
Control mode:
-
SVC,FVC,V/F Control
-
Output Voltage:
-
380V
Quick Details
-
Control Mode:
-
VF/Vector Control
-
Rated Power:
-
22kW
-
Nominal Voltage:
-
380V
-
power phase number:
-
3 Phase
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
FMZ, FMZ
-
Model Number:
-
H800-22RG/30RP-T4-IP55
-
Warranty:
-
18 months, 18 months
-
Type:
-
AC-DC-AC inverter, DC/AC Inverters
-
Size:
-
208*200*192mm
-
Product name:
-
Frequency inverter VFD AC Drive
-
Model Series:
-
H800
-
Input voltage:
-
380V
-
Rated power:
-
22kw
-
Display:
-
LED
-
Control mode:
-
SVC,FVC,V/F Control
-
Output Voltage:
-
380V
Product Description
|
Product name
|
|
H800 220V/380V High Performance AC Drive/VFD
|
|
|
|||
|
Power range
|
|
0.75KW-450KW
|
|
|
|||
|
Output Frequency Range
|
|
Vector control: 0 ~300Hz
V/F control: 0 ~320Hz |
|
|
|||
|
Control Mode
|
|
Open loop vector control (SVC)
Closed loop vector control (FVC) V/F control |
|
|
|||
|
Starting Torque
|
|
G type: 0.5 Hz/150% (SVC); 0 Hz/180% (FVC)
P type: 0.5 Hz/100% |
|
|
|||
|
Communication port
|
|
Support RS-485 and other mainstream fieldbus communication
|
|
|
|||
|
Application
|
|
Special for Synchronous Air Compressor, textile machinery, knitting machine, winding machine and etc.
|
|
|
|||
Model And Technical Data
|
Model No.
|
Adapter Motor
(HP)
|
Motor Power
(KW)
|
Input Current
(A)
|
Output Current
(A)
|
Outline Dimensions
（H*W*D）
（mm)
|
|||||
|
Single Phase Power: 220V, 50/60Hz
|
|
|
|
|
|
|||||
|
H800-0R4G/0R7P-S2
|
0.5
|
0.4
|
5.4
|
2.5
|
186*126*157
|
|||||
|
H800-0R7G/1R5P-S2
|
1
|
0.75
|
8.2
|
4
|
|
|||||
|
H800-1R5G/2R2P-S2
|
2
|
1.5
|
14
|
7.5
|
|
|||||
|
H800-2R2G/4R0P-S2
|
3
|
2.2
|
23
|
10
|
|
|||||
|
H800-4R0G/5R5P-S2
|
5.5
|
4.0
|
38
|
17
|
|
|||||
|
H800-5R5G/7R5P-S2
|
7.5
|
5.5
|
55
|
25
|
256*146*172
|
|||||
|
H800-7R5G/11RP-S2
|
10
|
7.5
|
65
|
32
|
|
|||||
|
Three Phase Power: 380V, 50/60Hz
|
|
|
|
|
|
|||||
|
H800-0R7G/1R5P-T4
|
1
|
0.75
|
3.4
|
2.3
|
186*126*157
|
|||||
|
H800-1R5G/2R2P-T4
|
2
|
1.5
|
5.0
|
3.7
|
|
|||||
|
H800-2R2G/4R0P-T4
|
3
|
2.2
|
5.8
|
5.1
|
|
|||||
|
H800-4R0G/5R5P-T4
|
5
|
3.7
|
10.5
|
9.0
|
|
|||||
|
H800-5R5G/7R5P-T4
|
7.5
|
5.5
|
14.6
|
13
|
256*146*172
|
|||||
|
H800-7R5G/11RP-T4
|
10
|
7.5
|
20.5
|
17
|
|
|||||
|
H800-11RG/15RP-T4
|
15
|
11
|
26
|
25
|
|
|||||
|
H800-15RG/18RP-T4
|
20
|
15
|
35
|
32
|
322*208*192
|
|||||
|
H800-18RG/22RP-T4
|
25
|
18
|
38.5
|
37
|
|
|||||
|
H800-22RG/30RP-T4
|
30
|
22
|
46.5
|
45
|
|
|||||
|
H800-30RG/37RP-T4
|
40
|
30
|
62
|
60
|
430*283*230
|
|||||
|
H800-37RG/45RP-T4
|
50
|
37
|
76
|
75
|
|
|||||
|
H800-45RG/55RP-T4
|
60
|
45
|
92
|
90
|
510*340*280
|
|||||
|
H800-55RG/75RP-T4
|
75
|
55
|
113
|
110
|
|
|||||
|
H800-75RG/90RP-T4
|
100
|
75
|
157
|
152
|
|
|||||
|
H800-90RG/110RP-T4
|
125
|
90
|
180
|
176
|
602*474*298
|
|||||
|
H800-110RG/132RP-T4
|
150
|
110
|
214
|
210
|
|
|||||
|
H800-132RG/160RP-T4
|
175
|
132
|
256
|
253
|
|
|||||
|
H800-160RG/200RP-T4
|
210
|
160
|
307
|
304
|
|
|||||
|
H800-200RG/220RP-T4
|
260
|
200
|
385
|
380
|
965*569*370
|
|||||
|
H800-220RG/250RP-T4
|
300
|
220
|
430
|
426
|
|
|||||
|
H800-250RG/280RP-T4
|
350
|
250
|
468
|
470
|
|
|||||
|
H800-280RG/315RP-T4
|
370
|
280
|
525
|
520
|
|
|||||
|
H800-315RG/355RP-T4
|
430
|
315
|
590
|
590
|
|
|||||
|
H800-355RG/400RP-T4
|
480
|
355
|
665
|
650
|
1435*812*400
|
|||||
|
H800-400RG/450RP-T4
|
530
|
400
|
705
|
690
|
|
|||||
|
H800-450RG/500RP-T4
|
615
|
450
|
790
|
775
|
|
|||||
H800 Series Frequency Inverter
H800 Vector VFD
H800 considers customers’ needs and combines general purpose function and industrial-oriented function. It features PI control, simple PLC, flexible I/O terminals and pulse frequency setting. You can select whether to save the parameters upon power off or stop, bind frequency setting channel with command channel, zero frequency return difference zero frequency hysteresis, main and auxiliary frequency setting, traverse operation, length control, etc. It is an integral, cost-effective and highly reliable solution for manufacture in the related fields.
H800 series can satisfy the customers’ requirements on low noise and EMI by using optimized PWM technology and EMC design.
H800 series frequency inverter is equipped with braking unit. If there is a need for energy-consuming braking, please select a braking resistor according to the manual.
Advantages
1.
LED Keypad Display
.
Through it, operation and configuration of the inverter can be done.
2.
H800 series inverter is equipped
with braking unit
. If there is a need for energy-consuming braking, please select a braking resistor according to the manual.
3.
High torque
starting
characteristics:
0.5 Hz/150% (SVC); 0Hz/180% (FVC)
, speed stabilization accuracy up to
±5% (FVC)
, wide speed range, and super adaptability;
4.
It can realize accurate
parameter self-learning
and provide excellent motor drive performance
5.
It has multiple guarantees such as
fast current limit
, overload, overvoltage, overheating, load drop, etc., instantaneous stop and non-stop function, realizes the complete separation of VF and operation, and also has the function of
overexcitation
;
6.
Abundant expansion card options, support I/O expansion, communication bus expansion, support
RS-485
and other mainstream field bus communication, support a variety of
PG cards
;
7.
Support asynchronous motor and synchronous motor control at the same time;
Specification
|
Product name
|
H800 Series 220V/380V AC Drive/VFD
|
|
Place of Origin
|
Shanghai, China
|
|
Brand Name
|
FMZ
|
|
Model Number
|
H800-22RG/30RP-T4-IP55
|
|
Type
|
Frequency inverters
|
|
Control mode
|
Open loop vector control (SVC)
Closed loop vector control (FVC) V/F control |
|
Input voltage
|
380V
|
|
Rated power
|
22KW
|
|
Output Type
|
Three phase output
|
|
Output Current
|
45A
|
|
Output Frequency
|
50Hz/60Hz
|
|
Size
|
208*322*192MM
|
|
Weight
|
6.8KG
|
|
Warranty
|
18 months
|
Wiring diagram
Installation Instructions
Packing & Delivery
1)
Trade Term: FOB Shanghai/Yiwu/Guangzhou/Shenzhen
(Trade term will be Ex-works if the order amount is below 20,000 but we also will afford the delivery to your appointed forwarder or warehouse located in the above four cities)
2) Package
The package is FMZ Standard. OEM packing (≥20,000 US Dollar per order)
(Trade term will be Ex-works if the order amount is below 20,000 but we also will afford the delivery to your appointed forwarder or warehouse located in the above four cities)
2) Package
The package is FMZ Standard. OEM packing (≥20,000 US Dollar per order)
(If there is any special request, the packing cost should be re-negotiated)
|
Single Product Size
|
208*322*192MM
|
|
|
|
|||
|
Single Package Dimension
|
390*260*280MM
|
|
|
|
|||
|
Single Gross Weight
|
6.8KG
|
|
|
|
|||
