Quick Details
-
Graphic Format Supported:
-
AI, BMP, Dst, Dwg, DXF, DXP, LAS, PLT
-
Cooling Mode:
-
WATER COOLING
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Redsail
-
Dimension(L*W*H):
-
1990*1440*1100mm
-
Weight (KG):
-
420 KG
-
After-sales Service Provided:
-
Overseas service center available
-
Certification:
-
ce
-
control system:
-
Ruida
-
driver type:
-
micro stepping motor
-
laser power:
-
80W/100W/130W
-
rotation axis:
-
optional
-
Laser tube:
-
Sealed CO2 Glass Tube
-
Name:
-
Laser Cutter
-
Software:
-
autolaser or lasermate
-
Function:
-
Cutting Engraving Marking
Quick Details
-
Engraving Area:
-
1300*900mm
-
Laser Type:
-
CO2
-
Engraving Speed:
-
1000mm/s
-
Graphic Format Supported:
-
AI, BMP, Dst, Dwg, DXF, DXP, LAS, PLT
-
Cooling Mode:
-
WATER COOLING
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Redsail
-
Dimension(L*W*H):
-
1990*1440*1100mm
-
Weight (KG):
-
420 KG
-
After-sales Service Provided:
-
Overseas service center available
-
Certification:
-
ce
-
control system:
-
Ruida
-
driver type:
-
micro stepping motor
-
laser power:
-
80W/100W/130W
-
rotation axis:
-
optional
-
Laser tube:
-
Sealed CO2 Glass Tube
-
Name:
-
Laser Cutter
-
Software:
-
autolaser or lasermate
-
Function:
-
Cutting Engraving Marking

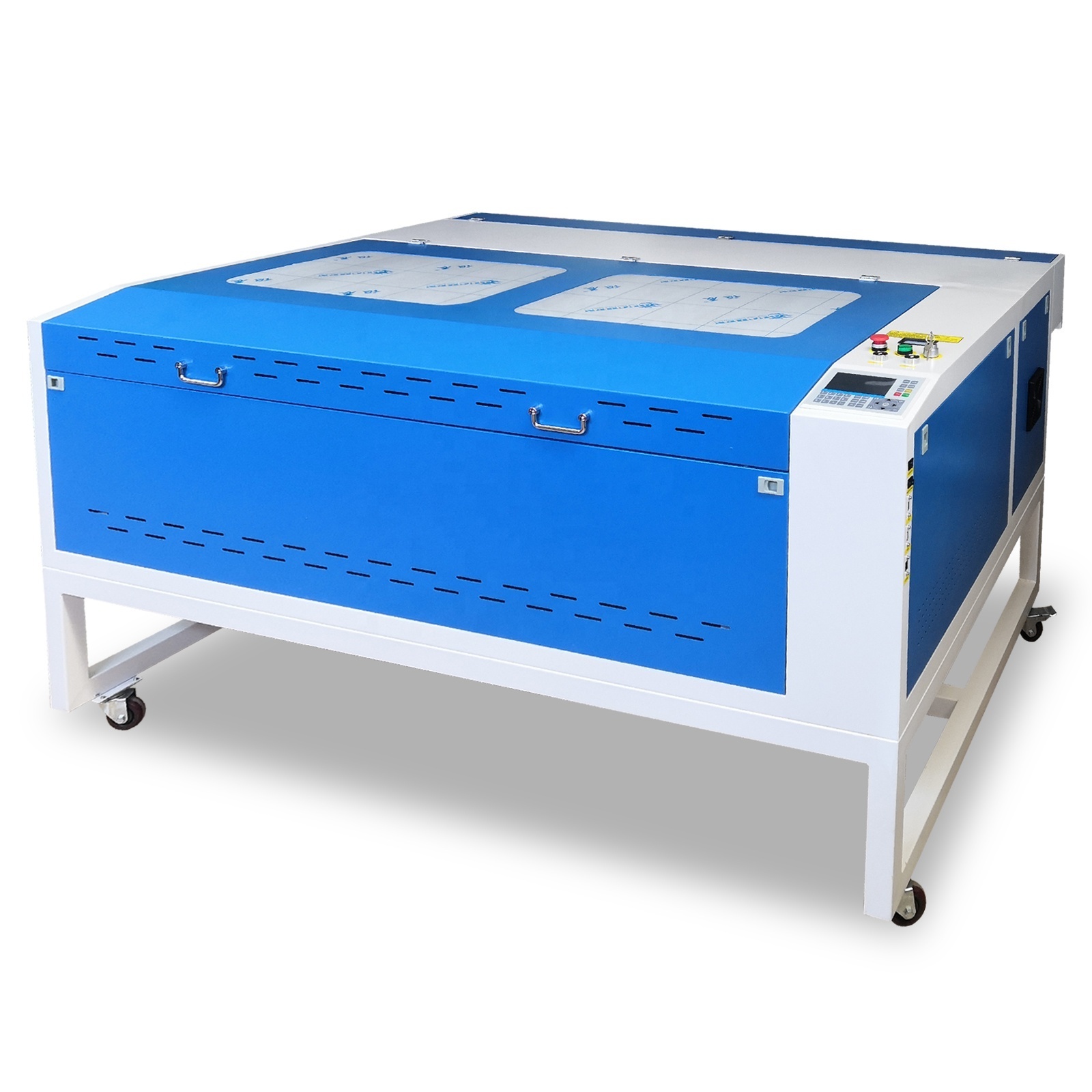

Redsail 1390 CO2 laser engraving and cutting machine 80W/100w.130w/150w European plug glass laser engraving machine
Redsail
Laser Cutting Machine
works with Co2 Laser, it is used for cutting wooden plate, acrylic, paper, plastic, rubber and other no-metal materials for complex shape. Redsail low cost Laser Cutter is useful in many products such as air plane model, advertisement, decoration, article gifts, clothing and so on.
Redsail
Laser Engraving Machine
and
Laser Cutter
is designed for industry application, driven by high-grade stepper motor, precision guide way drive and High-precision in positioning make the running more stable, The Laser power of Redsail
Laser cutter
is from 80W to 180W.
Parameters of machine
|
Model |
X1390C |
|
Laser tube
|
Water cooling Co2 sealed glass |
|
Control system |
DSP |
|
Drive type |
Micro Stepping Motor |
|
Laser Power |
80W/100W/130W/150W/180W |
|
Work Area (mm) |
1300 x 900 |
|
Max speed |
1000 mm/s |
|
Image form |
Plt, Dxf, Bmp, Ai, Dst |
|
Resolution |
2500 DPI |
|
Controller |
Ruida(RDWorks)/TopWisdom(AutoLaser) |
|
PC Interface |
USB3.0/ USB Disk/NetWork |
|
Red Dot Pointer |
Yes |
|
Location precision |
<0.01mm |
|
Motorized Up and Down table |
200mm |
|
Accessories |
Air assistant, Exhaust system, Water cooling sytem |
|
Power |
110V or 220-240V/ 50 - 60Hz |
|
Machine Dimension |
1990*1440*1100(mm) |
|
N. W. (Kg) |
380 |
|
G. W. (Kg) |
420 |
Standard accessories
(01)Laser Engraving software Package(English Version)
(02)User Manual(CD)
(03)Industry water cooling system(Chiller)
(04)Airexhaust fan
(05)Air Pump
(06)Communication cable
(07)3 Reflect optics(installed in the machine)
(08)1 Focus optics(installed in the machine)
(09)1 Laser tube
(10)Other tools
Optional accessories
(01)Rotary attachment
(02)Beam combiner replace red dot
(03)Laser tube of high power(100W/130W/150W)
(04)Honey comb platform
(05)Water chiller(CW-5000 CW-5200)
Machine details
Application:
Applicable Materials: Wood, Acrylic, Plywood, MDF, Leather, Glass, Plastic, Acryl, PMMA, Perspex, Plexiglas, Plexiglass, ABS Double Color Board, Organic Glass, PVC, Paper, Paperboard, Cardboard, Marble, Bamboo, Balsa, Rubber Sheet, etc.
Applicable Industries: Advertising, Signs, Gifts & Crafts, Promotional Items, Plaques, Trophies, Awards, Precise Ornaments, Souvenirs, Models, Architectural Models, Furniture, etc.
Remarks
1.All of the products will be full tested before delivery.
2.Payment:ByT/Tin advance.
3.Delivery:within 10 days after receipt ofT/T payment.
4.Min.order:Iunit.
5.Validity:30days.
About us
Q: Do I need two laser machines to engrave and cut separately?
A: No, the laser machines we provide are capable of both engraving and cutting. One machine alone can fulfill the two purposes.
Q: Do the laser machines need to be connected to a laptop or desktop computer to work?
A: Yes, either is ok. It supports Windows 2000, Windows XP, Win 7 and other operating systems
Q: What kind of graphic format does it support?
A: JPG, PNG, BMP, PLT, DST, DXF, CDR, AI, DSB, GIF, MNG, TIF, TGA, PCX, JP2, JPC, PGX, RAS, PNM, SKA, RAW , etc.
Q: How to distinguish laser tubes with different powers and applications?
A: 1. Laser tube length (relatively speaking, the longer, the bigger)
2. Laser tube diameter (relatively speaking, the thicker, the bigger)
3. The bigger a laser tube power is, the deeper the machine can cut, but its light spot is bigger. So, it is better to use a machine with a low-power laser tube to engrave, such as 40W, 50W or 65W.
Q: Is it better to increase blow to improve laser processing performance?
A: For some thick materials, it works. But, when carving some other materials, you need to blow less.
Q: How long will it take to learn to operate a laser machine?
A: If you are able to use some basic graphic design software, it will only take a few hours to master the operation. You just need to do some simple tests on different processing materials to know how to set the correct speed and laser power.
