Quick Details
-
Brand Name:
-
SDJK
-
Weight (KG):
-
4000 kg
-
Model:
-
Forklifts
-
Product Name:
-

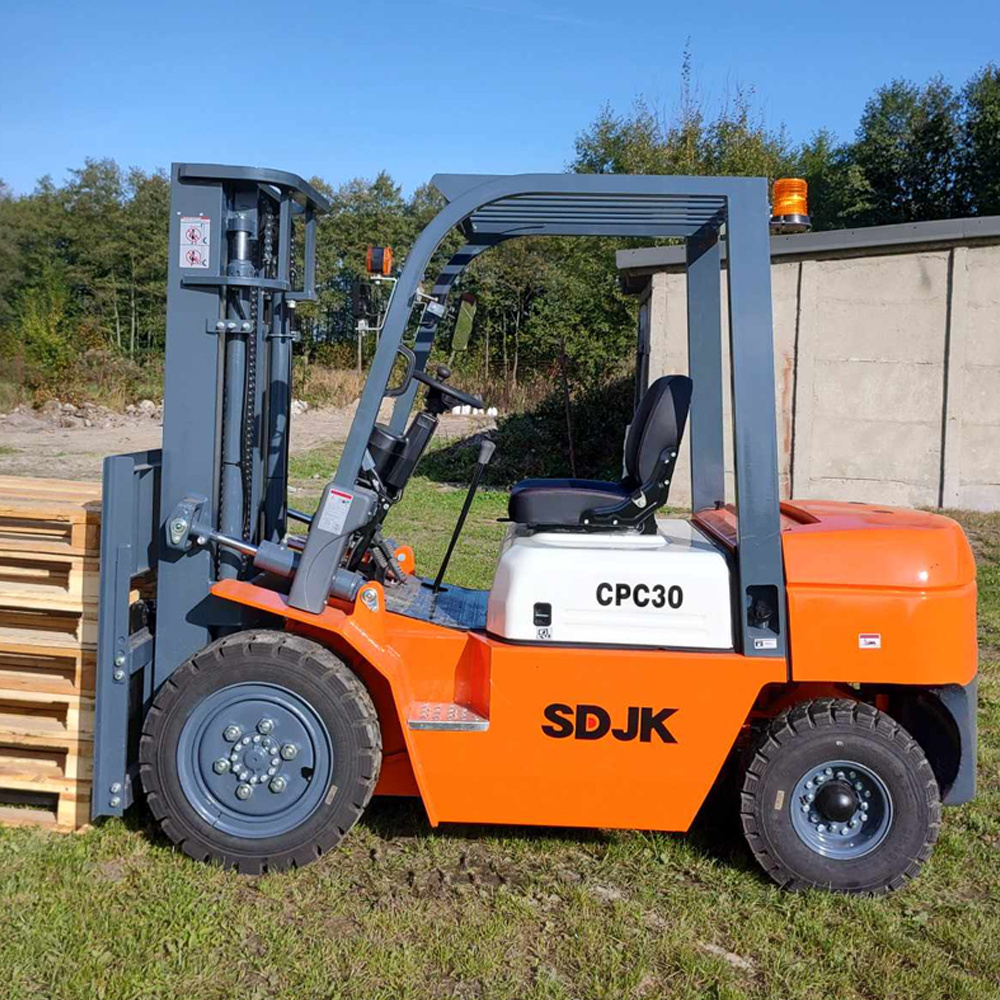

Diesel Forklift
-
Key words:
-
New Forklifts
-
Item:
-
diesel forklift 3 ton epa certified
-
Name:
-
Diesel Terrain Forklift
-
maximum lifting:
-
530/550mm
-
Free lifting height:
-
100-150mm
-
Width:
-
1290mm
-
Wheelbase:
-
1400-1900mm
-
Overhead guard height:
-
2180mm
Quick Details
-
Min. Lifting Height:
-
2050mm
-
Warranty:
-
1 Year
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
SDJK
-
Weight (KG):
-
4000 kg
-
Model:
-
Forklifts
-
Product Name:
-
Diesel Forklift
-
Key words:
-
New Forklifts
-
Item:
-
diesel forklift 3 ton epa certified
-
Name:
-
Diesel Terrain Forklift
-
maximum lifting:
-
530/550mm
-
Free lifting height:
-
100-150mm
-
Width:
-
1290mm
-
Wheelbase:
-
1400-1900mm
-
Overhead guard height:
-
2180mm
Our Factory Produces Various Models Of CPC Forklifts And Supports OEM ODM
The performance parameters are for reference only
Why Choose Our CPC Forklifts
1. The appearance is simple, generous and beautiful, and strict environmental protection design;
2. The wide-view gantry design makes the driver's vision wider;
3. Reliable LCD digital special instrument, friendly man-machine interface, it is convenient for the driver to accurately control
the vehicle status;
4. The new steering wheel adjustment mechanism improves the operating comfort and adjustment reliability;
5. The design of the high-top large-diameter air intake system can keep the engine away from dust, effectively exert the engine
performance, and improve the service life;
6. Optional casting steering axle, low maintenance cost later.
1. The appearance is simple, generous and beautiful, and strict environmental protection design;
2. The wide-view gantry design makes the driver's vision wider;
3. Reliable LCD digital special instrument, friendly man-machine interface, it is convenient for the driver to accurately control
the vehicle status;
4. The new steering wheel adjustment mechanism improves the operating comfort and adjustment reliability;
5. The design of the high-top large-diameter air intake system can keep the engine away from dust, effectively exert the engine
performance, and improve the service life;
6. Optional casting steering axle, low maintenance cost later.
|
Model
|
CPC15
|
CPC20
|
CPC25
|
|
Rated lifting load（kg）
|
1500
|
1500
|
2500
|
|
Load center distance（mm）
|
500
|
500
|
500
|
|
Free lifting height（mm）
|
100
|
150
|
150
|
|
overall length (With fork/Without fork)（mm）
|
3180/2260
|
3422/2502
|
3646/2576
|
|
Width（mm）
|
1090
|
1170
|
1170
|
|
Overhead guard height（mm）
|
2050
|
2070
|
2070
|
|
Wheelbase（mm）
|
1400
|
1600
|
1600
|
|
Minimum ground clearance（mm）
|
110
|
110
|
110
|
|
Mast tilt angle (front/rear)（%）
|
6° /12°
|
6° /12°
|
6° /12°
|
|
Tire no. (before)
|
6.5-10-1 OPR
|
7.00x12-12PR
|
7.00x12-12PR
|
|
Tire no. (after)
|
5.00-8-1 OPR
|
6.00x9-1 OPR
|
6.00x9-1 OPR
|
|
Minimum turning radius (outer side)（mm）
|
1950
|
2170
|
2240
|
|
Minimum right angle aisle width（mm）
|
3630
|
3900
|
3970
|
|
Fork size（mm）
|
920x100 x 35
|
1070X100X45
|
1070X100X45
|
|
maximum working speed(Full-load/No-load) （km/h）
|
14/15
|
17/19
|
17/19
|
|
maximum lifting speed(Full-load/No-load)（mm/s）
|
500/480
|
530/550
|
530/550
|
|
maximum gradeability(Full-load/No-load)（%）
|
20/21
|
20/21
|
20/21
|
|
Forklift weight（kg）
|
2900
|
3320
|
3320
|
|
Engine model
|
Quanchai/B02-082
|
Quanchai4C2-50V32/ PAGE/03
Quanchai4C2-50C41
|
Quanchai4C2-50V32/ PAGE/03
Quanchai4C2-50C41
|
