Quick Details
-
Filling Accuracy:
-
±1%
-
Driven Type:
-
Electric and pneumatic
-
Voltage:
-
110V/220V
-
Place of Origin:
-
Guangdong
-
Brand Name:
-
ZONESUN
-
Dimension(L*W*H):
-
ZONESUN
-
Weight:
-
400 KG
-
Core Components:
-
Other
-
After-sales Service Provided:
-
No overseas service provided
-
Marketing Type:
-
New Product 2022
Quick Details
-
Machinery Capacity:
-
1800BPH
-
Packaging Material:
-
Wood
-
Filling Material:
-
Paste
-
Filling Accuracy:
-
±1%
-
Driven Type:
-
Electric and pneumatic
-
Voltage:
-
110V/220V
-
Place of Origin:
-
Guangdong
-
Brand Name:
-
ZONESUN
-
Dimension(L*W*H):
-
ZONESUN
-
Weight:
-
400 KG
-
Core Components:
-
Other
-
After-sales Service Provided:
-
No overseas service provided
-
Marketing Type:
-
New Product 2022
Products Description

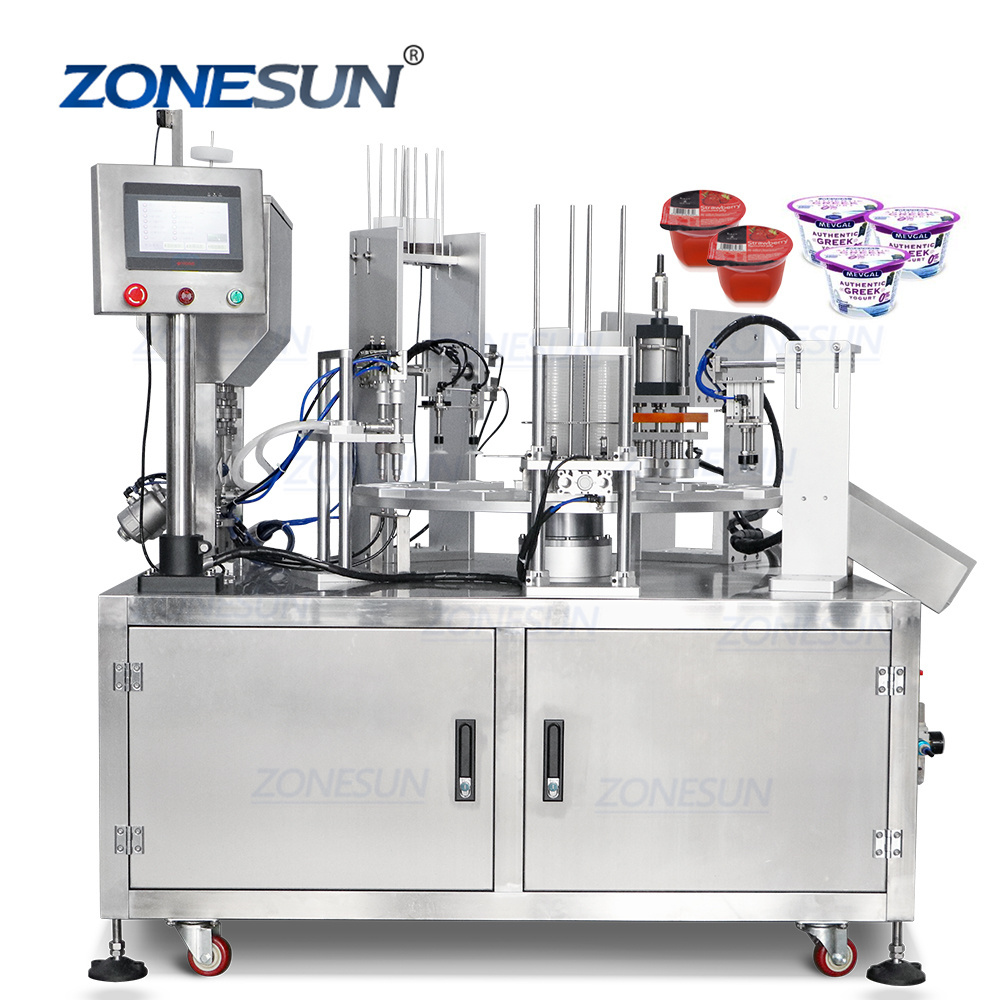

This rotary filling sealing machine is good for feeding cups,filling liquid or paste into cups,sealing cups, multiple production process at one machine,the monoblock filling sealing machine helps you save working space.It is good for packaging ketchup,yogurt,chocolate,jam etc.
|
Machine Model
|
ZS-AFS02
|
|
|
|
|||
|
Voltage
|
220V 50-60Hz
|
|
|
|
|||
|
Power
|
4kW
|
|
|
|
|||
|
Filling Pump
|
Piston Pump
|
|
|
|
|||
|
Working Speed
|
About 25-30pcs/min
(depending on cup size and filling material)
|
|
|
|
|||
|
Filling Range
|
20-200ml(Can be customized)
|
|
|
|
|||
|
Suitable Cup Size
|
Can be customized
|
|
|
|
|||
|
Air Pressure
|
6Mpa
|
|
|
|
|||
|
Machine Weight
|
About 400kg
|
|
|
|
|||
|
Machine Configuration
|
|
|
|
|
||||
|
Machine Component
|
Brand
|
Origin
|
|
|
||||
|
PLC
|
Delta
|
Taiwan,China
|
|
|
||||
|
Servo Indexer
|
FSZZC
|
Foshan, China
|
|
|
||||
|
Photoelectric
|
Panasonic
|
Japan
|
|
|
||||
|
Relay
|
Schneider
|
France
|
|
|
||||
This structure is designed for feeding plastic cups automatically,saving labor cost.It can be customized according to cup size.
With pneumatic filling heads,it can fill thicker liquid like yogurt,ketchup.The filling speed and time of two heads can be adjusted separately.Filling range can be customized according to production need.
It is designed for sealing plastic cups. Driven by powerful cylinder,it can run steadily.The sealing temperature can be adjusted according to production need.
