Quick Details
-
Voltage:
-
380V,50HZ,3 phase
-
Disc Dia.:
-
None
-
No Load Speed:
-
None
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Longxiang
-
Model Number:
-
LX-1
-
Warranty:
-
1year
-
Product name:
-
Bake Oven Booth
-
Color:
-
Cutomized
-
Lighting System:
-
32pcs LED Lights
-
Heating System:
-
Electric Heating
-
Packing detail:
-
Safe Packing
-
Ventilation system:
-
2pcs Intake Fans
-
Control System:
-
Electric Control Panel
-
Filter system:
-
Primary Filter + Floor Filter
-
Product:
-
Automobile Paint Booth
-
Ceiling light:
-
32 Pieces
Quick Details
-
Power:
-
6KW
-
External Size:
-
8350*4000*3200mm
-
Internal Size:
-
6900*3900*2650mm
-
Voltage:
-
380V,50HZ,3 phase
-
Disc Dia.:
-
None
-
No Load Speed:
-
None
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Longxiang
-
Model Number:
-
LX-1
-
Warranty:
-
1year
-
Product name:
-
Bake Oven Booth
-
Color:
-
Cutomized
-
Lighting System:
-
32pcs LED Lights
-
Heating System:
-
Electric Heating
-
Packing detail:
-
Safe Packing
-
Ventilation system:
-
2pcs Intake Fans
-
Control System:
-
Electric Control Panel
-
Filter system:
-
Primary Filter + Floor Filter
-
Product:
-
Automobile Paint Booth
-
Ceiling light:
-
32 Pieces

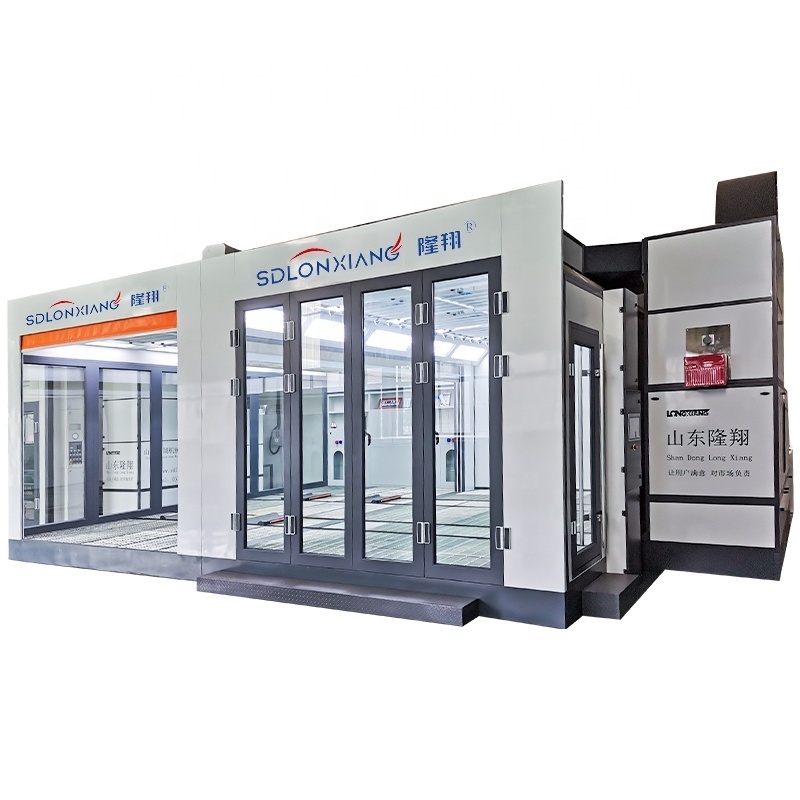

Products Description
|
LX1
|
|
|
||
|
Outside size
|
8350×4000×3200mm(L×W×H)
|
|
||
|
Inside size
|
6900×3900×2650mm(L×W×H)
|
|
||
|
Entrance door
|
3 folds,3000x2600 mm(W×H), bending steel door,cast aluminum hinge, tempered glass window
|
|
||
|
Emergency door
|
650*2000mm(W*H),with pressure lock，with glass window，with step
|
|
||
|
Main System
|
|
|
||
|
Cabin system
|
Wall panel
|
-Sandwich style EPS 50mm,0.376mm thick steel, anti-flame and heat-insulation.
-High quality galvanized steel roof panel. |
||
|
|
Basement
|
Optional
|
||
|
Ventilation system
|
Inlet fan
|
Optional
|
||
|
|
Outlet fan
|
1 set European-style exhaust air fan,the power is 5.5KW ,air capacity:18000m³/h.
|
||
|
|
Cabinet setting type
|
-Exhaust air from back downside,adopt powder quadrate steel frame , strong and beautiful .
-Cabinet for the fan*1unit ,910mm height air duct *2units, -Elbow: 90°*1 unit |
||
|
|
Airflow speed
|
On load 0.3m/s,ventilation rate:280time/h
|
||
|
Heating system
|
Optional : Movable infrared baking lamps(3 lamps or 6 lamps)
|
|
||
|
Lighting system
|
Ceiling lights
|
8 groups*4 units=32 units*16W，LED lighting
|
||
|
|
Side lights
|
Optional
|
||
|
Filtering system
|
Primary filter
|
Grade G2 plate type , filtering rate＞83%
|
||
|
|
Floor filter
|
Multi-layer fiberglass filter,filtering rate＞70%
|
||
|
Control system
|
Control panel
|
Intelligent control system
|
||
|
|
Function
|
Lighting,painting, Overload, lack of phase protection
|
||
|
Voltage/Frequency
|
380V,50HZ,3 phase
|
|
||
|
Total power
|
6KW
|
|
||
