Quick Details
-
Power:
-
4.5Kw
-
Table Size:
-
2640*1120mm
-
Overall Dimensions:
-
2850*1250*2100mm
-
Weight:
-
3600 kg
-
Marketing Type:
-
New Product 2022
-
Product name:
-
4-14M Self Propelled Scissor Lift
-
Keywords:
-
Self-propelled Scissor Lift Platform
-
Material:
-
High Strength Manganese Steel
-
Usage:
-
Aerial Maintenance Work
-
Voltage:
-
110v 220v 240v 380v Optional
-
Feature:
-
Easy Operation Safety Convenience
-
Type:
-
Self-propelled Scissor Lift Platform
-
CE:
-
Yes
-
Color:
-
Customers' Requirements
Quick Details
-
Warranty:
-
1 Year
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
XINJUXIN
-
Power:
-
4.5Kw
-
Table Size:
-
2640*1120mm
-
Overall Dimensions:
-
2850*1250*2100mm
-
Weight:
-
3600 kg
-
Marketing Type:
-
New Product 2022
-
Product name:
-
4-14M Self Propelled Scissor Lift
-
Keywords:
-
Self-propelled Scissor Lift Platform
-
Material:
-
High Strength Manganese Steel
-
Usage:
-
Aerial Maintenance Work
-
Voltage:
-
110v 220v 240v 380v Optional
-
Feature:
-
Easy Operation Safety Convenience
-
Type:
-
Self-propelled Scissor Lift Platform
-
CE:
-
Yes
-
Color:
-
Customers' Requirements

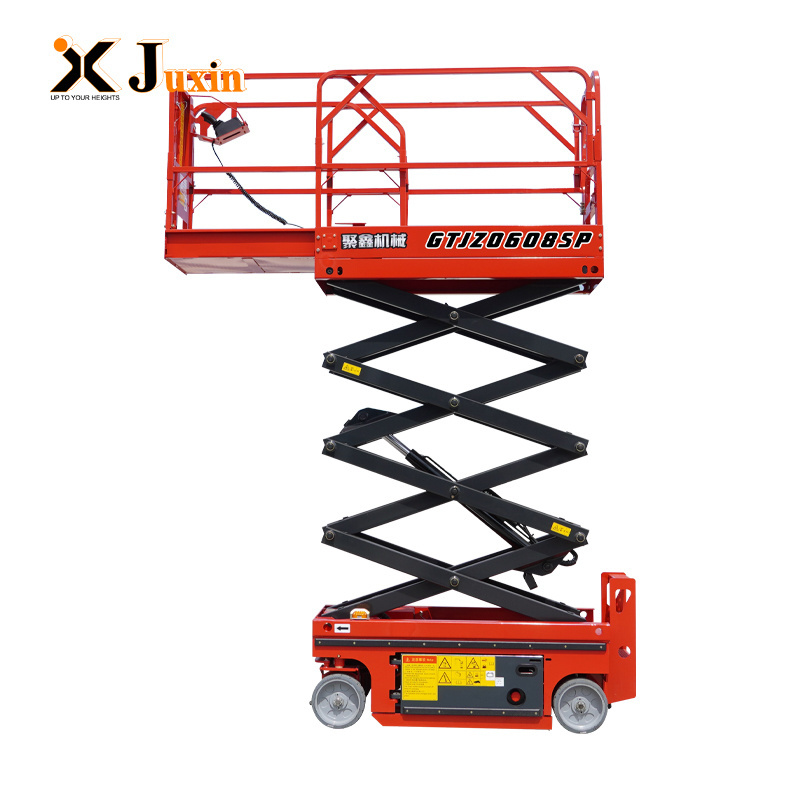

6-14M 200-450KG Self-Propelled Battery Powered Wheel Type Scissor Lift Vertical Aerial Scissor Lift
Products Description
1.Products advantages
Self propelled Scissor Lifts does not need any outriggers, one man operates on the working platform
Moving forward, turning around and lifting up are easily operated.
Short chargeable time and long durable time of the battery.
Easily moved, spacious working platforms, smooth working condition and high working efficiency
2.Moving method
The chargeable battery provides the power to move and steer around.
3. Lifting Power
The chargeable battery provides the power to raise up the lift platforms.
Working heights ranges from 4m, 6m, 8m, 9m, 10m, 12m, 14m.
4. Applications
It is widely used for aerial installation and maintenance of the working sites without power supply and
with smooth working grounds, such as hotels, grand hall, sport stadium, large factory, warehouse,
granary, bus/railway stations, hotels, airports, gas station and aerial pipeline.
Self propelled Scissor Lifts does not need any outriggers, one man operates on the working platform
Moving forward, turning around and lifting up are easily operated.
Short chargeable time and long durable time of the battery.
Easily moved, spacious working platforms, smooth working condition and high working efficiency
2.Moving method
The chargeable battery provides the power to move and steer around.
3. Lifting Power
The chargeable battery provides the power to raise up the lift platforms.
Working heights ranges from 4m, 6m, 8m, 9m, 10m, 12m, 14m.
4. Applications
It is widely used for aerial installation and maintenance of the working sites without power supply and
with smooth working grounds, such as hotels, grand hall, sport stadium, large factory, warehouse,
granary, bus/railway stations, hotels, airports, gas station and aerial pipeline.
|
Model
|
Platform Height(m)
|
Working Height(m)
|
Platform Size(m)
|
Load
(kg) |
Overall Dimension
(l*w*h) |
Lifting Motor
(V/kw) |
Weight
(kg)
|
|
GTJZ0608NP
|
6
|
8
|
2.27*0.81
|
380
|
2.485*0.82*1.86
|
24/4.5
|
1820
|
|
GTJZ0612
|
6
|
8
|
2.27*1.11
|
450
|
2.485*1.21*1.68
|
24/4.5
|
2070
|
|
GTJZ0808NP
|
8
|
10
|
2.27*0.81
|
230
|
2.492*0.82*1.985
|
24/4.5
|
1970
|
|
GTJZ0812
|
8
|
10
|
2.27*1.11
|
450
|
2.485*1.21*1.8
|
24/4.5
|
2220
|
|
GTJZ1012
|
10
|
12
|
2.27*1.11
|
320
|
2.485*1.21*1.93
|
24/4.5
|
2932
|
|
GTJZ1212
|
11.8
|
13.8
|
2.27*1.11
|
320
|
2.485*1.21*2.06
|
24/4.5
|
2990
|
|
GTJZ1412
|
13.7
|
15.7
|
2.64*1.125
|
230
|
2.86*1.28*2.1
|
24/4.5
|
3730
|
Product presentation
Small scissor lift is widely used to workshop building site, hotel, airport, station, dock and so on.
Mainly used to installing, repairing and cleaning high aerial equipment,power equipment, overhead pipeline and so on.
It is an ideal equipment for guaranteeing working safe,improving working efficiency and making aerial working, more convenient and
quick.
Mainly used to installing, repairing and cleaning high aerial equipment,power equipment, overhead pipeline and so on.
It is an ideal equipment for guaranteeing working safe,improving working efficiency and making aerial working, more convenient and
quick.
Security assurance
1. Control voltage is DC24V.Keeping working person safe.
2. Electrical control box is water-proof design.
3. Installing Emergency button,Can keeping working person safe.
4. Self-locking function will work when electricity is suddenly cut off.
5. System have Emergency drop valve,which can let platform down safely.
when electricity is suddenly cut off.
6. Four hydraulic supporting legs in button.which can keep machine stable.
2. Electrical control box is water-proof design.
3. Installing Emergency button,Can keeping working person safe.
4. Self-locking function will work when electricity is suddenly cut off.
5. System have Emergency drop valve,which can let platform down safely.
when electricity is suddenly cut off.
6. Four hydraulic supporting legs in button.which can keep machine stable.
Main features
This type scissor lift own automatic walking function.It can be used in different working condition,and do not need external power
supply and artificial traction.It is mobile flexible, convenient operation, lift freely, only one people can finish forward,
backward, steering, fast and slow walk. It's easily moved with high working efficiency.This type scissor lift can be move while
extended and controlled from platform by the operator.It is walking,reversing, turning and lifting can be achieved on the platform
board, self-movement at a the full height.Low noise allows the operation personnel work in a silent environment and the
large-angle steering system provides a good maneuverability.
supply and artificial traction.It is mobile flexible, convenient operation, lift freely, only one people can finish forward,
backward, steering, fast and slow walk. It's easily moved with high working efficiency.This type scissor lift can be move while
extended and controlled from platform by the operator.It is walking,reversing, turning and lifting can be achieved on the platform
board, self-movement at a the full height.Low noise allows the operation personnel work in a silent environment and the
large-angle steering system provides a good maneuverability.
Factory
Jinan Juxin Machinery Co., Ltd. was established in 2008, is located in the rural Chinese manufacturer of lifting
platforms-Jiyang, the registered capital of one hundred fifty million yuan, is one of the top ten famous enterprises of lifting
platforms, parking system. 'A brand integrity, tree centuries JUXIN" as the goal, adhering to the "honest innovation, cooperation and win-win" business philosophy,focused on research and development of hydraulic lifting products, Jinan City business safety standardization. and has secured a perspective garage "special equipment manufacturing license" (ID: TS2410M58-2019), the registered trademark "XINJUXIN" products by the China people's Insurance company of product quality liability insurance, sold at home and abroad, by the majority of users.
Jinan Juxin Machinery Co., Ltd. was established in 2008, is located in the rural Chinese manufacturer of lifting
platforms-Jiyang, the registered capital of one hundred fifty million yuan, is one of the top ten famous enterprises of lifting
platforms, parking system. 'A brand integrity, tree centuries JUXIN" as the goal, adhering to the "honest innovation, cooperation and win-win" business philosophy,focused on research and development of hydraulic lifting products, Jinan City business safety standardization. and has secured a perspective garage "special equipment manufacturing license" (ID: TS2410M58-2019), the registered trademark "XINJUXIN" products by the China people's Insurance company of product quality liability insurance, sold at home and abroad, by the majority of users.
Company Strength
The company has automated cutting equipment, automatic welding equipment, shot blasting lines, coating lines, welding robots and a series of modern production equipment, hydraulic series in the production and use of domestic Italian hydraulic power units both overall performance have reached the international advanced level. Guides mobile, fixed lifting platform, dock ramp, parking system, lifting stage, dumbwaiter and other accessibility eight series more than 90 varieties, widely used in the plant maintenance, industrial installation, equipment maintenance, property management, warehouse , aviation, airports, ports, railway stations, gas stations, stadiums, exhibition halls and many other industries and places,but also designed and manufactured according to the needs of users including special dimensions,carrying capacity,different power,explosion-proof electrical hydraulic lifting platform.
WHY CHOOSE US?
1.Presale service:
Free comprehensive and detailed technology consultancy in construction sites, referential programs for construction equipment and
the most suitable product program.
2. In sale service:
We provide free guidance of installation and debugging and free training of operation, care and maintenance.
3. After-sale service:
One year warranty service of whole machine and lifetime maintenance; regularly markets visits and free guidance of whole machine's
maintenance and reparations.
4. Quick responses:
we have a complete service network, and assist you to solve the problem in a short time.
5. Parts supply:
we have a complete parts supply network and can guarantee sufficient parts reserves and timely supply
Free comprehensive and detailed technology consultancy in construction sites, referential programs for construction equipment and
the most suitable product program.
2. In sale service:
We provide free guidance of installation and debugging and free training of operation, care and maintenance.
3. After-sale service:
One year warranty service of whole machine and lifetime maintenance; regularly markets visits and free guidance of whole machine's
maintenance and reparations.
4. Quick responses:
we have a complete service network, and assist you to solve the problem in a short time.
5. Parts supply:
we have a complete parts supply network and can guarantee sufficient parts reserves and timely supply
FAQ:
1. Delivery time
Within 7- 15 working days after we receive the order
2. Payment terms
T/T, Western Union,paypal, other kinds, pls contact with us.
3. MOQ
Generally speaking, the MOQ is 1 set, Different products have different MOQ, pls contact with us.
4. Custom-made
Our lifts can be custom-made.We can receive special order.
Within 7- 15 working days after we receive the order
2. Payment terms
T/T, Western Union,paypal, other kinds, pls contact with us.
3. MOQ
Generally speaking, the MOQ is 1 set, Different products have different MOQ, pls contact with us.
4. Custom-made
Our lifts can be custom-made.We can receive special order.
