Quick Details
-
Dimension(L*W*H):
-
380*170*235CM
-
Weight:
-
4200 KG
-
Mobility:
-
move
-
Product name:
-
Drilling Machine
-
Name:
-
Borehole Dth Drilling Rig
-
Feature:
-
High Drilling Efficiency
-
Keyword:
-
Drilliing Rig
-
Drilling method:
-
Pneumatic Hammer Drilling
-
Function:
-
Borehole Drilling Rig DTH Borehole Drill Rig
-
Application:
-
Geological Exploration
-
Max Drilling Depth:
-
600 Meter
-
Color:
-
Yellow
-
Advantage:
-
High Performance
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
MACMAX
-
Voltage:
-
220V
-
Dimension(L*W*H):
-
380*170*235CM
-
Weight:
-
4200 KG
-
Mobility:
-
move
-
Product name:
-
Drilling Machine
-
Name:
-
Borehole Dth Drilling Rig
-
Feature:
-
High Drilling Efficiency
-
Keyword:
-
Drilliing Rig
-
Drilling method:
-
Pneumatic Hammer Drilling
-
Function:
-
Borehole Drilling Rig DTH Borehole Drill Rig
-
Application:
-
Geological Exploration
-
Max Drilling Depth:
-
600 Meter
-
Color:
-
Yellow
-
Advantage:
-
High Performance
![](https://cdn.bestsuppliers.com/seo_products_img/macmax/1401b50bab52308d868bd4459da4170d.jpg!/rotate/180)

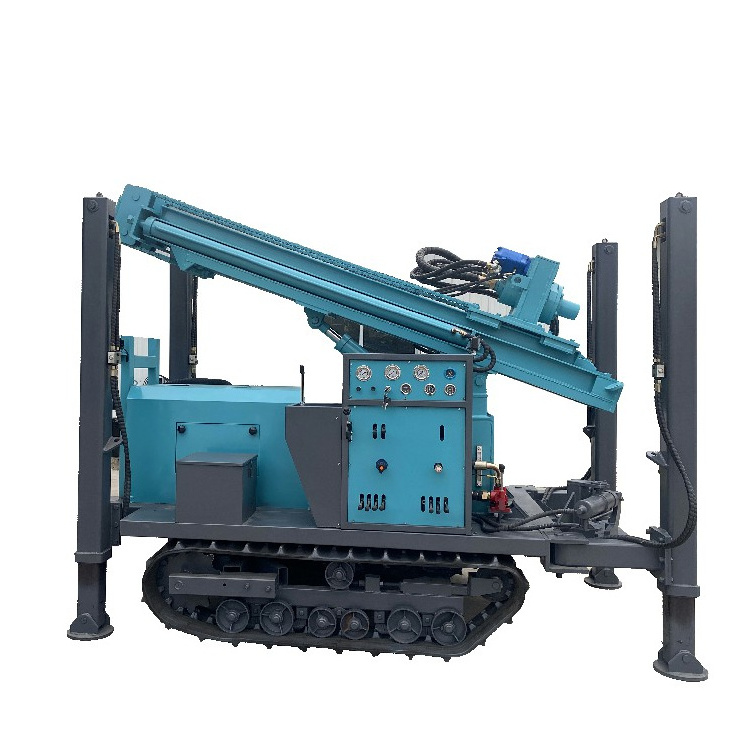

The macmax pneumatic drilling rig is suitable for taking water from rocks and soil layers, and various complex road and ground conditions. Pneumatic water well drilling rigs need to be used in conjunction with air compressors, and mud pumps can be added. Supporting use of different drilling tools such as: drill pipe, drill bit, rock drilling hammer, etc.
PRODUCT CONFIGURATION
![](https://cdn.bestsuppliers.com/seo_products_img/macmax/86127f626f0f33088471dbbac003f9c1.jpg!/rotate/180)
Drill rod
![](https://cdn.bestsuppliers.com/seo_products_img/macmax/51b9885ecfeb30a6b54370a849f0bdc9.jpg!/rotate/180)
Overall host
![](https://cdn.bestsuppliers.com/seo_products_img/macmax/978c928bcd593e30b61887363808c068.jpg!/rotate/180)
Rubber or steel track tracks
High Power Air Compressor
High quality DTH hammer
Drill bit for rock
Product Overview
HZ series water well drilling rig
HZ series water well drilling rig is a light, high-efficiency and multi-functional drilling equipment. It is mainly suitable for industrial and civil drilling, and geothermal drilling. It has the advantages of compact structure, fast footage, flexible movement and wide application, especially for mountainous areas. Water intake from rock formations, drilling, exploration, oil drilling and other scenarios.
We can provide you with a variety of options to use a variety of different environmental needs! We sincerely invite you to participate in the discussion, and our technical staff will discuss the issue with you.
FEATURES AT A GLANCE
Applicable to layers containing rocks, using pneumatic drills, the power is stronger!
NO.1
Integrated console
The console and instrument are integrated for easy operation.
NO.2
Additional hydraulic outriggers for more stable operation.
NO.3
Track design, suitable for various complex road conditions.
PRODUCT SPECIFICATIONS
Model
|
HZ180
|
HZ220
|
HZ260
|
HZ320
|
HZ450
|
Overall weight (T )
|
3.5
|
4.2
|
6.4
|
9
|
10
|
Dimension (mm )
|
3400*1500*2400
|
3800*1700*2350
|
4100*1900*2600
|
4200*1900*2600
|
5300*2050*2700
|
Drilling diameter (mm )
|
130-245
|
130-294
|
140-300
|
140-350
|
130-400
|
Drilling depth (m)
|
180
|
200
|
260
|
300
|
400
|
One-time advance length of the
drill(mm)
|
3000
|
3000
|
3000
|
3000/6000
|
3000/6000
|
Traveling speed (km/h )
|
2.5
|
2.5
|
2.5
|
2.5
|
6
|
Climbing ability (max )
|
25°
|
30°
|
30°
|
30°
|
30°
|
Minimum Ground Clearance (mm)
|
250
|
250
|
250
|
230
|
300
|
Working Air Pressure (mpa )
|
1.45 - 2.5
|
1.7-2.5
|
1.7-3.0
|
1.7-3.3
|
1.7-3.5
|
Air consumption(m³/min)
|
15 - 27
|
15-27
|
17-35
|
23
|
17-35
|
Main machine power (kw)
|
42Kw
|
60Kw
|
73Kw
|
85kw
|
100/6 cylinder
|
Rotary Speed (rpm)
|
38 - 80
|
48 - 70
|
40-70
|
55-115
|
45-75
|
Rotary torque (Nm)
|
4000-5000
|
4200-5600
|
7000-9000
|
8500-10000
|
9000-10000
|
SIMILAR PRODUCTS
Certifications
Company information
Macmax Machinery Co., LTD. was founded in 2000, our company was changed from the original Shandong Machinery Factory to the China
Macmax Machinery Co., LTD. The company has cultivated the machinery industry for more than 20 years. And have been awarded the
title of National High-tech Enterprise. There are 10 technical R & D personnel, 150 producers, and 30 sales. Our factory covers an
area of 12,000 square meters, produces 10,000 square meters of assembly workshops, 2,000 square meters of office buildings, and
has different branch plants in China.
Our company has independent research and development products including drilling rig (pneumatic rig, hydraulic rig, exploration
rig) for exploration, wells, oil etc., which can reach 2000 meters in depth; Excavator accessories (Auger, Pile driver, crushing
bucket, screening bucket etc.) Meet the needs of various working conditions of different types of excavators in small, medium and
large models, and custom products can be customized according to customer requirements. The product has obtained a number of
domestic and foreign certifications, and has been designated by many countries in the country to participate in the formulation of
industry standards, and has reached strategic cooperation with many well -known enterprises at home and abroad. Products are
exported to Europe (Italy, Sweden, Germany, Russia), Southeast Asia (Indonesia, Malaysia, Thailand, Vietnam), Asia (Kazakhstan,
Uzbekistan, South Korea, Sri Lanka), South America (Peru, Chile) and Africa.
Now you have chosen MACMAX, and you will measure the advantages and disadvantages of the product with MACMAX as the standard in
the future.
Macmax Machinery Co., LTD. The company has cultivated the machinery industry for more than 20 years. And have been awarded the
title of National High-tech Enterprise. There are 10 technical R & D personnel, 150 producers, and 30 sales. Our factory covers an
area of 12,000 square meters, produces 10,000 square meters of assembly workshops, 2,000 square meters of office buildings, and
has different branch plants in China.
Our company has independent research and development products including drilling rig (pneumatic rig, hydraulic rig, exploration
rig) for exploration, wells, oil etc., which can reach 2000 meters in depth; Excavator accessories (Auger, Pile driver, crushing
bucket, screening bucket etc.) Meet the needs of various working conditions of different types of excavators in small, medium and
large models, and custom products can be customized according to customer requirements. The product has obtained a number of
domestic and foreign certifications, and has been designated by many countries in the country to participate in the formulation of
industry standards, and has reached strategic cooperation with many well -known enterprises at home and abroad. Products are
exported to Europe (Italy, Sweden, Germany, Russia), Southeast Asia (Indonesia, Malaysia, Thailand, Vietnam), Asia (Kazakhstan,
Uzbekistan, South Korea, Sri Lanka), South America (Peru, Chile) and Africa.
Now you have chosen MACMAX, and you will measure the advantages and disadvantages of the product with MACMAX as the standard in
the future.
Factory
Looking forward to your choice
Product workshop
Production base
FAQ
Q1.What if I don't know how to choose a suitable drilling rig model and supporting equipment?
Ans.: You can ask our staff, professional staff will help you solve the problem.
Q2. What is your terms of payment?
Ans.: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q3. What is your terms of delivery?
Ans.: EXW, FOB, CFR, CIF.
Q4. How about your delivery time?
Ans.: Generally, it will take 7 -10 working days after receiving your advance payment(Except custom products).
The specific delivery time depends on the items and the quantity of your order.
Q5.Do you Preferred provide wear parts for transacted clients?
Ans.: Yes, we have recor d s for your clients, and will prefer provid ing accessories to clients.
Q6. What is your terms of packing?
Ans.: Generally, we use standard exported wooden case for LCL goods, and fixed well for FCL goods.
Q7. Do you test all your goods before delivery?
Ans.: Yes, we have 100% test before delivery.And we will attach our inspect report for every machine.
Q8.What is the warranty of our machine?
Ans.:Our main machine enjoys a 1 year warranty(except drill), during this time all accessories
broken can be changed for a new one.And we provide videos for machine install and operation.
