Quick Details
-
Spindle Taper:
-
ISO50 7:24
-
Range of Spindle Speed(r.p.m):
-
48 - 1660 r.p.m
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
SDCNC
-
Model Number:
-
X6232
-
Year:
-
2024
-
Spindle Motor Power(kW):
-
3
-
Dimension(L*W*H):
-
1700*1560*1750
-
Weight (KG):
-
1700
-
Marketing Type:
-
New Product 2024
-
Product name:
-

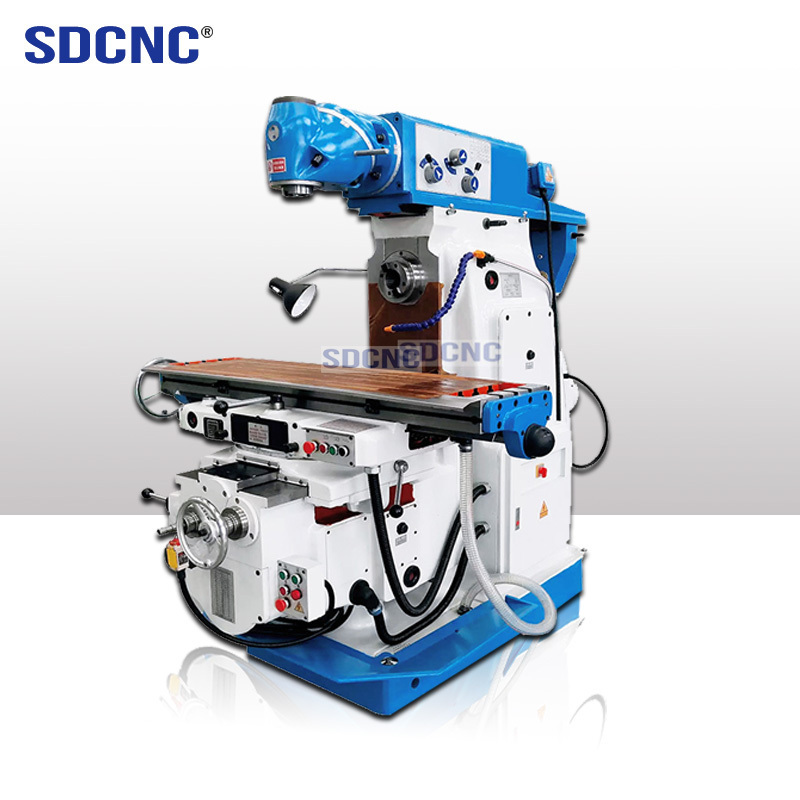

Universal milling machine X6232 automatic power supply milling machine
-
Machine Type:
-
Vertical Drilling Milling
-
Keyword:
-
Milling Machine Manual
-
Model:
-
X6132
-
Color:
-
Cusomer Request
Quick Details
-
Table Travel (X) (mm):
-
800
-
Table Travel (Y) (mm):
-
320
-
Table Travel (Z) (mm):
-
400
-
Spindle Taper:
-
ISO50 7:24
-
Range of Spindle Speed(r.p.m):
-
48 - 1660 r.p.m
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
SDCNC
-
Model Number:
-
X6232
-
Year:
-
2024
-
Spindle Motor Power(kW):
-
3
-
Dimension(L*W*H):
-
1700*1560*1750
-
Weight (KG):
-
1700
-
Marketing Type:
-
New Product 2024
-
Product name:
-
Universal milling machine X6232 automatic power supply milling machine
-
Machine Type:
-
Vertical Drilling Milling
-
Keyword:
-
Milling Machine Manual
-
Model:
-
X6132
-
Color:
-
Cusomer Request
Products Description
Product Paramenters
|
Specifications
|
Units
|
X6232
|
|
Table size
|
mm
|
1370x320
|
|
Table travel
|
mm
|
800/320/400
|
|
T-slot numbers / width /space
|
mm
|
3-16-60
|
|
Spindle taper
|
|
ISO40
|
|
Spindle speed range
|
rpm
|
48-1660rpm
|
|
Distance between spindle nose and table surface
|
mm
|
120-520
|
|
Distance between spindle axis and table surface
|
mm
|
0-400
|
|
Range of table feed
|
mm /min
|
XY:22-555
Z:electric |
|
Milling head swivel range
|
°
|
360
|
|
Spindle motor power
|
kw
|
3
|
|
Feed motor power
|
kw
|
1.1
|
|
Weight
|
kg
|
1700
|
|
Overall dimension
|
mm
|
1700x1560x1750
|
