Quick Details
-
Brand Name:
-
ZINGEAR
-
Model Number:
-
G905-200E06W1
-
Max. Current:
-
5(A)
-
Operating Temperature:
-
-25℃~125℃
-
Protection Level:
-
IP67
-
Rating:
-
0.1/5/6A 125/250VAC
-
Mechanica:
-
120 cycles
-
Electrical:
-
10~30 cycles
-
Application:
-
Home Appliances, Industrial Control
-
Product Name:
-
IP67 Changeover Microswitch
-
Insulation Resistance:
-
100M Min
-
Contact Resistance:
-
100m Max
-
Storage Humidity:
-
85%RH Max
-
Dielectric Strength:
-
AC 1000V RMS(50-60Hz)
-
Certification:
-
ULCUL, ENEC, CQC
Quick Details
-
Whether the smart:
-
NO
-
Max. Voltage:
-
250(V)
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
ZINGEAR
-
Model Number:
-
G905-200E06W1
-
Max. Current:
-
5(A)
-
Operating Temperature:
-
-25℃~125℃
-
Protection Level:
-
IP67
-
Rating:
-
0.1/5/6A 125/250VAC
-
Mechanica:
-
120 cycles
-
Electrical:
-
10~30 cycles
-
Application:
-
Home Appliances, Industrial Control
-
Product Name:
-
IP67 Changeover Microswitch
-
Insulation Resistance:
-
100M Min
-
Contact Resistance:
-
100m Max
-
Storage Humidity:
-
85%RH Max
-
Dielectric Strength:
-
AC 1000V RMS(50-60Hz)
-
Certification:
-
ULCUL, ENEC, CQC
1.
Compared with Omron,
Honeywell, Cherry and MARQUARDT switch, we accept small quantity and custom product service with a short delivery time.
2.
Compared with small unknown brand switch, Zing Ear switch has been established since 1983 with UL, CUL, ENEC, CQC, CB, etc. certificates.
3.
Free sample provided to you before place order.
4.
Project sample test service in our
laboratory, tell us your rating requirement, we will help you to test switch in your requirement. Saving your time.
5.
One-stop service, other product you may need, we can help you to buy it. Saving your time and money.
Products Description
Features
- Ip67 Dust and Water Proof
- Small Compact Size
- Small Compact Size
- Long Life, High Reliability
- Vareity of Terminals and Levers
- Widely used in Auto Control, Appliance and 0ther Industry Control
|
Rating - P1
|
01A 125/250VAC 48VDC Gold Plated Contact Optiona
|
|
|
|
|||
|
Rating - 05
|
UL: 5A 125/250VAC ENEC: 6A 125/250VAC 1E4;3A 125/250VAC 30VDC 5E4 ц 25T120
|
|
|
|
|||
|
Operating Frequency - Electrical1
|
10~30 cycles/minute
|
|
|
|
|||
|
Operating Frequency - Mechanical
|
120 cycles/minute
|
|
|
|
|||
|
Contact Resistance (Intiative)
|
100M Ω Max (It depends on the wire length for the type with wire
|
|
|
|
|||
|
Insulation Resistance (at 500VDC)
|
100M Ω Min
|
|
|
|
|||
|
Dielectric Strength
|
AC 1,000V RMS (50-60Hz)
|
|
|
|
|||
|
Storage Temperature
|
-25°C ~ +120°C
|
|
|
|
|||
|
Storage Humidity
|
85% RH Max
|
|
|
|
|||
|
Service Life - Blectrical
|
10,000~ 100, 000次/cycles(Depend on part N0.)
|
|
|
|
|||
|
Service Life - Mechanical
|
500,000 cycles
|
|
|
|
|||
G905-200E06W1 Drawing

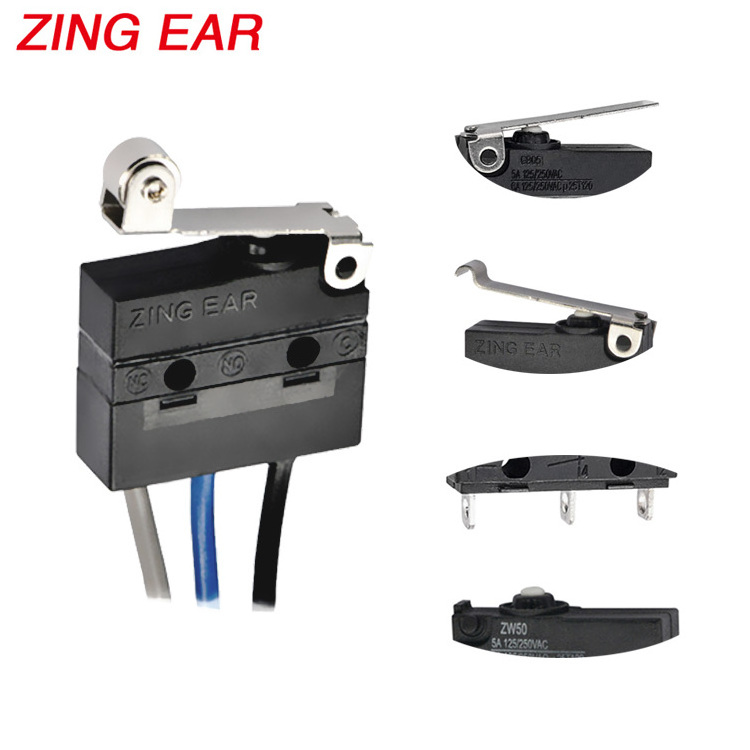

Our G9 Series Micro Switch
Because too many items to show you, pls contact us, and I will send product pictures
