Quick Details
-
Model Number:
-
Mo1
-
Product name:
-
MoLa sheet, MoLa plate used in vacuum equipment
-
Density:
-
10.2g/cm3
-
Surface:
-
bright, sandblast, alkaline wash, black
-
thickness:
-
0.08-30mm
-
width:
-
10-800mm
-
Length:
-
3000mm max
-
application:
-
Electronics, vacuum plating, medical devices, semiconductor
Quick Details
-
Dimensions:
-
Customers Requirements
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Shibo
-
Model Number:
-
Mo1
-
Product name:
-
MoLa sheet, MoLa plate used in vacuum equipment
-
Density:
-
10.2g/cm3
-
Surface:
-
bright, sandblast, alkaline wash, black
-
thickness:
-
0.08-30mm
-
width:
-
10-800mm
-
Length:
-
3000mm max
-
application:
-
Electronics, vacuum plating, medical devices, semiconductor

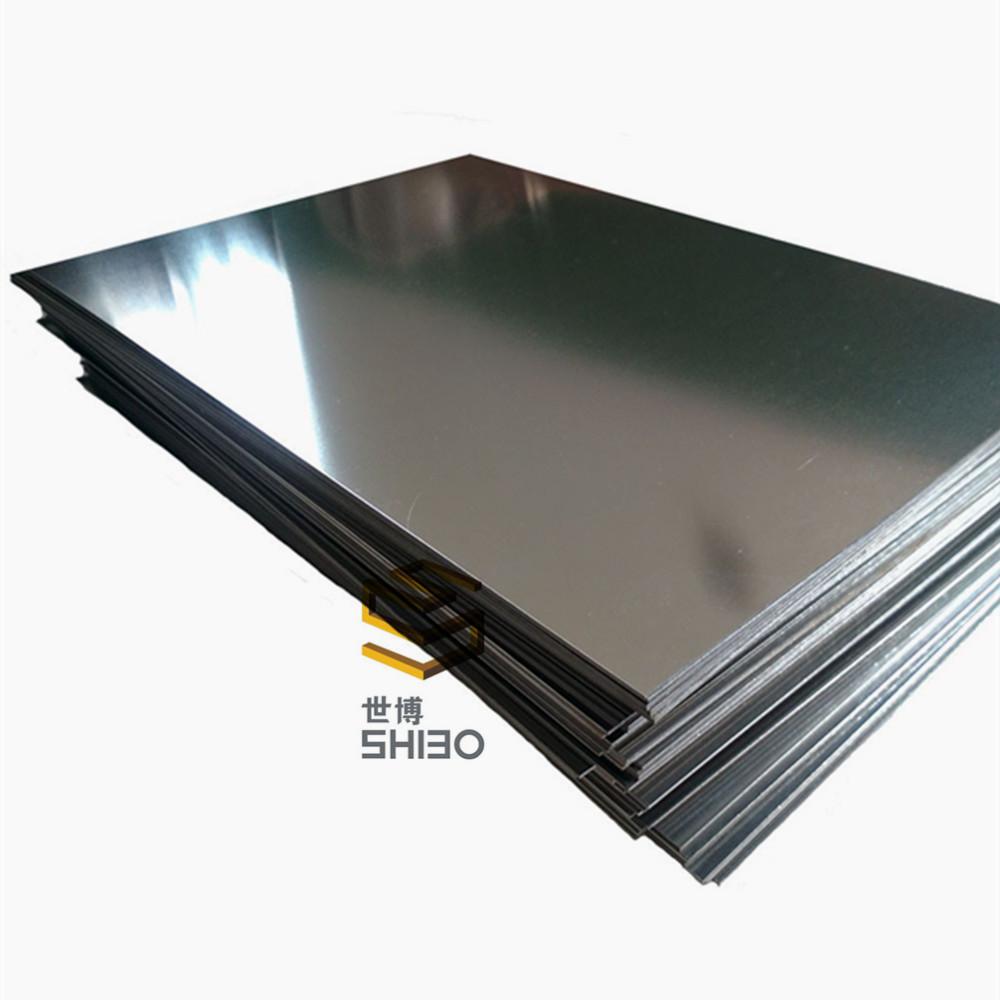

Molybdenum lanthanum alloy plate is alloy plate of molybdenum and lanthanum. La2O3 is contained in molybdenum lanthanum plate to prevent wrong movement of molybdenum grain and re-crystallization of slow rhythm under high temperature. The density of molybdenum lanthanum plate is over 10.1g/cm3.
The average nominal chemical composition in weight:
La: 0.5-0.7%
Mo: the balance
Compared with pure Mo,
MLR
has the following advantages:
1)
better creep resistance
2)
higher recrystallization temperature
3)
better high-temperature strength
4)
better welding properities
5)
higher tensile strength
Specification:
|
Molybdenum sheets/plates |
||||||
|
Thickness(mm) |
tolerances(mm) |
width(mm) |
tolerances(mm) |
length(mm) |
tolerances(mm) |
flatness(%) |
|
0.3mm |
±0.02 |
600mm |
±1mm |
2000mm |
±5mm |
< 2% |
|
0.4mm |
±0.03 |
600mm |
±1mm |
2000mm |
±5mm |
< 2% |
|
0.5mm |
±0.03 |
600mm |
±1mm |
2000mm |
±5mm |
< 2% |
|
0.8mm |
±0.05 |
600mm |
±1mm |
2000mm |
±5mm |
< 2% |
|
1mm |
±0.06 |
600mm |
±1mm |
2000mm |
±5mm |
< 2% |
|
1.5mm |
±0.06 |
600mm |
±1mm |
2000mm |
±5mm |
< 2% |
|
2mm |
±0.06 |
600mm |
±1mm |
2000mm |
±5mm |
< 2% |
|
3mm |
±0.2 |
500 |
±1mm |
500 |
±2mm |
< 2% |
|
4mm |
±0.2 |
500 |
±1mm |
500 |
±2mm |
< 2% |
Use area:
1)
S
intering and heat treatment furnaces.
2) Boats for annealing and sintering process
3) Used in high-temperature furnace construction and metal working.
Standard and safe Packing
1) paper wrapped the sheets, then plastic paper protected from moisture
2) Foam board around the the inner wooden case
3) Standard exported plywood case outside
Shipment Methods : Sea or Air transportation, train or express
Payment Methods:
1) L/C ; 2) T/T ; 3) Paypal ; 4) Money Gram ; 5) Western Union
TZM ranges of products:
TZM rods, TZM sheets, TZM tubes, TZM boats and some machined hardwares.
