Quick Details
-
Power:
-
customization
-
Dimension(L*W*H):
-
35 Cubic Meter
-
Weight:
-
800 KG
-
Name:
-
HG-FJ-500L
-
Material:
-
Stainless Steel 304
-
Thickness:
-
Inner 3mm External 2,5mm
-
Heating Method:
-
Steam,Electric,Direct Fire
-
Cooling way:
-
Dimple jacket plate
-
Cleaning way:
-
CIP in situ cleaning, with rotary spray cleaning ball
-
Insulation:
-
Polyurethane-thickness: 80mm
-
Test pressure:
-
0.2Mpa
-
Working pressure:
-
0.09Mpa
-
Heat exchange area:
-
1.8m2
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
HG
-
Voltage:
-
220/380V or customization
-
Power:
-
customization
-
Dimension(L*W*H):
-
35 Cubic Meter
-
Weight:
-
800 KG
-
Name:
-
HG-FJ-500L
-
Material:
-
Stainless Steel 304
-
Thickness:
-
Inner 3mm External 2,5mm
-
Heating Method:
-
Steam,Electric,Direct Fire
-
Cooling way:
-
Dimple jacket plate
-
Cleaning way:
-
CIP in situ cleaning, with rotary spray cleaning ball
-
Insulation:
-
Polyurethane-thickness: 80mm
-
Test pressure:
-
0.2Mpa
-
Working pressure:
-
0.09Mpa
-
Heat exchange area:
-
1.8m2

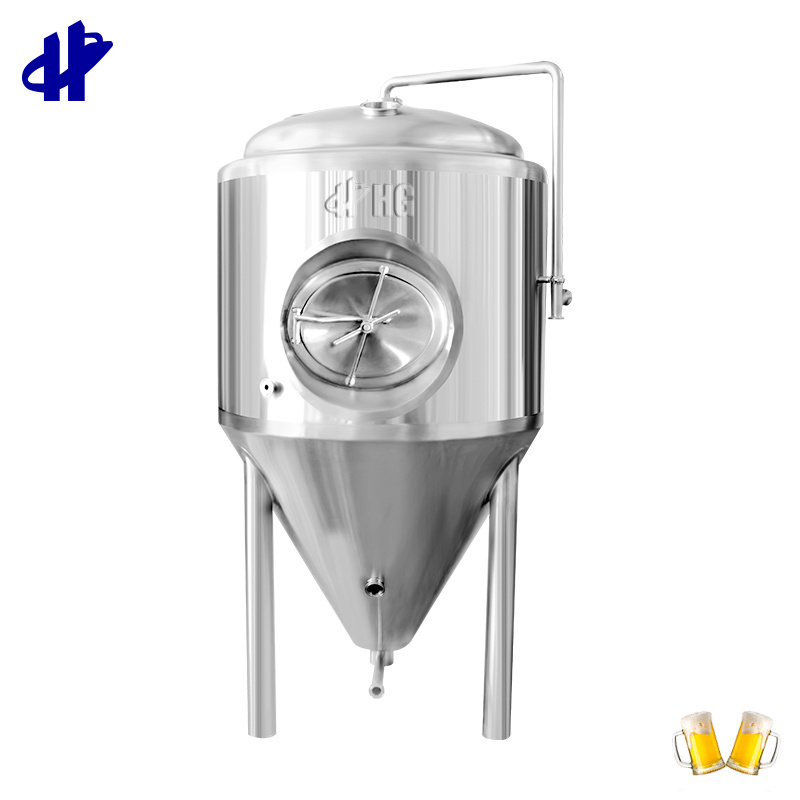

60L,500L,1000L fermenter 60L,500L,1000L homebrew conical equipment custom made beer
|
No.
|
Item
|
Specification
|
|
|
|
|||
|
01
|
Gross capaity
|
625L
|
|
|
|
|||
|
02
|
Useful capacity
|
500L
|
|
|
|
|||
|
03
|
Thickness
|
Inner (SUS304)thickness: 3.0mm;
External-Jacket(SUS304) thickness: 2.0mm |
|
|
|
|||
|
04
|
Material
|
Stainless steel 304
|
|
|
|
|||
|
05
|
Cooling way
|
Dimple jacket plate
|
|
|
|
|||
|
06
|
Cleaning way
|
CIP in situ cleaning, with rotary spray cleaning ball
|
|
|
|
|||
|
07
|
Insulation
|
Polyurethane-thickness: 80mm
|
|
|
|
|||
|
08
|
Accessories
|
Sample valve, Pressure gauge, Breath valve, Temperature gauge,
Top manhole, Washing ball, Butterfly valves, CIP Arm, Hop port, Discharge arm and so on. |
|
|
|
|||
Fermenter advantage :
1. 304 stainless steel plate as a whole, and our stainless steel plate manufacturer is the best in China
2. The cooling efficiency of Maitreya plate jacket is greatly improved.
3. Two stage cooling mode
4. The insulation layer material is high-grade polyurethane with a thickness of 80mm
5. Polishing accuracy up to Ra0.4μ m
6. Strict tank pressure test
7. Energy conservation and pollution emissions
The fermentation tanks use certified stainless steel material. All tanks and jackets inspected and pressure tested to 3 times operatiing pressure. The dimension of the tanks can be designed according to customer’s requirement. Tank design pressure is 0.4Mpa and testing pressure is 0.3Mpa.
|
Item
|
Production capacity
|
Volume in US Gallon
|
Heating area
|
Tank diameter
|
Height
|
|
HG-100
|
100L/day
|
26US Gallon
|
0.5㎡
|
650mm
|
1500mm
|
|
HG-200
|
200L/day
|
53US Gallon
|
0.8㎡
|
850mm
|
1600mm
|
|
HG-300
|
300L/day
|
79US Gallon
|
1.2㎡
|
960mm
|
1700mm
|
|
HG-500
|
500L/day
|
132US Gallon
|
1.8㎡
|
1160mm
|
2300mm
|
|
HG-1000
|
1000L/day
|
264US Gallon
|
2.6㎡
|
1360mm
|
2500mm
|
|
HG-2000
|
2000L/day
|
528US Gallon
|
3.6㎡
|
1560mm
|
2850mm
|
|
HG-3000
|
3000L/day
|
792US Gallon
|
4.5㎡
|
1760mm
|
3800mm
|
|
HG-5000
|
5000L/day
|
1320US Gallon
|
7.2㎡
|
1960mm
|
4400mm
|
1.How to achieve temperature control?
The PLC or digital dispalyer could control the temperature by connecting with the PT 100 sensor.The brewing tanks with rock wool to keep warm,the fermenters and bright beer tank with PU as cooling jacket to keep cool.
2.Which countries your products are exported to?
Our stainless steel microbrewery equipment are sold all over the world and with related certifications.
3.How to use your machine?
We have paper instructions in English, and we will teach till you do it well.
4.How long is your delivery time?
Usually it takes about 50 working days to manufacture a brewery.Depending on the size of the brewery,the amount of custom designed equipment,our general workload and the way of shipping this period can be shorter or longer.
5.Do you provide after-sales service?
Yes,we could provide after-sales service.We have many professional engineers, they can go to your place and teach your person installation and brewing
1. Container loading(20GP/40GP/40HQ)
2. Packed with plastic film and iron frame for main tank.Fittings use iron cabinet.
3. Customer's requirements available.
