Quick Details
-
Return Force (kN):
-
200 kN
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Harsle
-
Year:
-
2022
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
customized
-
Weight (T):
-
4 T
-
Model Number:
-
Y32
-
Motor Power (kw):
-
7.5 kw
-
Certification:
-
CE
Quick Details
-
Machine Type:
-
Four-column Three-beam Hydraulic Press
-
Slide Stroke (mm):
-
150
-
Ejector Force (kN):
-
200
-
Return Force (kN):
-
200 kN
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Harsle
-
Year:
-
2022
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
customized
-
Weight (T):
-
4 T
-
Model Number:
-
Y32
-
Motor Power (kw):
-
7.5 kw
-
Certification:
-
CE
Products Description

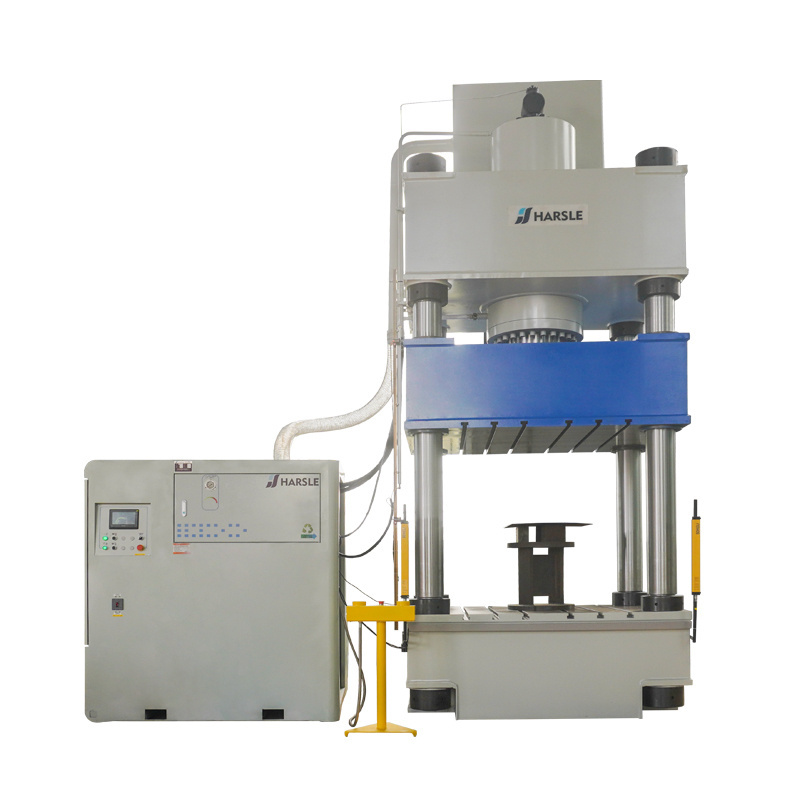

HARSLE Y32 Four-Column Hydraulic Press Machine
Y32 four-column hydraulic press machine adopts three beams and four columns structure, the hydraulic system adopts cartridge valve oil circuit, the electrical system adopts relay or PLC control circuit, with adjustment and semi-automatic operation mode, the whole machine structure is simple, compact, economic and reasonable, reliable action, long service life, small hydraulic impact, reduce the connection pipeline and leakage. Its working pressure, pressing speed and stroke range can be adjusted within the specified range according to the process needs, and two types of process can be realized: constant pressure and constant range. In the case of fixed-pressure forming, there is a pressure-holding delay and an automatic return stroke after pressing. The table is equipped with an ejector device in the middle, which can be used as a hydraulic pad for the forming process of drawn parts in addition to ejecting the products.
Product Details
Cylinaer
Polished and chromed with high rigidity treatment.
Main Motor
Siemens brand from Germany.
Pressure Gauge
Detect main cylinder and ejection cylinder pressure, adjust system hydraulic pressure.
Hydraulic Valve
Cartridge valve integral unit equipped for hydraulic control system, reliable, durable and less hydraulic shock, with shorter connection pipeline and fewer releases points.
Ejection Cylinder
Eject the material from the press forming mold.
Ejection Cylinder
Eject the material from the press forming mold.
Hydraulic Oil Tank
Clean the oil tank regularly easily thanks to the dismountable design.
Electric Parts
Schneider brand from France.
Optional Configuration
Light Curtain
PLC
Shuttle Table
Water Cooler
IOT MODULE
CHECKING THE MACHINE REAL-TIME STATUS ON THE PHONE, COMPUTER OR TABLET
Specifications
|
Model
|
|
63T
|
100T
|
160T
|
200T
|
250T
|
315T
|
400T
|
500T
|
|
|
Nominal Force
|
KN
|
630
|
1000
|
1600
|
2000
|
2500
|
3150
|
4000
|
5000
|
|
Certifications
Manufacturing Technique
Cutting
Lathe
Milling
Drilling
Welding
Boring
Package & Shipping
Testimonial
Dominica
Belarus
South Korea
Thailand
USA
Malaysia
FAQ
What will be the payment method for the transaction?
We can accept T/T, Irrevocable Letter of credit(LC), Cash, Bank guarantee, Western Union and etc.
How is about the quality of HARSLE machines
We hare world-class R&D team to support the quality of our machines, our products have got CE, ISO and SGS certification to prove the advantages of HARSLE machines.
How can I visit HARSLE factory in China?
-Take high speed train from other city to Nanjing south railway station, HARSLE factory is around 40KM far from this station.
-Take plane to Nanjing Lukou international airport, HARSLE factory is around 20KM far from this airport.
-Take plane to Nanjing Lukou international airport, HARSLE factory is around 20KM far from this airport.
How can I get after-sales service from HARSLE?
You can contact HARSLE via phone or Email, HARSLE will certainly give you reply in 24 hours. You can show your questions or problems in the form of video or picture that would be better for both of us to solve your problems promptly. Customers can also contact our local agent directly, they will give you reply ASAP.
What is the warranty about HARSLE machine?
We will provide 3 years warranty for HARSLE machines, during the warranty period, customers can get thorough and timely service and HARSLE will send the spare parts for replacement of any broken parts on the machine for free.
