50m3/h mini mobile concrete Mixing plant fully automatic ready mix concrete batching plant with cement silo

50m3/h mini mobile concrete Mixing plant fully automatic ready mix concrete batching plant with cement silo

FOB Reference Price: Get Latest Price

≥1 Sets

US $4600

≥10 Sets

US $4500

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Brand Name:: ZOOMJO

Power:: 50-340kw

Dimension(L*W*H):: According to the Models

Weight:: 37000 kg

Product Name:: Mini Concrete Batching Plant

Color:: Customers' Requirements

Application:: Concrete Mixing and Conveying

After Sale Service:: Engineer Overseas Service

Price:: Competetive (Can Negotiate)

Factory:: 50,000 Square Meters Closed Workshops

Installation and Trial:: We Can Send Engineer for Guidance

Capacity:: 25-240M³/H

Certification:: ISO9001 CE, ISO9001:14000

Advantage:: Timely Delivery and Installation, Fast Technical Support

Quick Details

Machine Type:: Belt conveyor

Marketing Type:: Hot Product 2023

Place of Origin:: Henan, China

Brand Name:: ZOOMJO

Power:: 50-340kw

Dimension(L*W*H):: According to the Models

Weight:: 37000 kg

Product Name:: Mini Concrete Batching Plant

Color:: Customers' Requirements

Application:: Concrete Mixing and Conveying

After Sale Service:: Engineer Overseas Service

Price:: Competetive (Can Negotiate)

Factory:: 50,000 Square Meters Closed Workshops

Installation and Trial:: We Can Send Engineer for Guidance

Capacity:: 25-240M³/H

Certification:: ISO9001 CE, ISO9001:14000

Advantage:: Timely Delivery and Installation, Fast Technical Support

Product Description

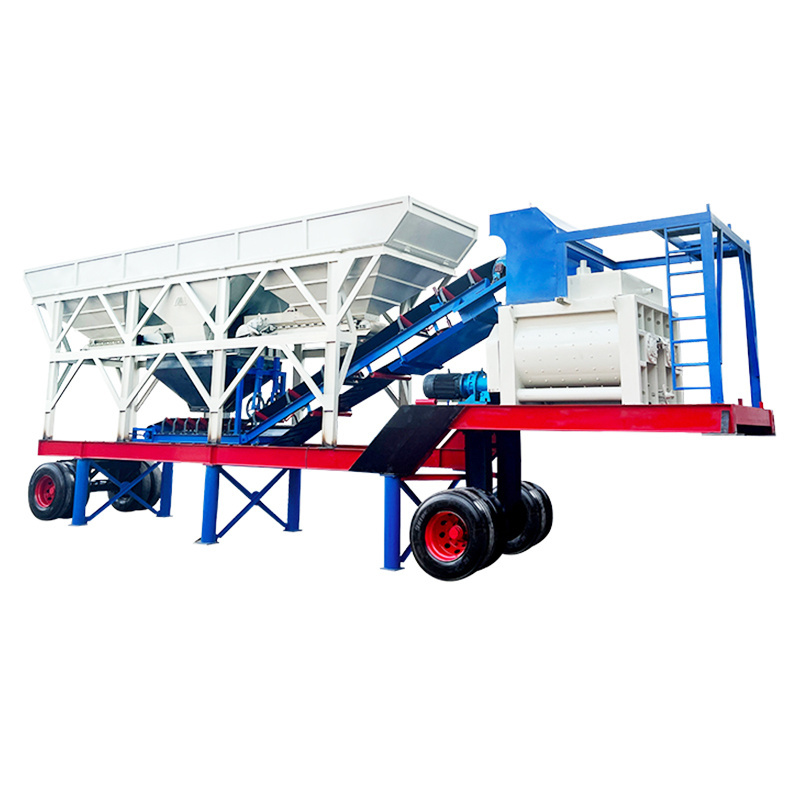

50m3/h Mini Mobile Concrete Mixing Plant Fully Automatic Ready Mix Concrete Batching Plant with Cement Silo

Concrete Batching Plant is a fully automatic concrete mixing equipment consisting of 5 major systems such as mixer, material weighing system, material conveying system, material storage system and control system and other ancillary facilities.

A complete set of equipment for supplying concrete in a concentrated manner than by a mixer.

Zoomjo company is a professional s upplier of C oncrete Mixing Plant in china , t he main output types of the batching plant are 25m3/h, 35m3/h, 50 m3/h , 60m3/h, 75m3/h, 90 m3/h, 120 m3/h, 240 m3/h etc.

Mobile C oncrete Mixing Plant is a portable, efficient and reliable concrete production plant. It is a mixing plant that concentrates the storage, weighing, conveying, mixing, discharging and fully automatic control system of raw materials on a mobile frame.

Widely used for projects requiring frequent transfers, short construction periods and small concrete requirements. Zoomjo supply mobile batching plant with capacities ranging from 25 m3/h to 120m3/h .

Get 2023 Automatic Ready Mix Concrete Batching Plant Factory Price List Online

Just leave us your whatsapp or email, we send the latest price list to you.
Whenever, 7X24 hours online service is waiting for you.
Hot-sale in many countries: Zimbabwe, Mozambique, Zambia, South Africa, Kenya, Philippines, Indonesia, Vietnam, Uganda, Ethiopia,Tanzania, Peru, Mexico, Kazakhstan, Kyrgyzstan, Russia.

Working Flow

Zoomjo Concrete Batching Plant are built with high-quality materials and engineered to guarantee component life. The plants are designed for high productivity and are available in stationary, foundation free type and mobile type.

Other options include precast component and high performance plants. All plant types also integrate modular designs that provide flexibility so you can customize your plant to fit your needs – now or in the future.

Mobile Concrete Mixing Plant Features :

1. Easy installation and commissioning. The mobile mixing plant is delivered as a fully pre-connected complete set of equipment, which reduces the time required for installation and commissioning of the plant.
2. Large capacity & uniform mixing. The JS double horizontal shaft forced mixer with continuous running capability, comprehensive mixing track, powerful mixing movement and fast and uniform mixing.
3. Easy moving, flexible disassembly and assembly. The mobile mixing plant occupies a small area, easy to move around, and can be transported and dismantled as a whole with external equipment.
4. Save on concrete transport costs. The mobile concrete mixing plant produces concrete at the construction site, and the pumping equipment can transport the produced concrete directly to the pouring site.

Stationary Concrete Batching Plant Features :

1. Lower aggregate capacity for lower energy consumption.
2. Modular design make the operation convenient and fast.
3. Excellent environmental protection, dust collection system and anti-noise design.
4. Accurate weighing system (aggregate, cement, water, additive).

Product Paramenters

Model	ZJY25	ZJY35	ZJY50	ZJY60	ZJY75	ZJY90	ZJY120
Mixer	JS 500	JS 750	JS 1000	JS 1000	JS 1500	JS 1500	JS 2000
Mixer Capacity	0.5m³	0.75m³	1m³	1m³	1.5m³	1.5m³	2m³
Output	25m³/h	35m³/h	50m³/h	60m³/h	75m³/h	90m³/h	120m³/h
Aggregate bins Capacity	2*6m³	2*8m³	2*8m³	2*10m³	2*10m³	2*12m³	2*12m³
Discharging Height	3.8m	3.8m	3.8m	3.8m	3.8m	3.8m	3.8m
Aggregate Weighing Accuracy	±2%	±2%	±2%	±2%	±2%	±2%	±2%
Cement Weighing Accuracy	±1%	±1%	±1%	±1%	±1%	±1%	±1%
Water Weighing Accuracy	±1%	±1%	±1%	±1%	±1%	±1%	±1%
Additive Weighing Accuracy	±1%	±1%	±1%	±1%	±1%	±1%	±1%
Max.Aggregate Size	80/100mm	80/100mm	80/100mm	80/100mm	80/100mm	80/100mm	80/100mm
Max hauling speed	8km/h	8km/h	8km/h	8km/h	8km/h	8km/h	8km/h
Power	≈60.8kw	≈72.3kw	≈92kw	≈92kw	≈102kw	≈120kw	≈160kw
Total weight	14.66t	22t	26t	26t	29t	33t	38t

Mobile Concrete Mixing Plant Paramenters

Model	HZS / ZJ25	HZS / ZJ35	HZS / ZJ50	HZS / ZJ60	HZS / ZJ75	HZS / ZJ90	HZS / ZJ120	HZS / ZJ180	HZS / ZJ240
Productivity	25m³/h	35m³/h	50m³/h	60m³/h	75m³/h	90m³/h	120m³/h	180m³/h	240m³/h
Concrete mixer	JS 500	JS750	JS1000	JS1000	JS1500	JS1500	JS2000	JS3000	JS4000
Mixer discharging capacity	0.5m³	0.75m³	1m³	1m³	1.5m³	1.5m³	2m³	3m³	4m³
Feeding Mode	Lift Hopper	Lift Hopper	Lift Hopper	Belt Conveyor	Lift Hopper	Belt Conveyor	Belt Conveyor	Belt Conveyor	Belt Conveyor
Aggregate batching machine	PLD800	PLD1000	PLD1600	PLD1600	PLD2400	PLD2400	PLD3200	PLD4800	PLD6400
Kinds of aggregate	2/3/4	2/3/4	3/4	3/4/5	3/4	3/4/5	3/4/5	3/4/5	3/4/5
Max aggregate size	80/100mm	80/100mm	80/100mm	80/100mm	80/100mm	80/100mm	80/100mm	80/100mm	80/100mm
Discharging height	3.8m	4.1m	4.1m	4.1m	4.1m	4.1m	4.3m	4.3m	4.3m
Aggregate weighing accuracy	±2%	±2%	±2%	±2%	±2%	±2%	±2%	±2%	±2%
Cement weighting accuracy	±1%	±1%	±1%	±1%	±1%	±1%	±1%	±1%	±1%
Water weighing accuracy	±1%	±1%	±1%	±1%	±1%	±1%	±1%	±1%	±1%
Additive weighing accuracy	±1%	±1%	±1%	±1%	±1%	±1%	±1%	±1%	±1%
weight	10t	13.5t	18.5t	28t	25t	40t	65t	88t	98t
General installed power	≈65kw	≈75kw	≈100kw	≈110kw	≈140kw	≈160kw	≈220kw	≈290kw	≈340kw

Stationary C oncrete Batching Plant Paramenters

If you need more products or information, please send an inquiry

Our Advantages

ZOOMJO Concrete Batching Plant with Cement Silo

This machine has reasonable structure, smooth running, easy control, high productivity, high automatic advantage. It suits general construction site, road, bridge, hydroelectric power projects, some small and middle concrete component factory.

Since the establishment of the company, it has developed into a large-scale enterprise integrating scientific research, production and sales. Our factory can produce c onstruction equipment with various outputs, ensuring quality, timely delivery and efficient after-sales service.

Customer Cases

Delivery Site

Comply with Export Packaging Requirements

1. Concrete mixer pump, trailer concrete pump etc small machinery in container. Spare parts in wooden or steel box. 2. Concrete batching plant, c oncrete pump truck , concrete mixer truck and concrete truck etc equipment will be shipped by RORO ship, Bulk cargo ship or Flat rack. 3. Port: Tian jin/ Lian yun gang/ Qing dao/ Shang hai.
